938313 (SS 21 EC) - Ariens 21" Single Stage Snow Blower, Ariens AX 208cc engine (SN: 025000 & Above) Remote Control Assembly Parts Diagram

21" Single Stage Snow Blower, Ariens AX 208cc engine

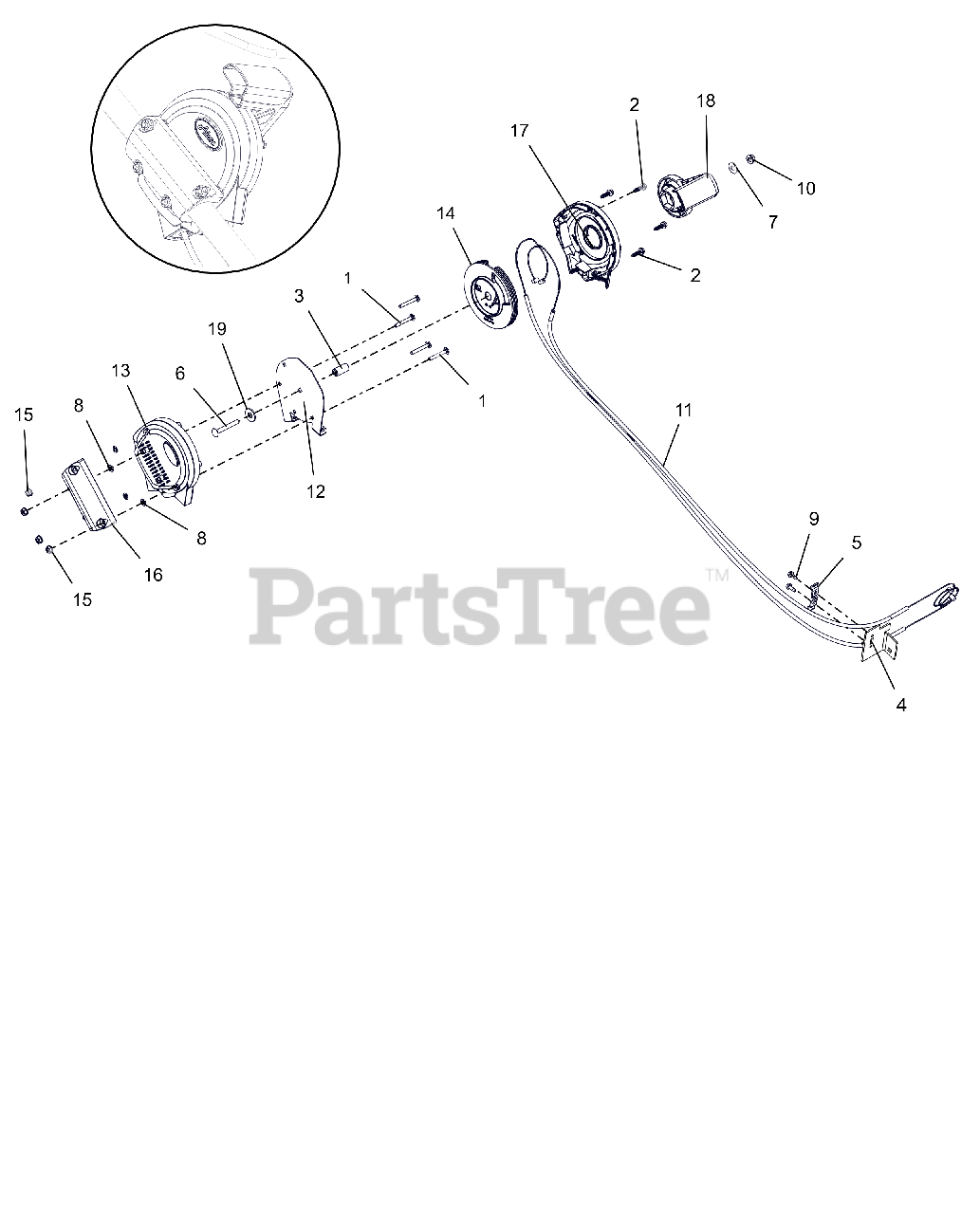

Remote Control Assembly Parts Diagram

  • Title
1

Ariens 06200215

@BLT-RDHDSQNK 10-24X1.50 G2 YZ

$2.49

$

Usually ships in 4-12 days

0

2

Ariens 06100216

SCR-TAP #12X.75 BOSS INDHXHD
(Superseded to 06100232)

$

$

Not available

3

Ariens 05501131

BSHG, SLV .265X.505X.995

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 04584951

BRKT, CABLE ANCHOR

$

$

Not available

$3.49

$

Usually ships in 4-12 days

0

6

Ariens 06222900

@BLT-RDHDSQNK .25-20X2.00 G5YZ

$1.49

$

In Stock, only 1 left!

0

7

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 06500714

NUT-PUSH-BOLT-RET #10

$1.99

$

Usually ships in 4-12 days

0

9

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

10

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06900536

CABLE, CHUTE

$15.99

$

In Stock, only 1 left!

0

12

Ariens 04636051

FRAME, REMOTE CHUTE CONTROL

$19.99

$

Usually ships in 4-12 days

0

13

Ariens 04595800

REMOTE HOUSING, RH

$5.99

$

Usually ships in 4-12 days

0

14

Ariens 04590300

PULLEY, 4.25" POLY

$

$

Not available

15

Ariens 06500712

@NUT-LK-TOP-FLG 10-24 YWZC
(Superseded to 06500932)

$3.99

$

Usually ships in 4-12 days

0

16

Ariens 04595900

REMOTE, BRKT

$9.99

$

Usually ships in 4-12 days

0

17

Ariens 04595700

REMOTE HOUSING, LH

$5.99

$

Usually ships in 4-12 days

0

18

Ariens 04595600

REMOTE HANDLE

$15.99

$

Usually ships in 4-12 days

0

19

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0
