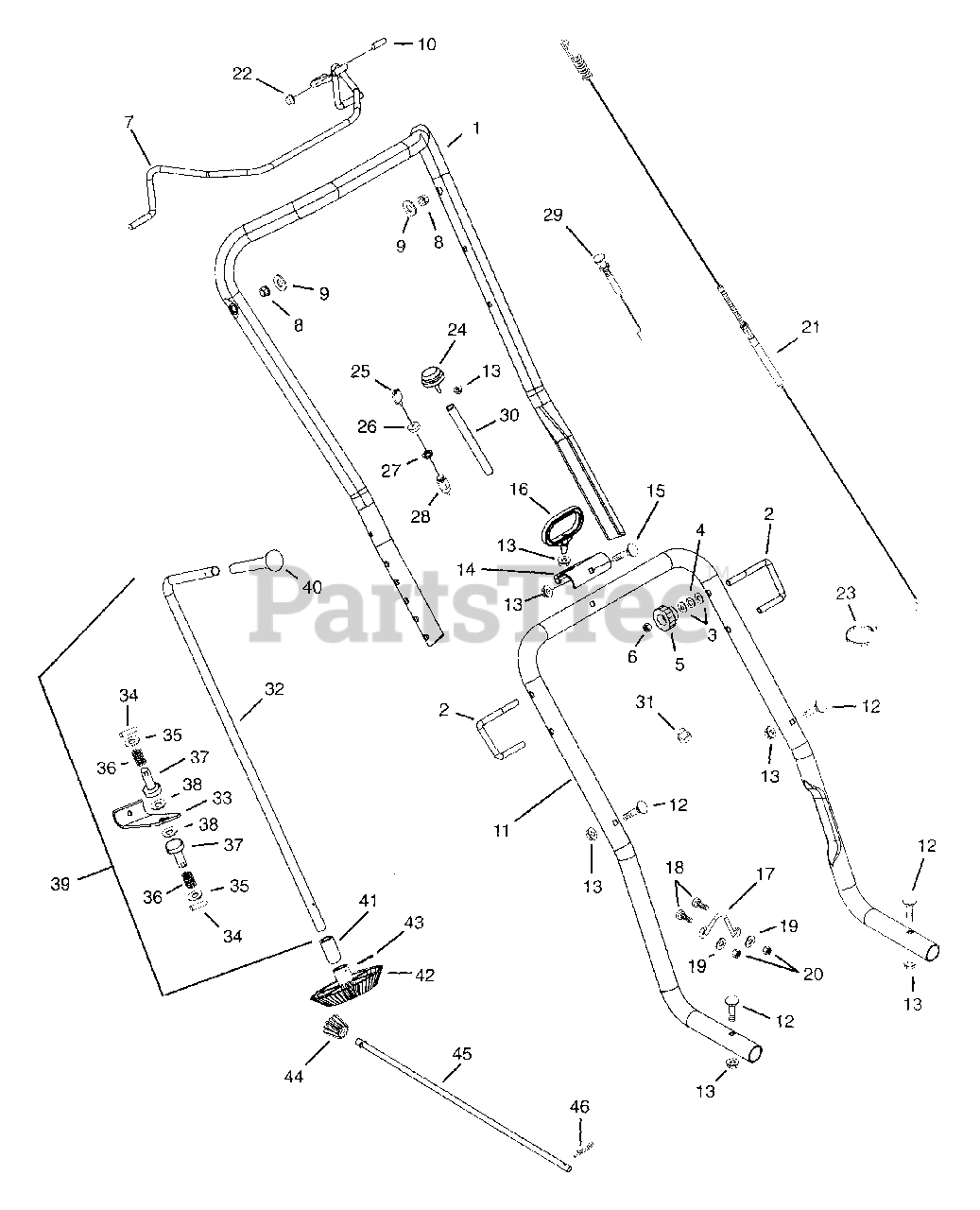

938304 (SS 322) - Ariens 22" Snow Blower, 3hp Tecumseh (SN: 000101 & Above) Handlebars And Controls Parts Diagram

22" Snow Blower, 3hp Tecumseh

Handlebars And Controls Parts Diagram

  • Title
1

Ariens 03804400

HANDLE BAR-UPPER
(Superseded to 03804451)

$

$

Not available

2

Ariens 03802700

J BOLT .31-18

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 07524500

KNOB
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

6

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 03809051

BAIL SS LF

$77.99

$

Usually ships in 4-12 days

0

8

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

9

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

11

Ariens 03802100

HANDLE BAR-LOWER
(Superseded to 03802151)

$

$

Not available

12

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

14

Ariens 03802900

BRKT-STARTER HANDLE

$

$

Not available

15

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$1.49

$

Usually ships in 4-12 days

0

16

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0

17

Ariens 03803800

GUIDE-ROPE

$43.99

$

Usually ships in 4-12 days

0

18

Ariens 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

19

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

20

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06939600

CABLE ASS,Y SS LITE
(Superseded to 06943300)

$17.99

$

In Stock, Qty 5

0

22

Ariens 07051100

NUT, PUSH .25 DIA.
(Superseded to 02215300)

$1.99

$

In Stock, Qty 16

0

23

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

24

Ariens 07518200

PRIMER ASSY

$25.99

$

Usually ships in 4-12 days

0

25

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

26

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

28

Ariens 02456500

KEY SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

29

Ariens 06929000

CONTROL-CHOKE 3 HP

Note: (010, 304)

$

$

Not available

Ariens 06937300

CONTROL-CHOKE 5 HP
(Superseded to 53802600)

Note: (011, 012, 305)

$44.99

$

Usually ships in 4-12 days

0

30

Ariens 03803300

LINE-PRIMER

$

$

Not available

31

Ariens 07527800

PLUG-HOLE .50 DIA

Note: (010, 304, 305)

$

$

Not available

32

Ariens 03803700

CRANK-CHUTE
(Superseded to 53800100)

$201.99

$

Usually ships in 4-12 days

0

33

Ariens 03802800

SUPPORT-CHUTE CRANK
(Superseded to 53800100)

Note: (011, 012)

$201.99

$

Usually ships in 4-12 days

0

34

Ariens 05800200

PIN-ROLL .125X1.38

Note: (011, 012)

$3.99

$

Usually ships in 4-12 days

0

35

Ariens 06441400

WSHR-FL-STL.754X1.125X.062YWZC
(Superseded to 06401119)

Note: (011, 012)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 08330600

SG-COMP .105X.970X2.75 WLD55.5

Note: (011, 012)

$

$

Not available

37

Ariens 03805300

SLEEVE-SPRING THRUST
(Superseded to 53800100)

Note: (011, 012)

$201.99

$

Usually ships in 4-12 days

0

38

Ariens 03805400

WSHR-FRICTION .53X1.00X.094

Note: (011, 012)

$

$

Not available

39

Ariens 53800100

CRANK-CHUTE ASSY

Note: (Contains Items 32-38, As Required)

$201.99

$

Usually ships in 4-12 days

0

40

Ariens 07514500

KNOB

Note: (011, 012)

$23.99

$

Usually ships in 4-12 days

0

41

Ariens 03803900

BSHG-SLV .510X.753X2.00

Note: (011, 012)

$

$

Not available

42

Ariens 03804300

GEAR-CRANK TRANSFER 48T

Note: (011, 012)

$

$

Not available

43

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

Note: (011, 012)

$1.99

$

Usually ships in 4-12 days

0

44

Ariens 03804200

PINION-CRANK TRANSFER 12T

Note: (011, 012)

$14.99

$

Usually ships in 4-12 days

0

45

Ariens 03803600

SHAFT CHUTE CRANK TRANSFER

Note: (011, 012)

$28.99

$

Usually ships in 4-12 days

0

46

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

Note: (011, 012)

$2.49

$

Usually ships in 4-12 days

0
