938034 (SS 21 E) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 136cc (SN: 025000 & Above) Handlebars Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 136cc

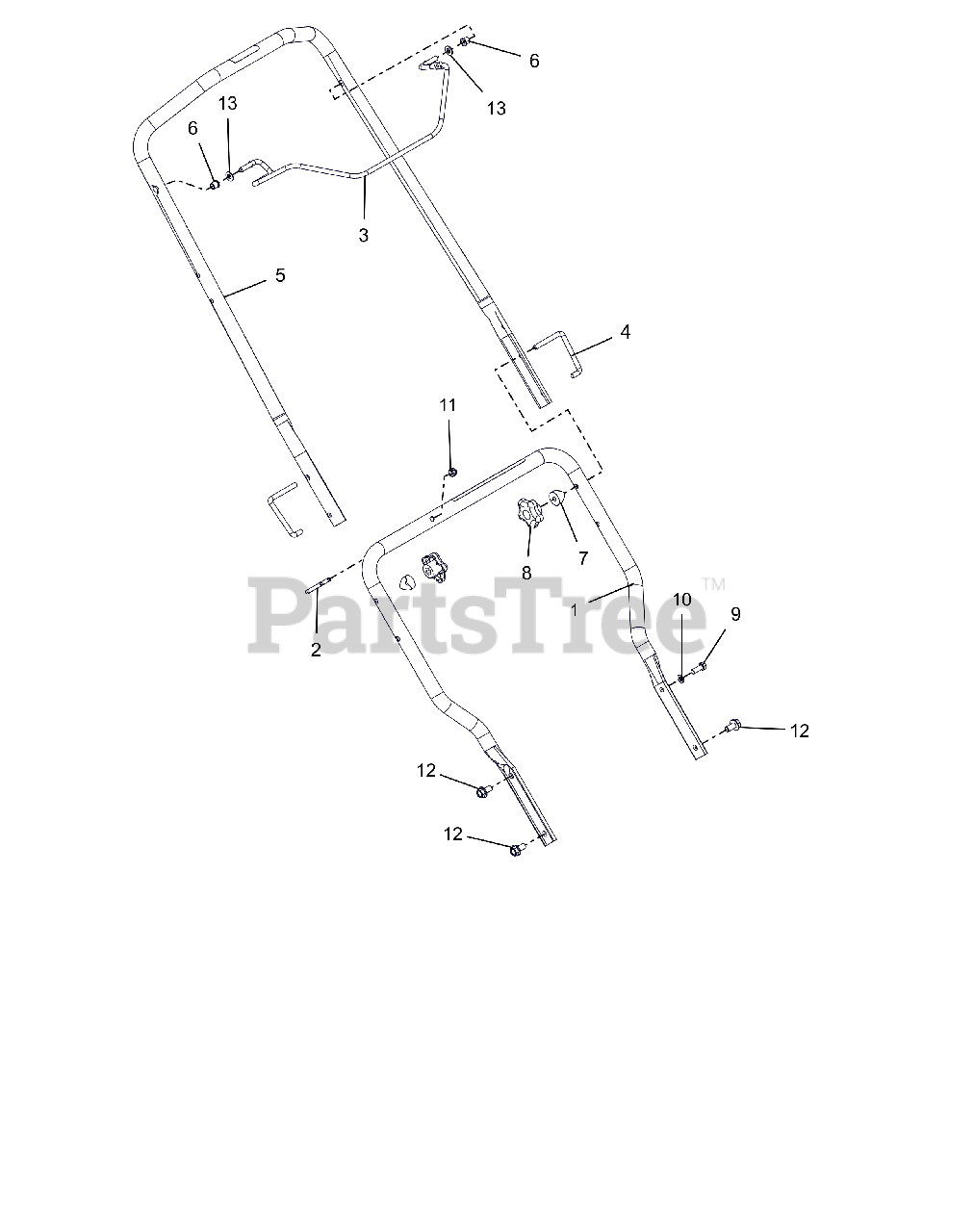

Handlebars Parts Diagram

  • Title

1

Ariens 53803600

HANDLEBAR, LOWER W/DECAL

$88.99

$

Usually ships in 4-12 days

0

2

Ariens 04522300

GUIDE, PULL CORD

$7.99

$

Usually ships in 4-12 days

0

3

Ariens 04552251

BAIL, AUGER

$25.99

$

In Stock, only 1 left!

0

4

Ariens 04552500

PIVOT, BOLT, HANDLEBAR

$17.99

$

In Stock, Qty 15

0

5

Ariens 53803500

HANDLEBAR, UPPER W/DECAL

$134.99

$

Usually ships in 4-12 days

0

6

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

7

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07500240

KNOB, STAR, 5/16-18UNC

$2.49

$

In Stock, Qty 8

0

9

Ariens 05901517

BLT-HEX .31-24X.875 GR5YZ EP80

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 07028500

BLT-SERHFWH .38-16X.75 YWZC
(Superseded to 07001824)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0
