938033 (SS 21 EC) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc (SN: 020000 - 024999) Chute - Remote Control Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc

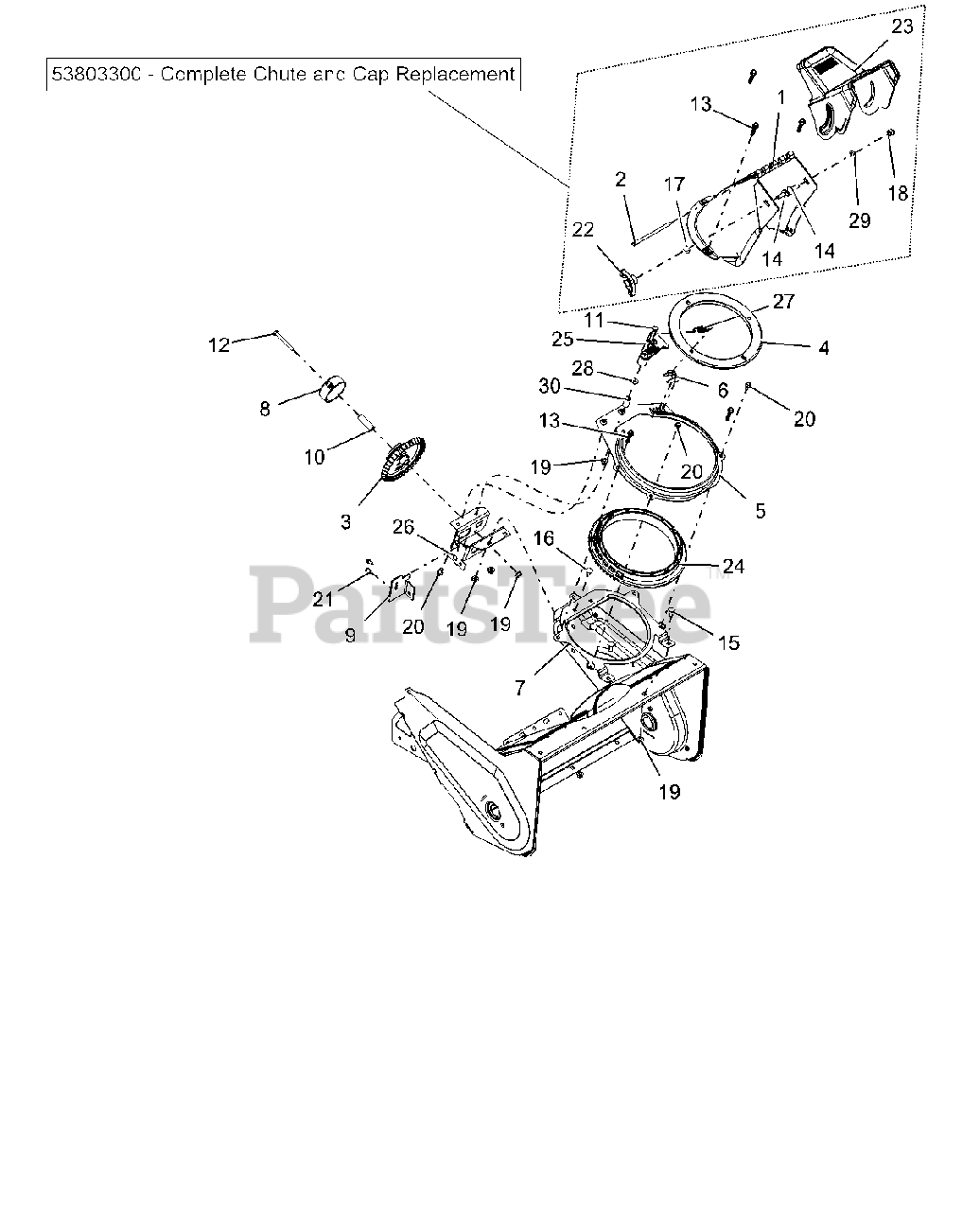

Chute - Remote Control Parts Diagram

  • Title

1

Ariens 04523900

CHUTE, SINGLE STAGE
(Superseded to 53803300)

$59.99

$

In Stock, only 2 left!

0

2

Ariens 04545600

ROD, CONNECTING, 1/4 X 4-1/2

$

$

Not available

3

Ariens 04549700

GEAR, CHUTE

$23.99

$

In Stock, only 1 left!

0

4

Ariens 04550000

GUARD, WATER

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 04552751

RING, CHUTE MOUNT - UPPER

$31.99

$

In Stock, only 1 left!

0

6

Ariens 04553751

BRKT, SPRG

$12.99

$

In Stock, only 4 left!

0

7

Ariens 04552651

RING, CHUTE MOUNT - LOWER

$

$

Not available

8

Ariens 04582000

COVER, CHUTE SPOOL

$

$

Not available

9

Ariens 04584951

BRKT, CABLE ANCHOR

$

$

Not available

10

Ariens 05501130

BSHG, SLV .265X.505X1.665

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05956700

@BLT-HEX .25-20X2.25 GR5 YWZC
(Superseded to 05901636)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06100214

SCR-TAP .25-10X1.25 HWH YWZC
(Superseded to 06100237)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06200212

BLT,RNHDRECSHNK .31-18X1.00

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06530200

@NUT-LK-NYL .312-18 YWZC
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 07415800

@SCR-TAP 10-24X.50 HWH TR YWZC
(Superseded to 07400130)

$2.49

$

In Stock, Qty 5

0

22

Ariens 07500105

KNOB,WING .31-18 UNC NYL/TALC

$3.99

$

In Stock, Qty 20+

0

23

Ariens 53803400

KIT, CAP REPLACEMENT
(Superseded to 53803300)

$59.99

$

In Stock, only 2 left!

0

24

Ariens 04549400

GEAR, CHUTE RING
(Superseded to 05150600)

$23.99

$

Usually ships in 4-12 days

0

25

Ariens 53803800

KIT, PAWL ARM REPLACEMENT

$26.99

$

Usually ships in 4-12 days

0

26

Ariens 04584851

BRKT, BEVEL GEAR

$26.99

$

Usually ships in 4-12 days

0

27

Ariens 08300532

SPRG, TENSION .052X.520X1.74

$3.49

$

Usually ships in 4-12 days

0

28

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05501131

BSHG, SLV .265X.505X.995

$3.49

$

Usually ships in 4-12 days

0

31

Ariens 53803300

KIT, CHUTE AND CAP REPLACEMENT

Note: SERVICE PART

$59.99

$

In Stock, only 2 left!

0
