938032 (SS 21 E) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc (SN: 020000 - 024999) Auger Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc

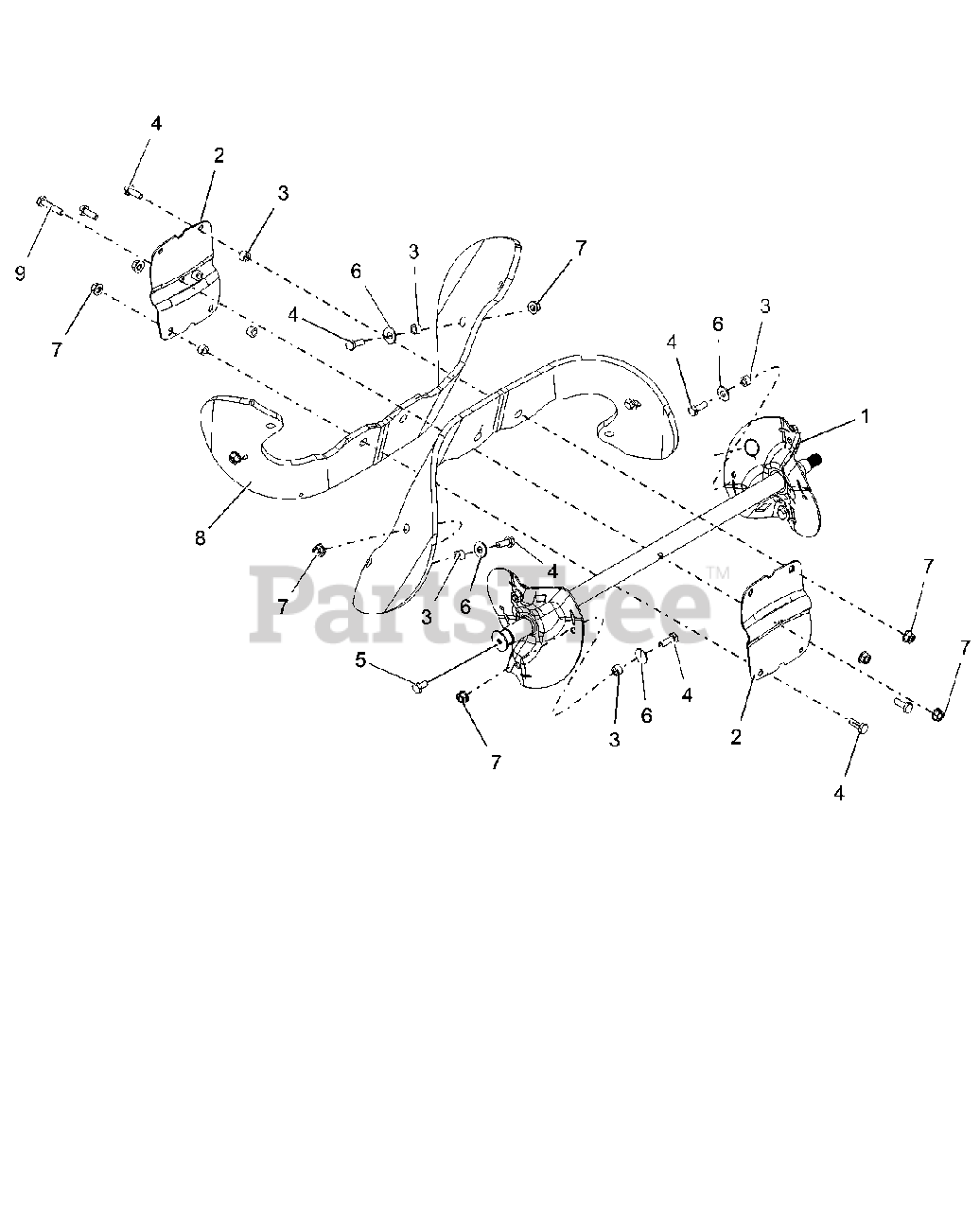

Auger Parts Diagram

  • Title
1

Ariens 04557951

ASSEMBLY, AUGER FRAME

$73.99

$

Usually ships in 4-12 days

0

2

Ariens 04763151

PLATE, CENTER AUGER

$

$

Not available

3

Ariens 05501121

BUSHING, .26 ID X .44 OD X .26

$3.99

$

In Stock, Qty 5

0

4

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05947900

@BLT-HEX .25-20X.50 GR5 YWZC
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

8

Ariens 53802900

KIT, PADDLE REPLACEMENT

$94.99

$

In Stock, only 4 left!

0

9

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0
