938032 (SS 21 E) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc (SN: 000101 - 019999) Housing Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 208cc

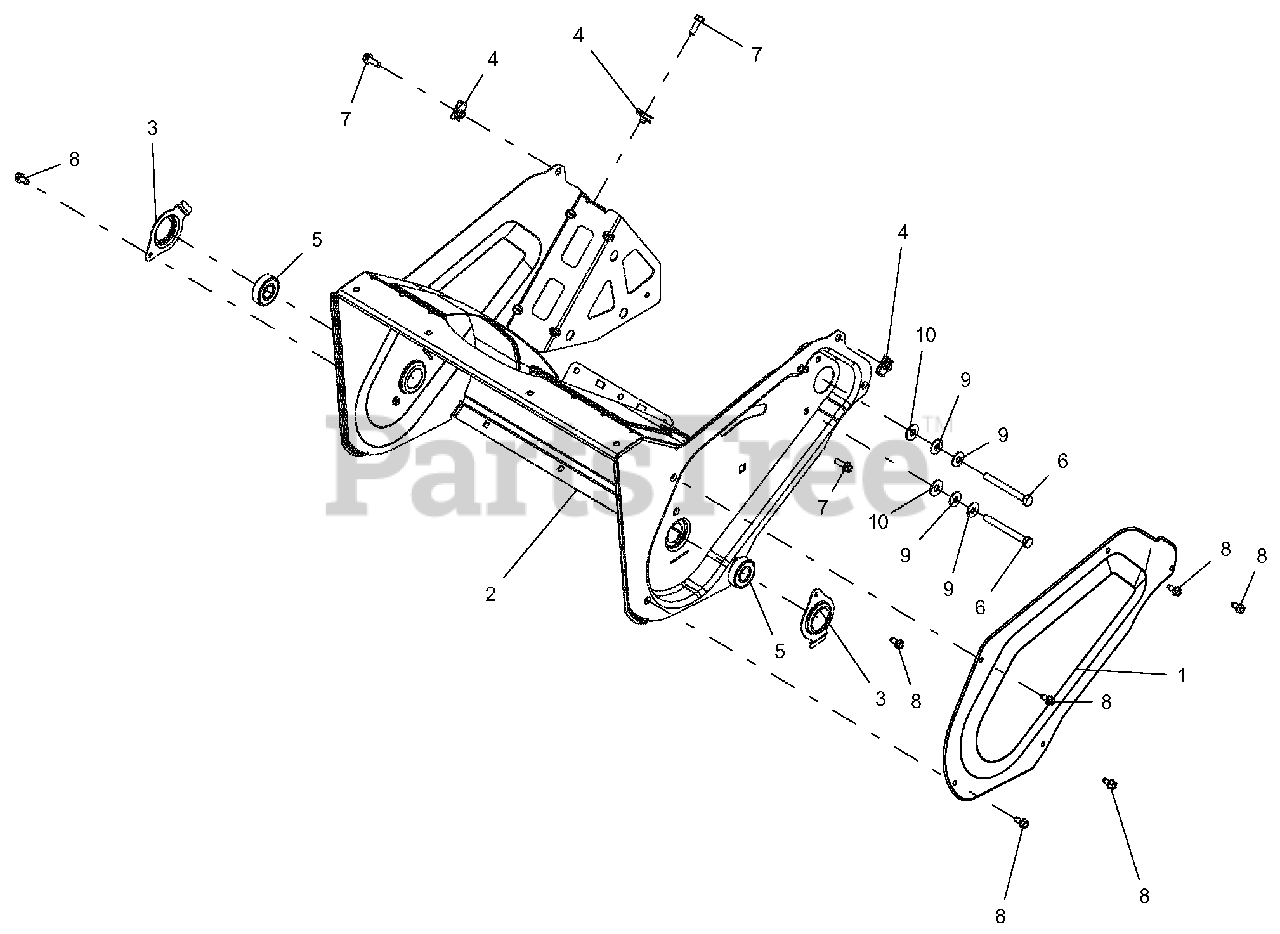

Housing Parts Diagram

  • Title
1

Ariens 04517851

COVER, BELT DRIVE HOUSING

$31.99

$

Usually ships in 4-12 days

0

2

Ariens 04522451

WLDMT, FRAME
(Superseded to 53804800)

$252.99

$

Usually ships in 4-12 days

0

3

Ariens 04524451

CAP, BRG

$10.99

$

In Stock, Qty 12

0

4

Ariens 07009000

NUT-RTNR .25-20X.56

$1.49

$

In Stock, Qty 20+

0

5

Ariens 05400711

BRG-BALL .669X1.575X.47(6203Y)

Note: (6203Y)

$20.99

$

In Stock, Qty 16

0

6

Ariens 05901526

@BLT-HEX .31-24X3.00 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

7

Ariens 05900019

BLT-HEX .25-20X.75 HWH YZ GR5
(Superseded to 05901824)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 06400929

WSHR,BLVL-.322X.813X.063

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 06400928

WSHR-HDND .375X.875X.064 YWZC

$3.99

$

Usually ships in 4-12 days

0
