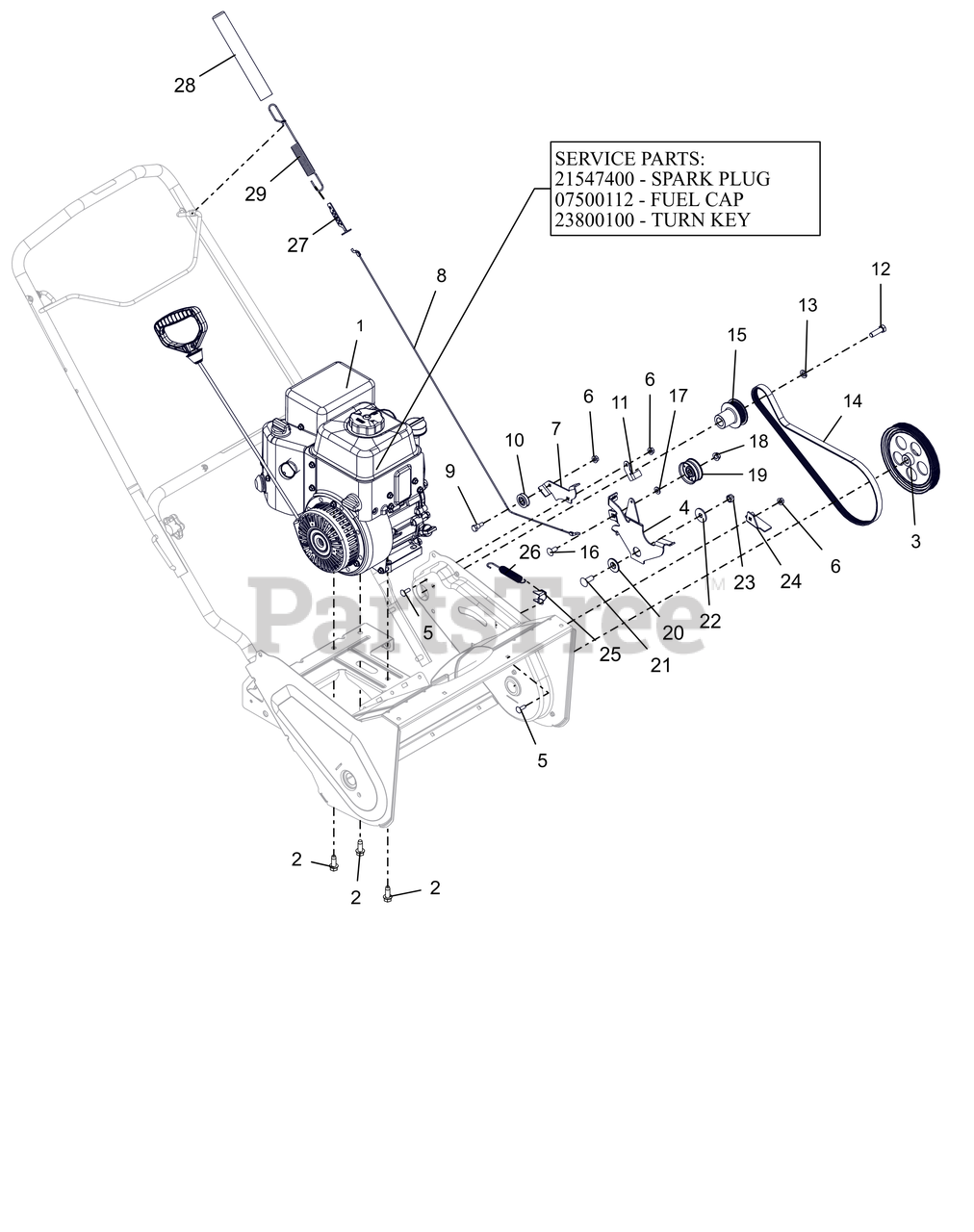

938030 (SS 21) - Ariens Path-Pro 21" Single Stage Snow Blower, Ariens AX 136cc (SN: 025000 & Above) Engine & Belt Drive Parts Diagram

Path-Pro 21" Single Stage Snow Blower, Ariens AX 136cc

Engine & Belt Drive Parts Diagram

  • Title

1

Ariens 08200832

ENGINE, ARIENS AX136 RECOIL

$

$

Not available

1

Ariens 21547400

PLUG, SPARK
(Superseded to 21563037)

Note: SERVICE PART

$3.49

$

In Stock, Qty 20+

0

1

Ariens 07500112

CAP, FUEL TANK BLACK

Note: SERVICE PART

$13.99

$

In Stock, Qty 19

0

1

Ariens 23800100

KEY, TURN LCT (2/PACKAGE)

Note: SERVICE PART

$11.99

$

In Stock, only 2 left!

0

2

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 07339500

PULLEY, POLY V-BELT J-6 W/HUB

$68.99

$

Usually ships in 4-12 days

0

4

Ariens 04684900

ARM, IDLER/BRAKE

$30.99

$

In Stock, only 2 left!

0

5

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 18

0

6

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 04540351

BRKT, CABLE PULLEY

$11.99

$

In Stock, only 1 left!

0

8

Ariens 06900533

CABLE, AUGER

$11.99

$

In Stock, Qty 11

0

9

Ariens 07000021

BOLT, SHLDR-.375X.375X.25-20
(Superseded to 07001737)

$3.99

$

In Stock, Qty 5

0

10

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 7

0

11

Ariens 04656251

FINGER, BELT

$19.99

$

Usually ships in 4-12 days

0

12

Ariens 05960700

BLT-HEX .375-24X1.25 GR5 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07200627

POLY V-BELT, J-6 RIBS

$19.99

$

In Stock, Qty 20+

0

15

Ariens 07339300

SHEAVE, ENGINE - 6J

$

$

Not available

16

Ariens 06220800

@BLT-RHDSSQNK .31-18X.75 G5YZ
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

17

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

$1.49

$

In Stock, only 2 left!

0

18

Ariens 06528700

@NUT-LK-CTR-FLG .31-18 YZ GR F
(Superseded to 06500840)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 07338500

IDLER, FLAT - 1.875"

$22.99

$

In Stock, only 4 left!

0

20

Ariens 05501126

BSHG-FLG .555X.860X.220X1.250

$3.49

$

Usually ships in 4-12 days

0

21

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

22

Ariens 06400917

@WSHR-FL-STL .406X1.25X.10 ZC
(Superseded to 06401021)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 04671351

FINGER, BELT

$19.99

$

Usually ships in 4-12 days

0

25

Ariens 04553751

BRKT, SPRG

$12.99

$

In Stock, only 4 left!

0

26

Ariens 08300611

SPRING, EXTENSION-SWIVEL

$9.49

$

In Stock, Qty 20+

0

27

Ariens 04528051

PLATE, CABLE ADJUSTMENT

$13.99

$

In Stock, only 2 left!

0

28

Ariens 04579400

COVER, CABLE SPRING

$9.49

$

In Stock, only 1 left!

0

29

Ariens 08300539

SPRG, EXT .100X.740X8.175

$9.49

$

In Stock, Qty 11

0
