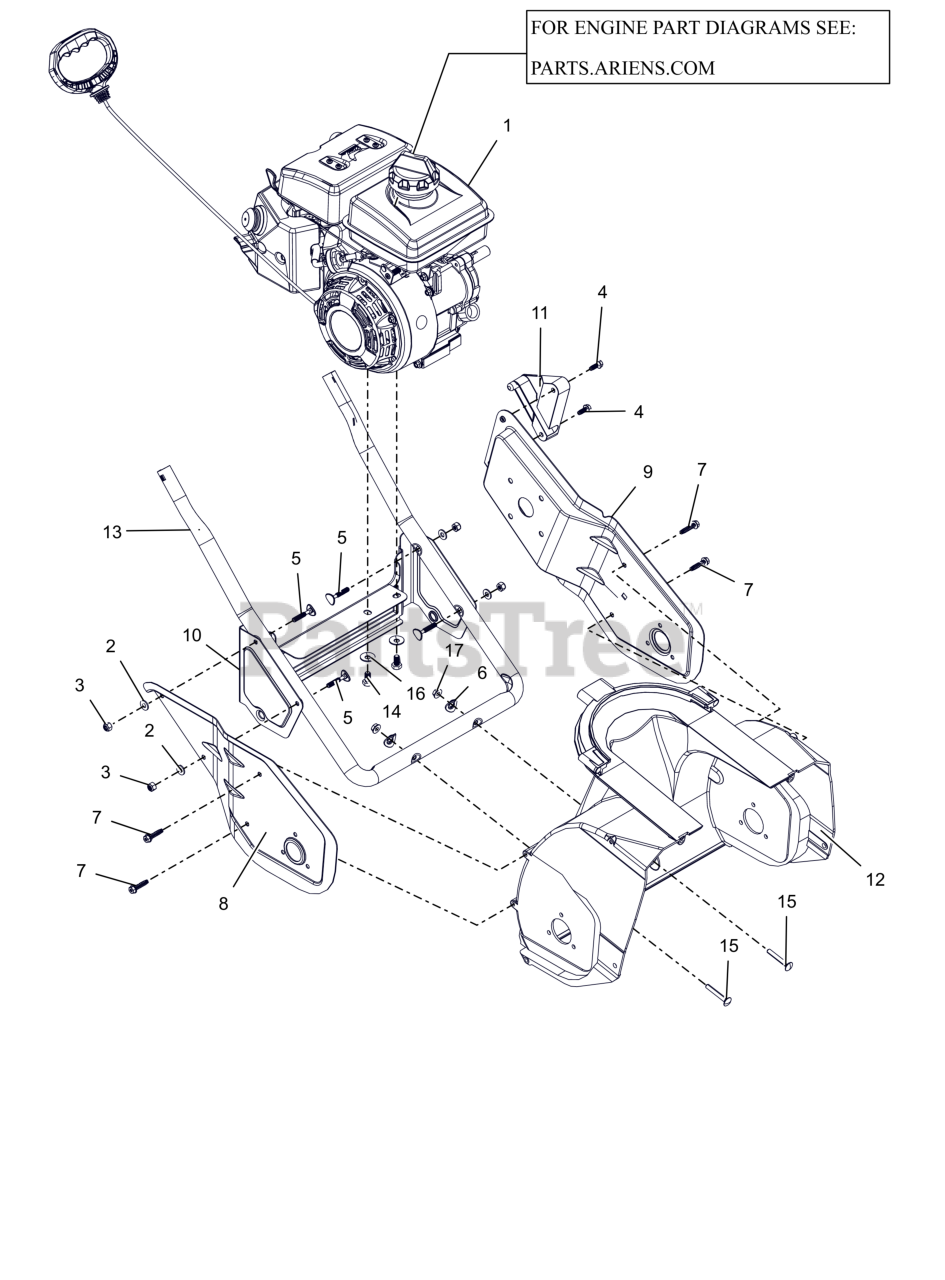

938026 (S 18) - Ariens 18" Snow Blower, Loncin 99cc (SN: 020000 & Above) Frame & Engine - Pull Start Parts Diagram

18" Snow Blower, Loncin 99cc

Frame & Engine - Pull Start Parts Diagram

  • Title

1

Ariens 08201409

ENGINE, LONCIN 99 PULL START

$452.99

$

Usually ships in 4-12 days

0

2

Ariens 06401001

WSHR,FLT .281X.625X.065 ZCC

$0.99

$

In Stock, Qty 20+

0

3

Ariens 06501008

NUT, NYLON .250 - 20 (BLACK)

$2.99

$

Usually ships in 4-12 days

0

4

Ariens 07001840

1/4-20 X 5/8 TAPTITE

$2.49

$

In Stock, only 1 left!

0

5

Ariens 07001839

HANDLEBAR, SCR - 1/4-20 - 1"DIA

$2.49

$

Usually ships in 4-12 days

0

6

Ariens 07001901

WSHR, HANDLEBAR - 5/16

$2.99

$

In Stock, Qty 12

0

7

Ariens 07001902

1/4"-10x1.12 TRI-LOBE SCREW

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 09168100

PLATE, SIDE - RH

$34.99

$

Usually ships in 4-12 days

0

9

Ariens 09168200

PLATE, SIDE - LH

$

$

Not available

10

Ariens 09168400

WHEEL, BRKT

$23.99

$

Usually ships in 4-12 days

0

11

Ariens 09168700

BRKT, FENDER SUPPORT

$7.49

$

Usually ships in 4-12 days

0

12

Ariens 09169000

HOUSING, LOWER

$129.99

$

Usually ships in 4-12 days

0

13

Ariens 09169100

LOWER, HANDLEBAR

$29.99

$

Usually ships in 4-12 days

0

14

Ariens 07001906

SCR, CAP - M8X1.25 H6 THREAD

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 06200440

BLT, RDHDSQSHK .25-20X1.75 (BLACK)

$2.49

$

Usually ships in 4-12 days

0

16

Ariens 07001908

WSHR, BEVEL SPRING LOCK

$2.99

$

Usually ships in 4-12 days

0

17

Ariens 06500821

NUT-LK-CTR-FLG .25-20 ZC120

$0.99

$

In Stock, Qty 20+

0
