938025 (SSRC) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 004837 & Above) Chute Remote Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

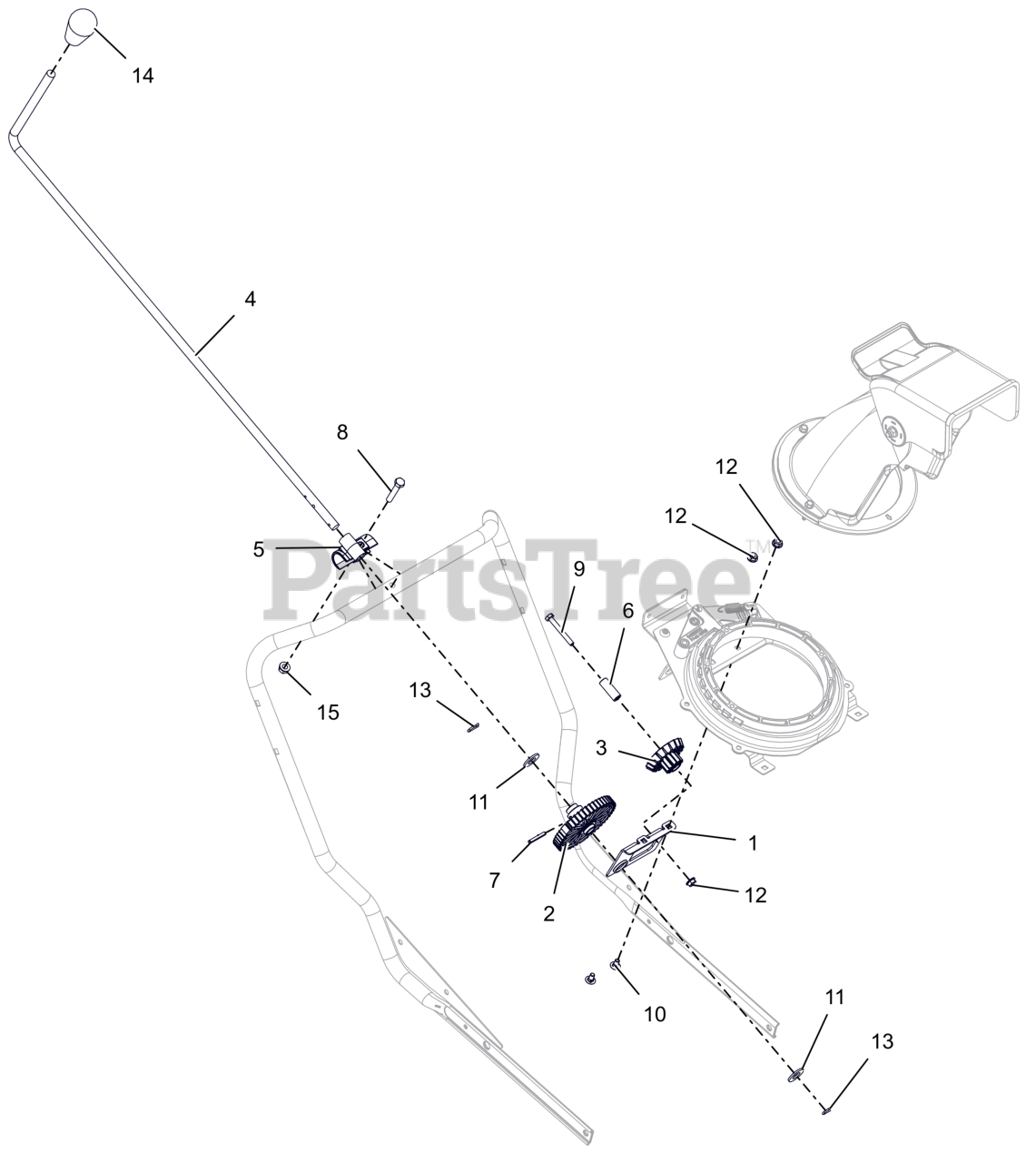

Chute Remote Parts Diagram

  • Title
1

Ariens 05123051

BRKT, CHUTE ROTATION - FRONT

$7.99

$

Usually ships in 4-12 days

0

2

Ariens 05124000

GEAR, ROTATION - REMOTE SPUR

$19.99

$

Usually ships in 4-12 days

0

3

Ariens 05124100

GEAR, ROTATION - REMOTE COMBO

$

$

Not available

4

Ariens 05134600

ROD, ROTATION - CHUTE

$39.99

$

Usually ships in 4-12 days

0

5

Ariens 05134700

ROD, ROTATION - HOLDER

$

$

Not available

6

Ariens 05501321

BSHG,SLV - .265 X .505 X 1.341

$4.99

$

Usually ships in 4-12 days

0

7

Ariens 05800300

PIN-ROLL .188X1.25

$0.99

$

In Stock, Qty 20+

0

8

Ariens 05901804

BLT, HEX .31-18X1.75 G5 ZCC

$2.99

$

In Stock, Qty 8

0

9

Ariens 05901740

BLT, HEX .25-20X2.00 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06200306

BLT, RHSN .25-20X.500 G5 ZCC

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06401015

WSHR,FLT .531X1.062X.095 ZCC

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07500420

KNOB,SOFT-TEARDROP,PUSH-ON BLK

$16.99

$

Usually ships in 4-12 days

0

15

Ariens 06500904

NUT-LK-TOP-FLG .312-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0
