938024 (SSR) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 006528 & Above) Frame Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

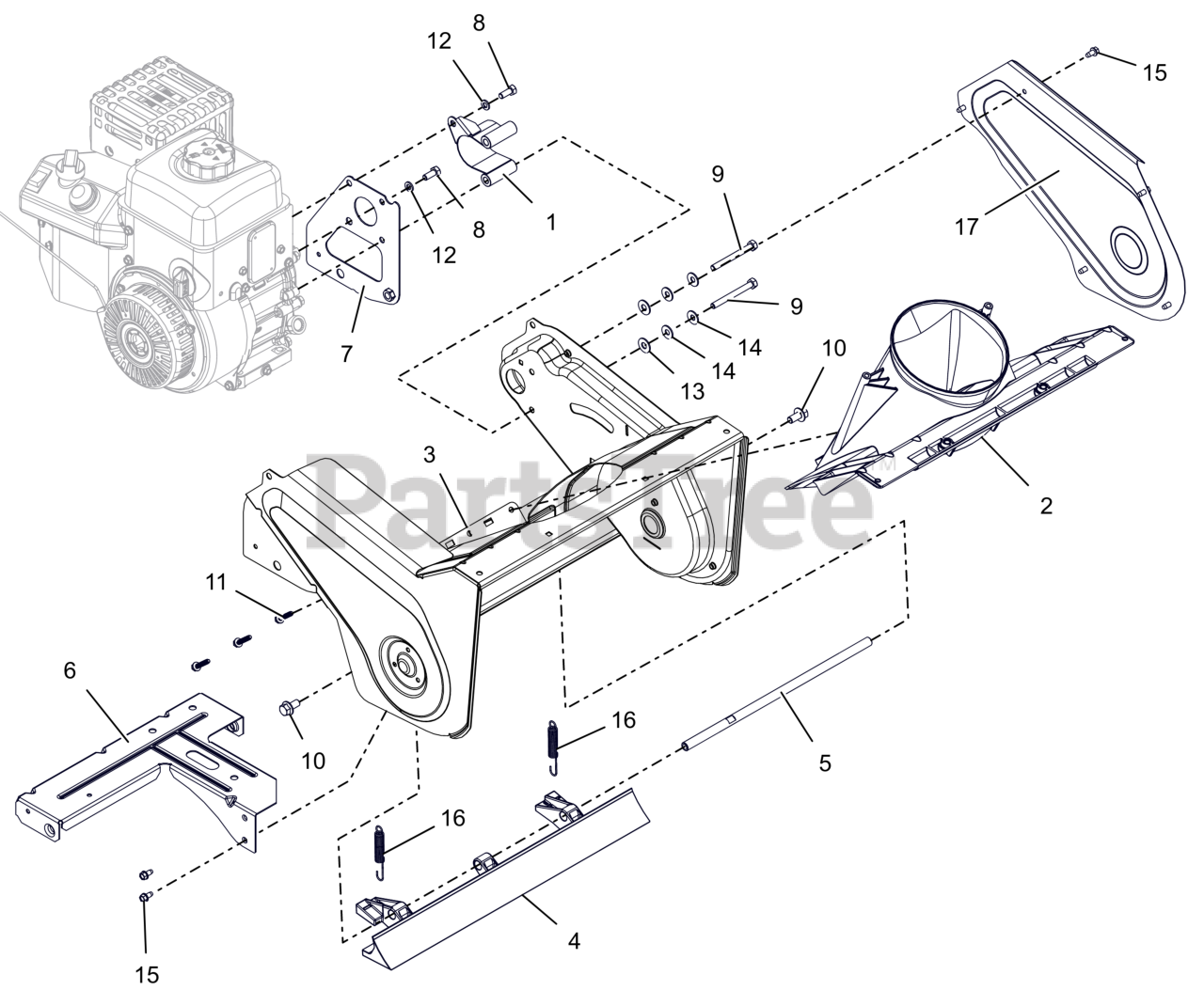

Frame Parts Diagram

  • Title

1

Ariens 04522851

FRAME, SPCR PTO
(Superseded to 09395951)

$

$

Not available

2

Ariens 04523500

NECK, DISCHARGE

$47.99

$

Usually ships in 4-12 days

0

3

Ariens 05119659

WLDMT, HOUSING - CSS

$193.99

$

Usually ships in 4-12 days

0

4

Ariens 05121200

BLADE, SCRAPER - PIVOTING

$22.99

$

In Stock, only 4 left!

0

5

Ariens 05121300

ROD, PIVOT - SCRAPER

$30.99

$

Usually ships in 4-12 days

0

6

Ariens 05134859

FRAME, ENGINE T-PLATE

$45.99

$

Usually ships in 4-12 days

0

7

Ariens 05142659

FRAME, DRIVE BRACKET - WLMT

$26.99

$

Usually ships in 4-12 days

0

8

Ariens 05902011

BLT, HEX .31-24X.750 G5ZCCEP30

$2.49

$

Usually ships in 4-12 days

0

9

Ariens 05902012

BLT, HEX .31-24X3.00 G5 ZCC

$2.99

$

Usually ships in 4-12 days

0

10

Ariens 07001824

BLT

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06100237

SCR,PLASTITE .25-10X1.25 ZCC

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06300119

WSHR,LK-REG .312X.078 ZCC

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06401138

WSHR, HDND .375X.875X.064 ZCC

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 06400929

WSHR,BLVL-.322X.813X.063

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 07400122

SCR-TAP .25-20X.50 HWH ZCC

$0.99

$

In Stock, Qty 20+

0

16

Ariens 08300712

SPRING,EXT-.063 X .500 X 3.500

$10.99

$

In Stock, only 2 left!

0

17

Ariens 05122159

COVER, BELT DRIVE - HOUSING

$39.99

$

Usually ships in 4-12 days

0
