938024 (SSR) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 006528 & Above) Engine And Belt Drive Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

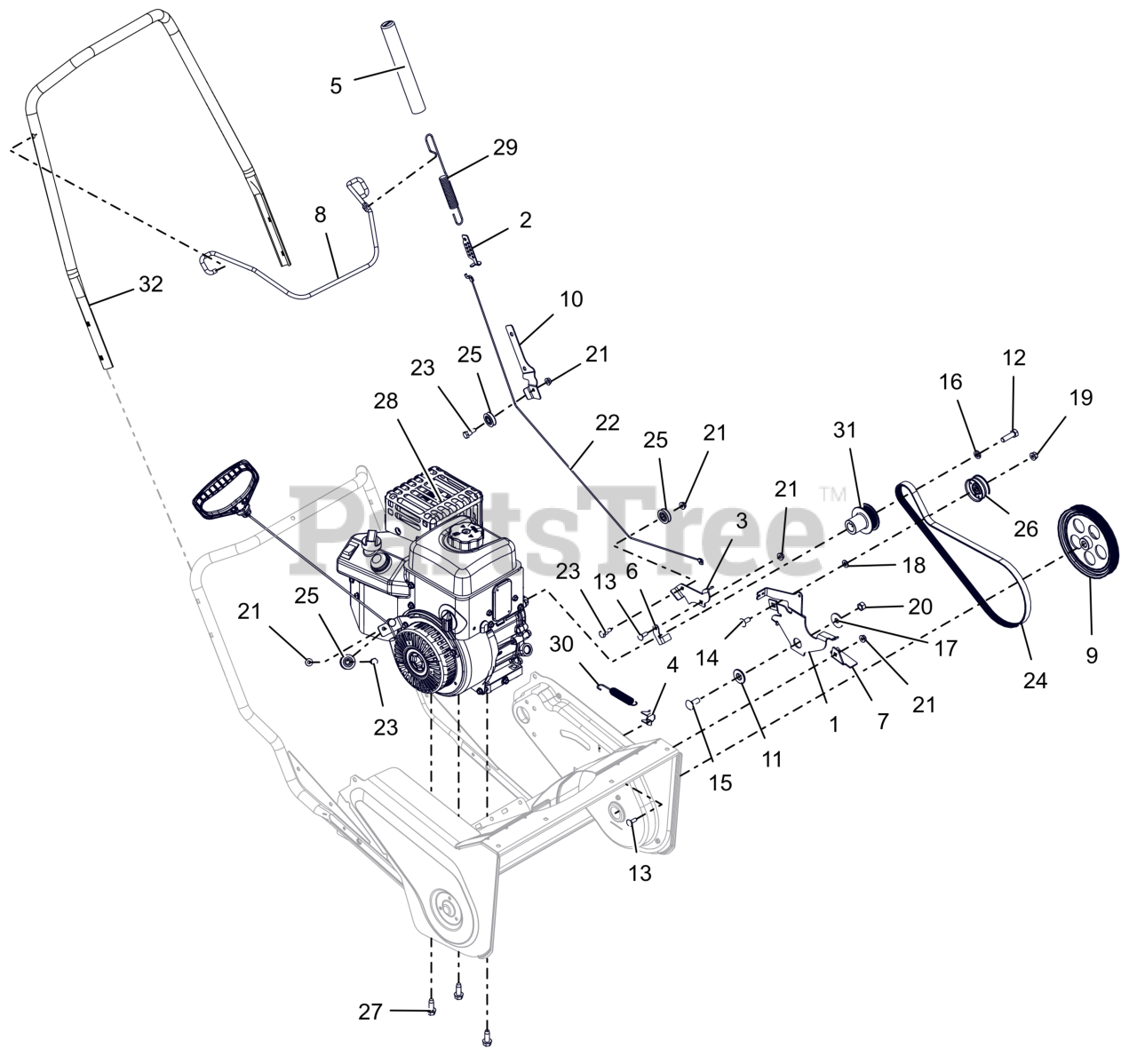

Engine And Belt Drive Parts Diagram

  • Title

1

Ariens 05286000

ARM, IDLER /BRAKE

$

$

Not available

2

Ariens 04528051

PLATE, CABLE ADJUSTMENT

$13.99

$

In Stock, only 1 left!

0

3

Ariens 04540351

BRKT, CABLE PULLEY

$11.99

$

In Stock, only 1 left!

0

4

Ariens 04553751

BRKT, SPRG

$12.99

$

In Stock, only 2 left!

0

5

Ariens 04579400

COVER, CABLE SPRING

$9.49

$

Usually ships in 4-12 days

0

6

Ariens 04656251

FINGER, BELT

$19.99

$

Usually ships in 4-12 days

0

7

Ariens 04671351

FINGER, BELT

$19.99

$

Usually ships in 4-12 days

0

8

Ariens 05287251

BAIL, AUGER (BLACK)

$

$

Not available

9

Ariens 07339500

PULLEY, POLY V-BELT J-6 W/HUB

$68.99

$

Usually ships in 4-12 days

0

10

Ariens 05287159

MOUNT, CABLE PULLEY (ORANGE)

$37.99

$

Usually ships in 4-12 days

0

11

Ariens 05501126

BSHG-FLG .555X.860X.220X1.250

$3.49

$

Usually ships in 4-12 days

0

12

Ariens 05902016

BLT, HEX .38-24X1.25 G5 ZCC

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 06200307

BLT, RHSN .25-20X.750 G5 ZCC

$0.99

$

In Stock, Qty 13

0

14

Ariens 06200309

BLT, RHSSN.31-18X.750 G5 ZCC

$2.49

$

In Stock, Qty 20+

0

15

Ariens 06200313

BLT, RHSN .38-16X1.00 G5 ZCC

$2.49

$

In Stock, Qty 10

0

16

Ariens 06300116

WSHR,LK-REG .375X.094 ZCC

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06401021

WSHR FL STL .406X1.25X.10ZC120

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06401002

WSHR,FLT .323X.625X.062 ZCC

$1.49

$

In Stock, only 2 left!

0

19

Ariens 06500840

NUT,LK-CTR-FLG .31-18 GF ZCC

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06500825

NUT-LK-CTR .38-16 ZC120

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06500903

NUT-LK-TOP-FLG .250-20 GF ZCC

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06900533

CABLE, AUGER

$11.99

$

In Stock, Qty 10

0

23

Ariens 07001737

BOLT, SHLDR -.375 X .375 X .25-20

$3.99

$

In Stock, Qty 5

0

24

Ariens 07200627

POLY V-BELT, J-6 RIBS

$19.99

$

In Stock, Qty 20+

0

25

Ariens 07300012

PULLEY, CABLE

$4.99

$

In Stock, Qty 5

0

26

Ariens 07338500

IDLER, FLAT - 1.875"

$22.99

$

In Stock, only 3 left!

0

27

Ariens 07417500

SCR-TAP .38-16X1.00 HWH TR ZCC

$3.99

$

In Stock, only 2 left!

0

28

Ariens 08201413

Engine, AX208 LW RECOIL
(Superseded to 20002001)

$

$

Not available

29

Ariens 08300539

SPRG, EXT .100X.740X8.175

$9.49

$

In Stock, Qty 11

0

30

Ariens 08300611

SPRING, EXTENSION-SWIVEL

$9.49

$

In Stock, Qty 20+

0

31

Ariens 07339300

SHEAVE, ENGINE - 6J

$

$

Not available

32

Ariens 53804200

HANDLEBAR, UPPPER - W/DECAL

$108.99

$

Usually ships in 4-12 days

0
