938024 (SSR) - Ariens Professional 21" Snow Blower, Ariens AX 208cc engine (SN: 000101 - 004009) Auger Parts Diagram

Professional 21" Snow Blower, Ariens AX 208cc engine

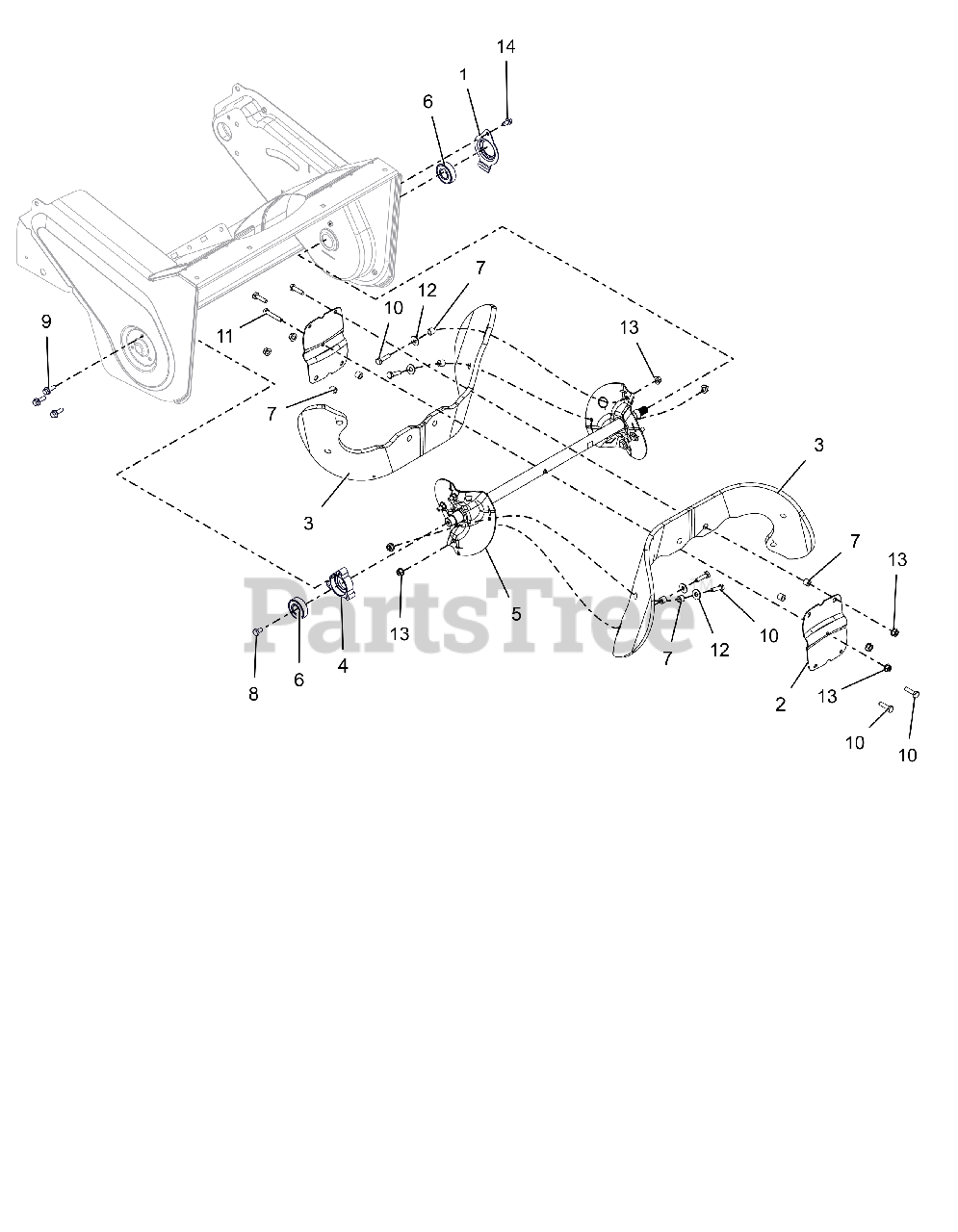

Auger Parts Diagram

  • Title

1

Ariens 04524451

CAP, BRG

$10.99

$

In Stock, Qty 8

0

2

Ariens 04763151

PLATE, CENTER AUGER

$18.99

$

Usually ships in 4-12 days

0

3

Ariens 05189600

FLIGHTING, AUGER
(Superseded to 09181900)

$56.99

$

In Stock, Qty 14

0

3

Ariens 73801200

KIT, HIGH WEAR PADDLES

Note: Component Service Kit

$111.99

$

In Stock, only 1 left!

0

4

Ariens 05122200

HOLDER, BEARING - PM

$19.99

$

Usually ships in 4-12 days

0

5

Ariens 05132451

AUGER, WELDMENT

$87.99

$

Usually ships in 4-12 days

0

6

Ariens 05400711

BRG-BALL .669X1.575X.47(6203Y)

$20.99

$

In Stock, Qty 16

0

7

Ariens 05501228

BUSHING,.26 ID X .44 OD X .375

$3.99

$

Usually ships in 4-12 days

0

8

Ariens 05900008

BLT-HEX .25-20X.50 GR5 EPOXY
(Superseded to 05901918)

$1.49

$

In Stock, only 1 left!

0

9

Ariens 05901731

BLT,HEX-FLG .25-20X.75 G5 BFP

$1.49

$

Usually ships in 4-12 days

0

10

Ariens 05947700

@BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

11

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 16

0

12

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06543500

@NUT-LK-TOP-FLG .25-20 YWZC
(Superseded to 06500903)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 07400034

SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0
