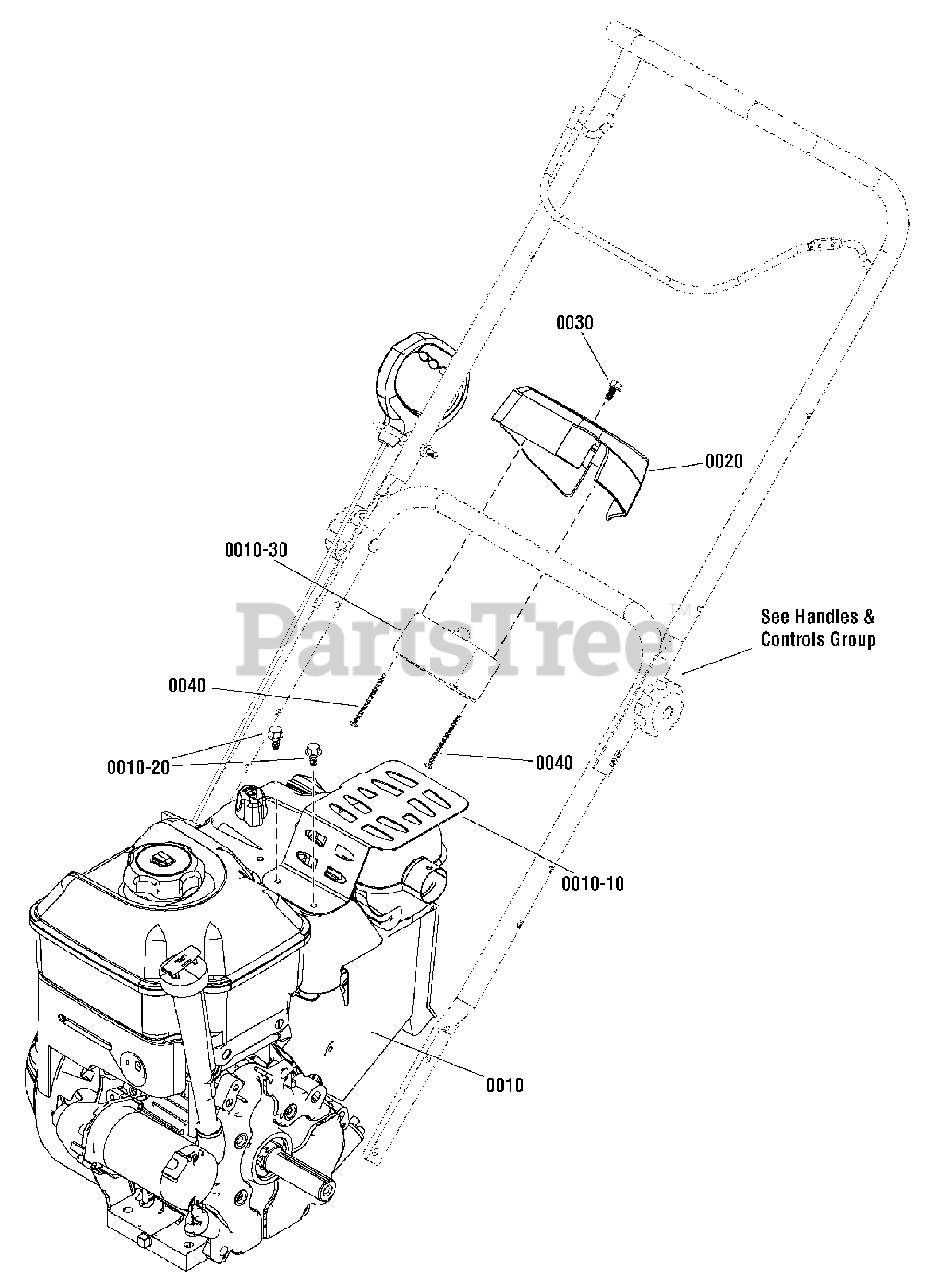

938022 (SS 22 E) - Ariens Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton (SN: 000101 & Above) Engine Parts Diagram

Sno-Tek 22" Snow Blower, 8hp Briggs & Stratton

Engine Parts Diagram

  • Title
0010

Ariens 20200106

* ENGINE, Briggs & Stratton, 8

Note: (Engine Model: 12A103-0148-E8)

$

$

Not available

0010-10

Ariens 20200102

GUARD, Muffler

$

$

Not available

0010-20

Ariens 20200101

SCREW, Muffler Guard, Hex Wash

$3.99

$

Usually ships in 4-12 days

0

0010-30

* STARTER, 110V

$

$

Not available

0020

Ariens 20200140

HOUSING, Starter, 110V

$

$

Not available

0030

Ariens 20200146

SCREW, 1/4-20 X .500

$

$

Not available

0040

Ariens 20200147

SCREW, Pan Head Phillips, Plas

$

$

Not available
