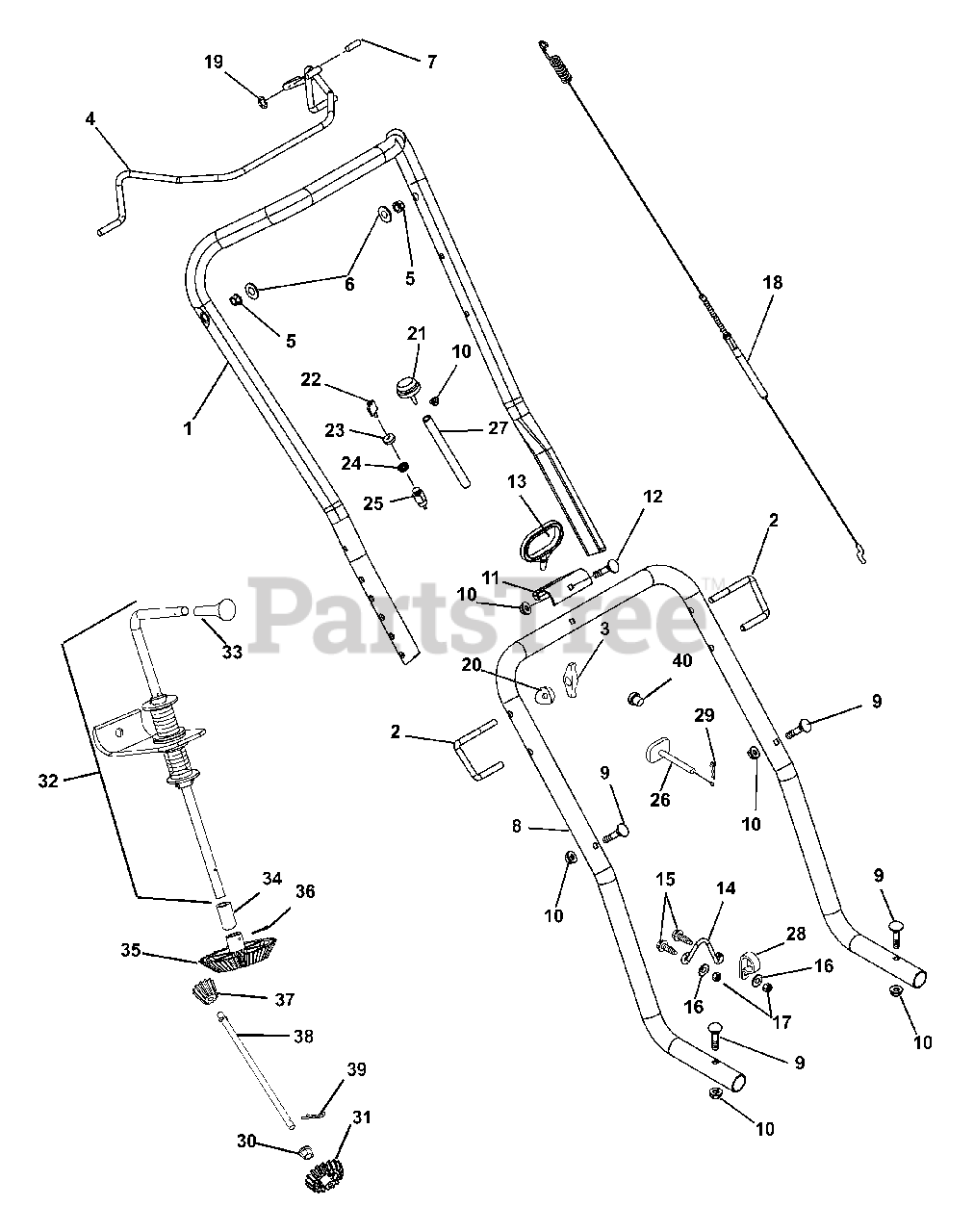

938018 (SS 722) - Ariens 22" Snow Blower, 7hp Tecumseh (SN: 009001 & Above) Handlebars And Controls Parts Diagram

22" Snow Blower, 7hp Tecumseh

Handlebars And Controls Parts Diagram

  • Title

1

Ariens 03804451

HANDLEBAR, UPPER

$

$

Not available

2

Ariens 03802700

J BOLT .31-18

$28.99

$

Usually ships in 4-12 days

0

3

Ariens 07531700

KNOB - WING .312-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

4

Ariens 03809051

BAIL SS LF

$77.99

$

Usually ships in 4-12 days

0

5

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

$3.99

$

In Stock, Qty 20+

0

6

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

8

Ariens 00439951

HANDLEBAR, LOWER, SS522/SS722

$

$

Not available

9

Ariens 06220000

BLT-RDHDSQNK .25-20X1.75 G5YZ
(Superseded to 06200404)

$2.49

$

Usually ships in 4-12 days

0

10

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

11

Ariens 03802900

BRKT-STARTER HANDLE

$

$

Not available

12

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0

14

Ariens 00447500

ROPE GUIDE

$

$

Not available

15

Ariens 06118500

@SCR-MCH 10-24X1.00 HWH YWZC
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

16

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

$0.99

$

Usually ships in 4-12 days

0

17

Ariens 06536000

@NUT-LK-NYL 10-24 W/INSRT YWZC
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06943300

CABLE-CLUTCH CONTROL

$17.99

$

In Stock, Qty 5

0

19

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 19

0

20

Ariens 07500005

SPACER, HANDLEBAR

$1.49

$

In Stock, Qty 20+

0

21

Ariens 07518200

PRIMER ASSY

$25.99

$

Usually ships in 4-12 days

0

22

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

23

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

25

Ariens 52406900

SWITCH ASSEMBLY

$39.99

$

Usually ships in 4-12 days

0

26

Ariens 06949200

CONTROL, CHOKE 5&7HP TEC 2CYCL

$20.99

$

Usually ships in 4-12 days

0

27

Ariens 03803300

LINE-PRIMER

$

$

Not available

28

Ariens 00539800

CLAMP, NYLON .5 HOSE

$

$

Not available

29

Ariens 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 05514500

BSHG-FLG .325X.444X.440X.560

Note: (017, 018, 117, 307)

$3.99

$

In Stock, Qty 20+

0

31

Ariens 03804100

PINION-DISCHARGE CHUTE 18T

Note: (017, 018, 117, 307)

$20.99

$

Usually ships in 4-12 days

0

32

Ariens 53800100

CRANK-CHUTE ASSY

Note: (017, 018, 117, 307)

$201.99

$

Usually ships in 4-12 days

0

33

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

34

Ariens 03803900

BSHG-SLV .510X.753X2.00

Note: (017, 018, 117, 307)

$

$

Not available

35

Ariens 03804300

GEAR-CRANK TRANSFER 48T

Note: (017, 018, 117, 307)

$

$

Not available

36

Ariens 06701100

@PIN-CTR .16X1.25 EXTPRSQCT YZ

Note: (017, 018, 117, 307)

$1.99

$

Usually ships in 4-12 days

0

37

Ariens 03804200

PINION-CRANK TRANSFER 12T

Note: (017, 018, 117, 307)

$14.99

$

Usually ships in 4-12 days

0

38

Ariens 03803600

SHAFT CHUTE CRANK TRANSFER

Note: (017, 018, 11, 307)

$28.99

$

Usually ships in 4-12 days

0

39

Ariens 06700003

HAIRPIN, INTERNAL .08X.32X1.96

Note: (017, 018, 117, 307)

$5.99

$

Usually ships in 4-12 days

0

40

Ariens 07527800

PLUG-HOLE .50 DIA

Note: (019)

$

$

Not available
