938016 (SS 522 E) - Ariens 22" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Engine And Drive Parts Diagram

22" Snow Blower, 5hp Tecumseh

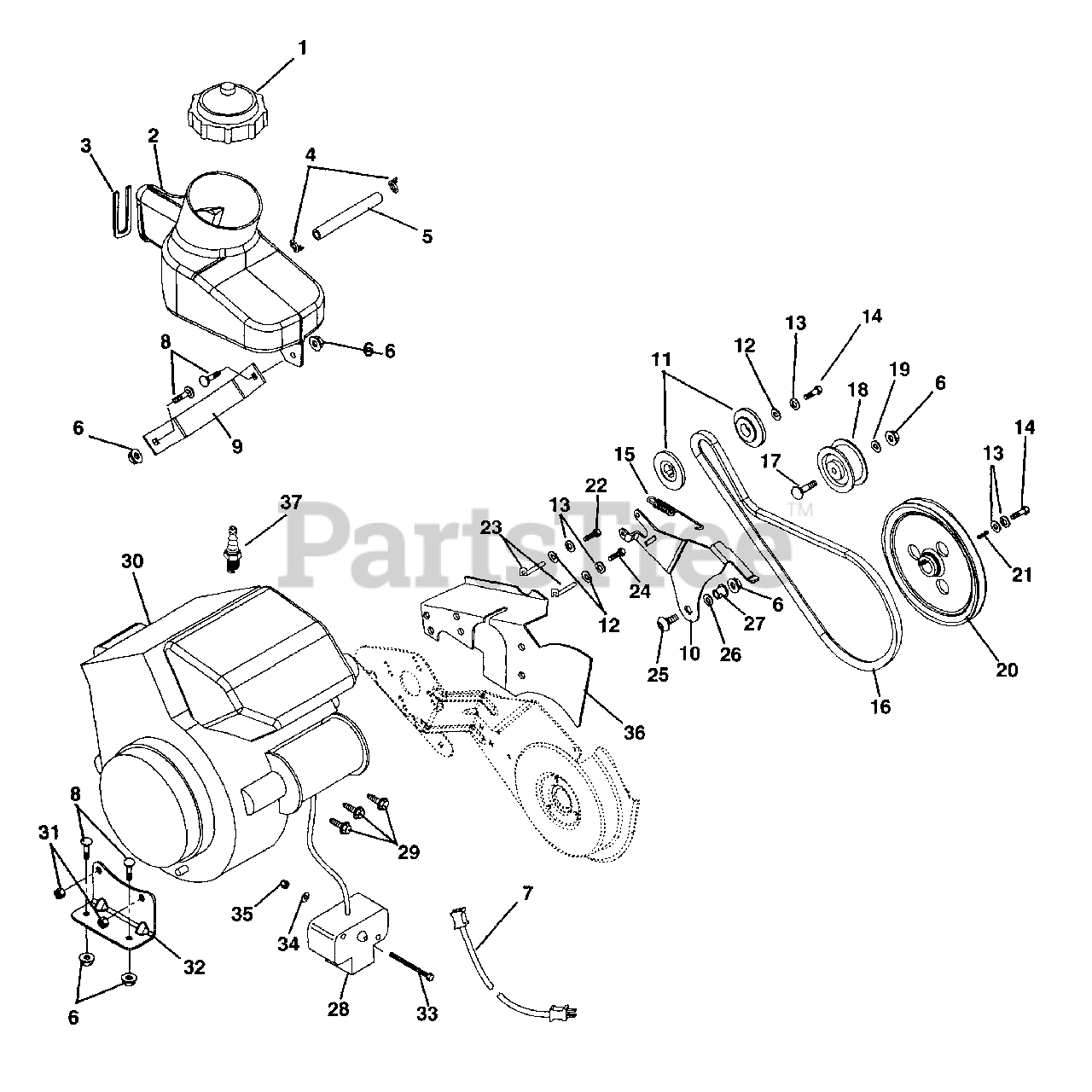

Engine And Drive Parts Diagram

  • Title

1

Ariens 07525300

CAP-FUEL

$28.99

$

Usually ships in 4-12 days

0

2

Ariens 03811600

TANK, FUEL
(Superseded to 53802500)

$

$

Not available

3

Ariens 03807800

TAPE FOAM,NEOPRENE

$

$

Not available

4

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 15

0

5

Ariens 03807900

GAS LINE 1/4" I.D. X 9.5

Note: (Models 016, 305)

$

$

Not available

5

Ariens 03328000

GAS LINE HOSE 1/4 X 11"

Note: (Model 015)

$

$

Not available

6

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07524800

CORD, EXTENSION

Note: (Model 016)

$

$

Not available

8

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03802600

BRKT-FUEL TANK MTG

$

$

Not available

10

Ariens 03810800

ARM-IDLER

$15.99

$

Usually ships in 4-12 days

0

11

Ariens 03801200

PLY-DRIVE 3LX 1.80 DIA

Note: (Models 016, 305)

$

$

Not available

11

Ariens 03801100

PLY-DRIVE 3LX 1.52 DIA

Note: (Model 015)

$

$

Not available

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (Models 016, 305)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

Note: (Model 015)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05947300

BLT-HEX .31-24X.75 YWZC GR5
(Superseded to 05902014)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 08334000

SPRING, EXTENSION

$15.99

$

In Stock, Qty 6

0

16

Ariens 07236300

V-BELT, 3L-RAW EDGE

Note: (Models 016, 305)

$25.99

$

In Stock, Qty 9

0

16

Ariens 07236400

V-BELT, 3L-RAW EDGE

Note: (Model 015)

$38.99

$

Usually ships in 4-12 days

0

17

Ariens 06219700

@BLT-RDHDSQNK .25-20X1.25 G5YZ

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 07321900

IDLER-FLAT 1.75 X .27 DAYCO

$

$

Not available

19

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07325900

PLY-V 5.50X.671 W/KEY "A"

$68.99

$

Usually ships in 4-12 days

0

21

Ariens 06606100

KEY-SQ .188X.75X.188

$3.99

$

In Stock, Qty 11

0

22

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (Models 016, 305)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

Note: (Model 015)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03805500

FINGER-BELT

Note: (Models 016, 305)

$38.99

$

Usually ships in 4-12 days

0

23

Ariens 03805500

FINGER-BELT

Note: (Model 015)

$38.99

$

Usually ships in 4-12 days

0

24

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (Models 016, 305)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 05946900

@BLT-HEX .31-18X1.00 GR5 YWZC
(Superseded to 05901701)

Note: (Model 015)

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

26

Ariens 06436000

WSHR-FL-STL .505X.875X.024 YWZ

$2.49

$

In Stock, only 4 left!

0

27

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

28

Ariens 03803500

MOTOR-STARTING

Note: (Model 016)

$299.99

$

In Stock, only 1 left!

0

29

Ariens 07029500

SCR-HFWH-TX-SEMS .25-20X.49 TE

Note: (Model 016)

$

$

Not available

30

Ariens 08249100

ENGINE, TH139SA 5HP 2CY TEC

Note: (Models 016, 305)

$

$

Not available

30

Ariens 08249000

ENGINE-HSK600 3HP 2-CY (EPA-C)

Note: (Model 015)

$

$

Not available

31

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03801600

BRKT-ENGINE MTG

$

$

Not available

33

Ariens 06116600

@SCR-MCH 8-32X2.75 HWH YWZC

Note: (Model 016)

$

$

Not available

34

Ariens 06442700

@WSHR-FL-STL.219X.50X.049 YWZC
(Superseded to 06401123)

Note: (Model 016)

$0.99

$

Usually ships in 4-12 days

0

35

Ariens 06531300

@NUT-LK-NYL 8-32 W/INSTR YWZC

Note: (Model 016)

$0.99

$

Usually ships in 4-12 days

0

36

Ariens 03810700

BAFFLE-BELT PROTECTIVE
(Superseded to 03810751)

$

$

Not available

37

Ariens 21533600

PLUG, SPARK

$4.99

$

In Stock, Qty 20+

0
