938016 (SS 522 E) - Ariens 22" Snow Blower, 5hp Tecumseh (SN: 000101 & Above) Auger And Discharge Chute Parts Diagram

22" Snow Blower, 5hp Tecumseh

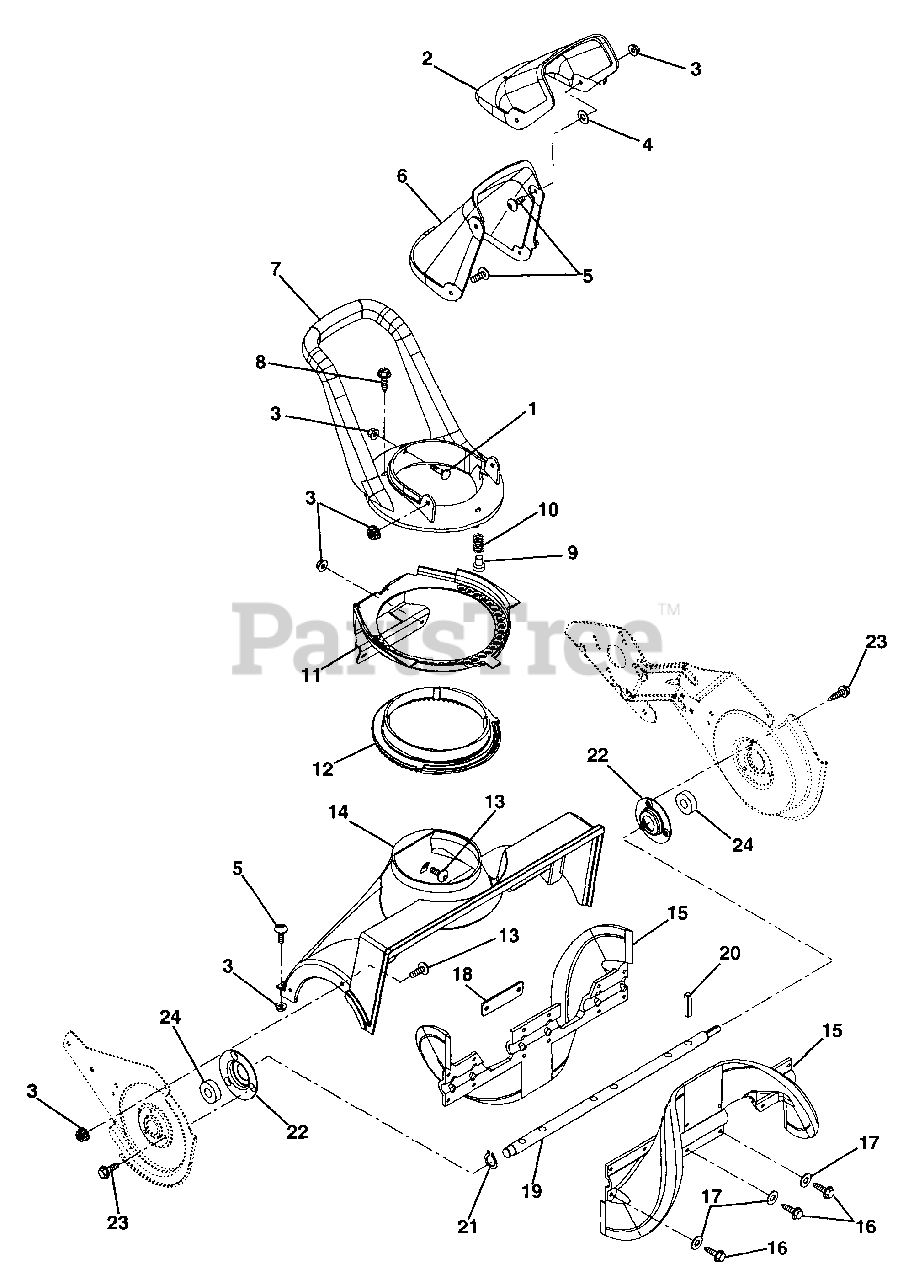

Auger And Discharge Chute Parts Diagram

  • Title

1

Ariens 06219900

@BLT-RDHDSQNK .25-20X.75 G5YZ
(Superseded to 06200307)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 53800400

DEFLECTOR-DISCHARGE CHUTE ASSY

$

$

Not available

3

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06437800

WSHR-FL-RBR .31X1.25X.06
(Superseded to 06432800)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06114400

SCR-MCH .25-20X.75 TXTR YWZC

$0.99

$

In Stock, Qty 10

0

6

Ariens 53801700

CHUTE-DISCHARGE ASSY
(Superseded to 03806100)

$68.99

$

In Stock, only 1 left!

0

7

Ariens 03801800

HANDLE

$18.99

$

Usually ships in 4-12 days

0

8

Ariens 07409500

SCR TAP 8-18X1.50 SL HWH PL B

$2.49

$

In Stock, Qty 6

0

9

Ariens 06816700

RVT- .250 X 1.125 TRUSS YWZC

$9.49

$

In Stock, only 2 left!

0

10

Ariens 08329800

SG-COMP .045X.360X1.75 WLD12.5

$15.99

$

In Stock, only 1 left!

0

11

Ariens 03801700

BRKT-DISCHARGE CHUTE ROTATION
(Superseded to 03801751)

$83.99

$

Usually ships in 4-12 days

0

12

Ariens 03804000

GEAR-DISCHARGE CHUTE SEGMENT

$39.99

$

Usually ships in 4-12 days

0

13

Ariens 06114300

SCR-MCH .25-20X.50 TXTR PL

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 53800300

HOUSING-IMPELLER ASSY

$

$

Not available

15

Ariens 03807000

IMPELLER HALF

$53.99

$

In Stock, Qty 20+

0

16

Ariens 07412400

@SCR-TAP .25-20X1.00 HWH TR YZ
(Superseded to 07400133)

$2.99

$

In Stock, Qty 20+

0

17

Ariens 06426600

WSHR-FL-STL .281X1.000X.063
(Superseded to 06401020)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 03803000

PLATE-BOLT,SELF-TAPPING

$15.99

$

In Stock, Qty 6

0

19

Ariens 03806900

SHAFT-IMPELLER

$83.99

$

In Stock, only 1 left!

0

20

Ariens 05809200

PIN-ROLL .250X1.75 ZINC PL

$3.99

$

Usually ships in 4-12 days

0

21

Ariens 05706100

RG-RTNG-EXT .672X.035

$1.99

$

Usually ships in 4-12 days

0

22

Ariens 03800800

CUP-BRG

$18.99

$

Usually ships in 4-12 days

0

23

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 05418800

BRG-BALL .669X1.575X.47 (6203)

$9.49

$

In Stock, Qty 20+

0
