937004 - Ariens Metro 21" Snow Blower, 3hp Tecumseh (SN: 000100 & Above) Handlebars, Controls And Shrouds Parts Diagram

Metro 21" Snow Blower, 3hp Tecumseh

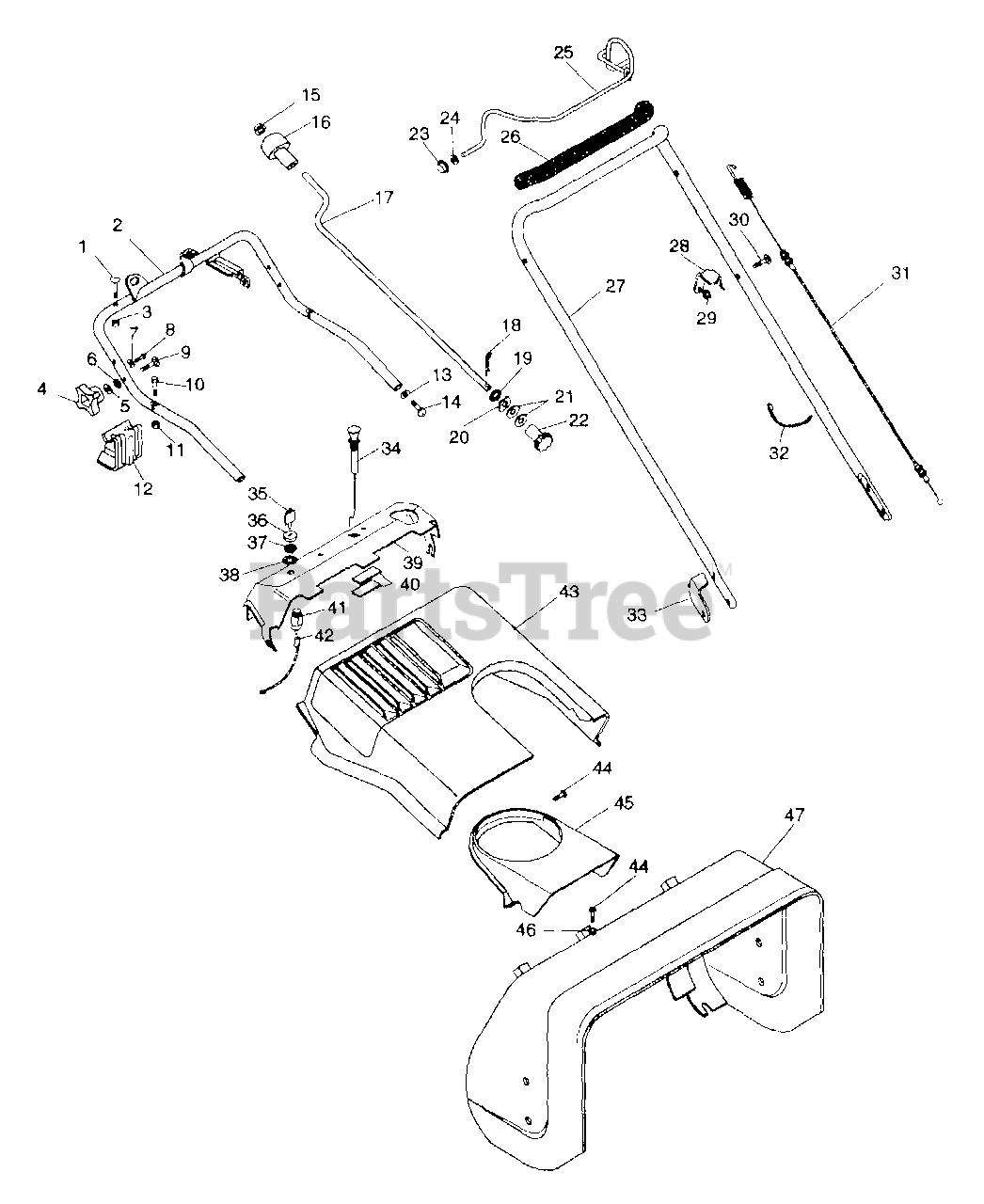

Handlebars, Controls And Shrouds Parts Diagram

  • Title

1

Ariens 07003700

BLT-CRVD-HD .25-20X.25 PL

$

$

Not available

2

Ariens 03708355

TUBE WELDMENT
(Superseded to 03708351)

Note: (Used Only On Model(s): 003).

$

$

Not available

2

Ariens 03708351

TUBE WELDMENT

Note: (Used Only On Model(s): 004).

$

$

Not available

3

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 07515400

KNOB 5/16-18 UNC
(Superseded to 07534800)

$3.49

$

In Stock, Qty 20+

0

5

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

6

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

8

Ariens 07411000

SCR-TAP #10-16 X .625 HWH

$3.49

$

Usually ships in 4-12 days

0

9

Ariens 06208200

BLT-RDHDSQNK.31-18X2.25 PL

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 05930500

SCR-SKH .25-20X1.25 FLTCNTRSK

$

$

Not available

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03706300

SWITCH BRACKET WELDMENT

$

$

Not available

13

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

14

Ariens 05946200

SCR-SKH .31-18X1.25 BTNHD SS

$

$

Not available

15

Ariens 01019800

CAP, 3/8 ROD YWZC

$2.99

$

In Stock, Qty 15

0

16

Ariens 07508300

KNOB

$13.99

$

In Stock, Qty 7

0

17

Ariens 03705351

CHUTE CRANK
(Superseded to 03710000)

$54.99

$

Usually ships in 4-12 days

0

18

Ariens 06701000

PIN-HAIR INT .08X.38X1.42 YWZC
(Superseded to 06700224)

$2.49

$

Usually ships in 4-12 days

0

19

Ariens 03224300

PUSHNUT .625

$2.49

$

In Stock, Qty 13

0

20

Ariens 03704900

WAVE WASHER .640X.875X.125FH

$2.49

$

In Stock, only 4 left!

0

21

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03701800

PINION

$

$

Not available

23

Ariens 07008200

NUT-PUSH .312 DIA. PAL

$2.49

$

In Stock, Qty 20+

0

24

Ariens 06424400

WSHR-FL-STL .344X.688X.065 PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03703555

BAIL
(Superseded to 03703551)

Note: (Used Only On Model(s): 003).

$

$

Not available

25

Ariens 03703551

BAIL

Note: (Used Only On Model(s): 004).

$

$

Not available

26

Ariens 07519300

HANDLEBAR CUSHION

$

$

Not available

27

Ariens 03703655

UPPER HANDLEBAR
(Superseded to 03703651)

Note: (Used Only On Model(s): 003).

$

$

Not available

27

Ariens 03703651

UPPER HANDLEBAR

Note: (Used Only On Model(s): 004).

$

$

Not available

28

Ariens 01155700

CABLE ANCHOR-LH
(Superseded to 01245651)

$

$

Not available

29

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06209400

BLT-RDHDSQNK .25-20X1.25 XLGPL
(Superseded to 06220100)

$2.49

$

Usually ships in 4-12 days

0

31

Ariens 06924100

CONTROL CABLE

$

$

Not available

32

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

33

Ariens 03705955

STRAP ASSEMBLY

Note: (Used Only On Model(s): 003).

$

$

Not available

33

Ariens 03709000

LOCK BAR RH

Note: (Used Only On Model(s): 004).

$

$

Not available

33

Ariens 03709100

LOCK BAR LH

Note: (Used Only On Model(s): 004).

$

$

Not available

34

Ariens 06923900

CHOKE CONTROL

$

$

Not available

35

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

36

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

37

Ariens 06517300

NUT-PANEL .625-32 GRECO

$7.99

$

Usually ships in 4-12 days

0

38

Ariens 06301900

WSHR-LK-INT .625X.045 PL
(Superseded to 06306900)

$3.99

$

Usually ships in 4-12 days

0

39

Ariens 53701300

DASH W/DECAL

Note: (Used Only On Model(s): 003).

$

$

Not available

39

Ariens 53700100

DASH W/DECAL

Note: (Used Only On Model(s): 004).

$

$

Not available

40

Ariens 03704800

CATCH ASSEMBLY

Note: (Used Only On Model(s): 003).

$

$

Not available

41

Ariens 02456500

KEY SWITCH ASSEMBLY
(Superseded to 52406900)

$39.99

$

Usually ships in 4-12 days

0

42

Ariens 03703700

WIRE

$

$

Not available

43

Ariens 03708500

ENGINE COVER
(Superseded to 03700400)

Note: (Used Only On Model(s): 003).

$

$

Not available

43

Ariens 03700400

ENGINE COVER

Note: (Used Only On Model(s): 004).

$

$

Not available

44

Ariens 07411100

SCR-TAP 10-24X.50 CRTRH PL AB2

$

$

Not available

45

Ariens 03708400

INSERT

Note: (Used Only On Model(s): 003).

$

$

Not available

45

Ariens 03701000

INSERT

Note: (Used Only On Model(s): 004).

$

$

Not available

46

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

47

Ariens 53701500

AUGER COVER W/DECALS

Note: (Used Only On Model(s): 003).

$

$

Not available

47

Ariens 53700300

AUGER COVER W/DECALS

Note: (Used Only On Model(s): 004).

$

$

Not available
