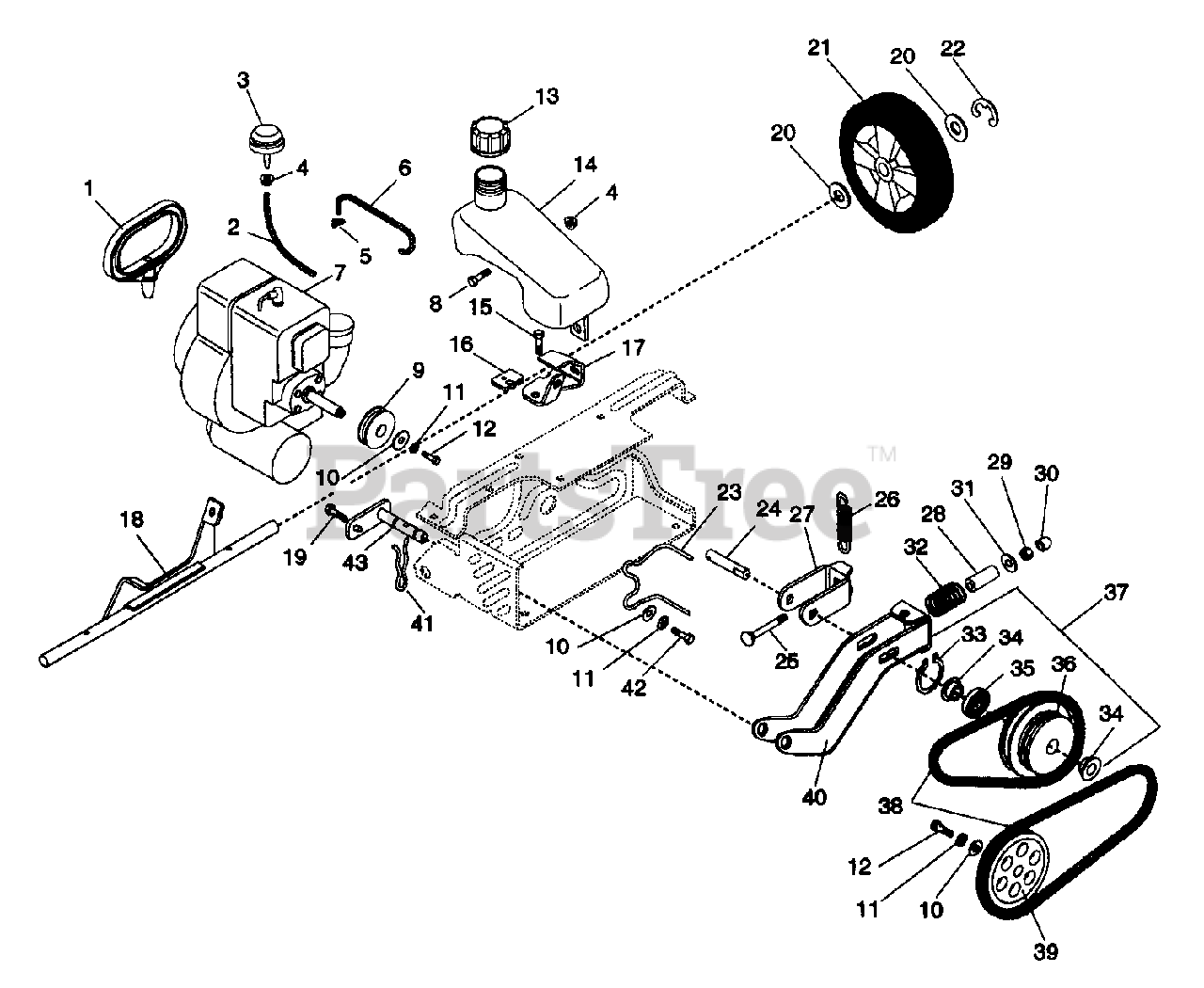

937004 - Ariens Metro 21" Snow Blower, 3hp Tecumseh (SN: 000100 & Above) Engine And Drive Parts Diagram

Metro 21" Snow Blower, 3hp Tecumseh

Engine And Drive Parts Diagram

  • Title

1

Ariens 01157100

HANDLE, RECOIL START

$7.99

$

In Stock, only 1 left!

0

2

Ariens 07518300

PRIMER LINE

$

$

Not available

3

Ariens 07518200

PRIMER ASSY

$25.99

$

Usually ships in 4-12 days

0

4

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

5

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

6

Ariens 03705500

FUEL LINE

$

$

Not available

7

Ariens 08207000

ENGINE 3HP 2 CYCLE

$

$

Not available

8

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

9

Ariens 03702000

SHEAVE HALF - ENGINE

$

$

Not available

10

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

11

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05903600

BLT-HEX .31-24X.50 GR5
(Superseded to 05962700)

$

$

Not available

13

Ariens 07520800

FUEL CAP-2 CYCLE BLACK

Note: (Used Only On Model(s): 003).

$

$

Not available

13

Ariens 07518100

FUEL CAP 2 CYCLE ORANGE

Note: (Used Only On Model(s): 004).

$

$

Not available

14

Ariens 03701500

FUEL TANK

$

$

Not available

15

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03706100

PLATE

$

$

Not available

17

Ariens 03706200

TANK BRACKET

$

$

Not available

18

Ariens 03706900

AXLE WELDMENT

$

$

Not available

19

Ariens 07001500

BLT-SERHFWH .25-20X.50 PL
(Superseded to 07049300)

$2.49

$

Usually ships in 4-12 days

0

20

Ariens 06413800

WSHR-FL-STL .531X.938X.104 PL

$4.49

$

In Stock, only 1 left!

0

21

Ariens 07126500

T/WHL ASSY
(Superseded to 51116000)

$67.99

$

In Stock, only 1 left!

0

22

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 03703400

BELT FINGER

$

$

Not available

24

Ariens 03704200

PIN

$

$

Not available

25

Ariens 06211600

BLT-RDHDSQNK .31-18X3.25 FTHPL
(Superseded to 06223500)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 08308300

SG-TENS .080X.80X2.48 WLD 6

$

$

Not available

27

Ariens 03703300

TENSION BRACKET

$

$

Not available

28

Ariens 03705600

SPACER .400X.530X1.120

$

$

Not available

29

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 07517000

CAP, VINYL, .25 ID

$3.49

$

In Stock, Qty 10

0

31

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

32

Ariens 08326300

SG-COMP .148X.87X1.50

$

$

Not available

33

Ariens 05710800

RG-RTNG-INT 1.620X.062

$

$

Not available

34

Ariens 05516000

BSHG-FLG .504X.670X.640X.900

$

$

Not available

35

Ariens 05418800

BRG-BALL .669X1.575X.47 (6203)

$9.49

$

In Stock, Qty 20+

0

36

Ariens 03705200

SHEAVE-ALUM

$

$

Not available

37

Ariens 53700500

PULLEY ASSEMBLY

$

$

Not available

38

Ariens 07218600

V-BELT, 3L-RAW EDGE
(Superseded to 53700800)

$65.99

$

Usually ships in 4-12 days

0

39

Ariens 03701900

SHEAVE HALF - IMPELLER

$

$

Not available

40

Ariens 03707000

BRACKET - PIVOT

$

$

Not available

41

Ariens 06705500

PIN-HAIR-EXT .062X.38X1.00

$1.99

$

Usually ships in 4-12 days

0

42

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 03707100

PIN & PLATE ASSY

$

$

Not available
