937003 - Ariens Metro 21" Snow Blower, 3hp Tecumseh (SN: 000100 & Above) Auger / Impeller Parts Diagram

Metro 21" Snow Blower, 3hp Tecumseh

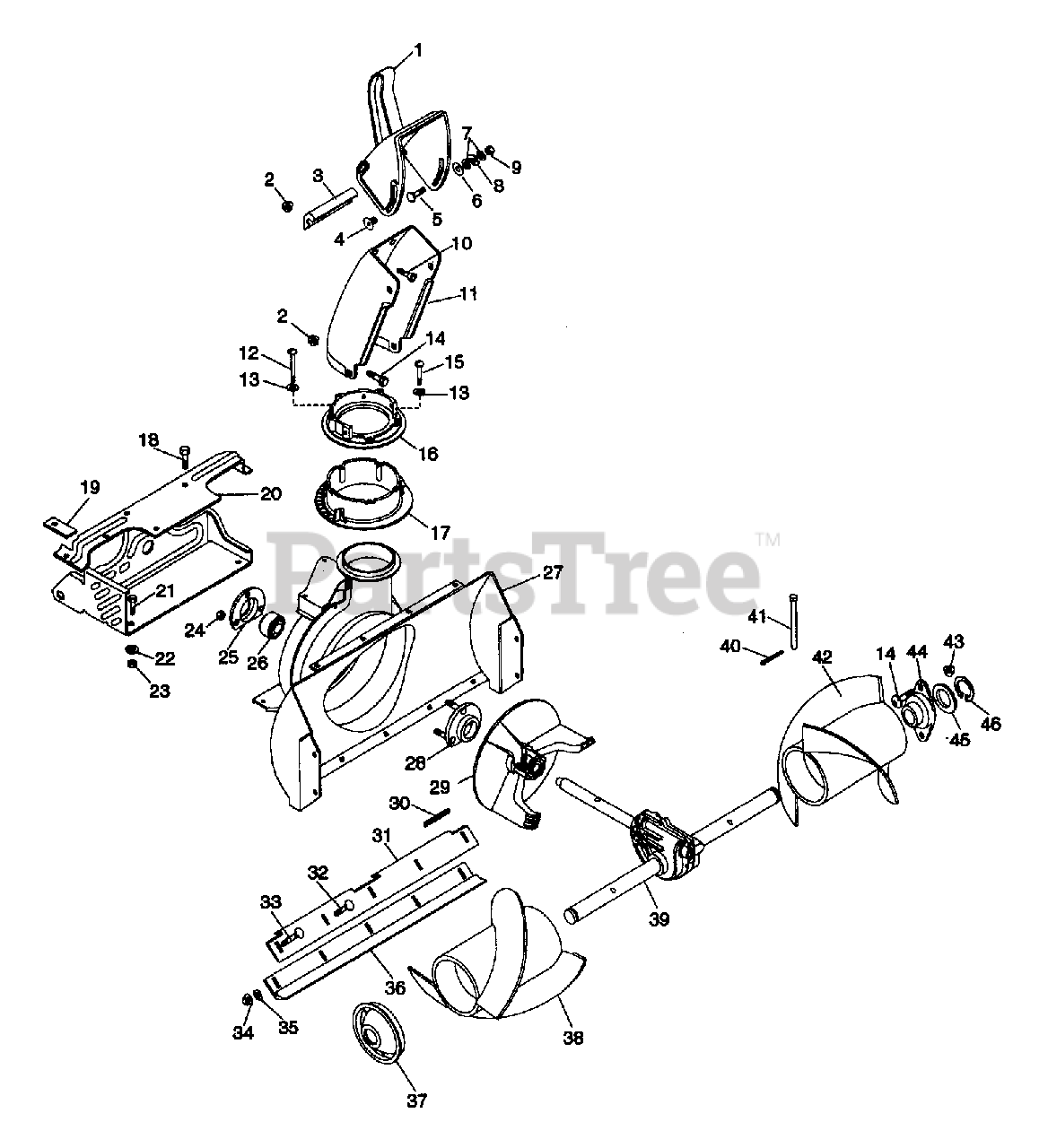

Auger / Impeller Parts Diagram

  • Title

1

Ariens 53701400

DEFLECTOR CAP W/DECAL

$

$

Not available

2

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

3

Ariens 03708800

HINGE

$

$

Not available

4

Ariens 07011400

RVT-PUSH .28X.34 THRD-TRUSS-HD

$

$

Not available

5

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

7

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

8

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

9

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 05929400

SCR-SKH .25-20X.50 FLTCNTRSK
(Superseded to 06117300)

$

$

Not available

11

Ariens 03701455

DISCHARGE CHUTE
(Superseded to 03701400)

$

$

Not available

12

Ariens 07409600

SCR-TAP 8-18X2.00 SL HWH PL B

$

$

Not available

13

Ariens 06434400

WSHR-FL-NYL .31X.75X.180

$

$

Not available

14

Ariens 05945600

BLT-HEX .25-20X.63 PL BLK GR5

$

$

Not available

15

Ariens 07409500

SCR TAP 8-18X1.50 SL HWH PL B

$2.49

$

In Stock, Qty 6

0

16

Ariens 03708600

RING

$74.99

$

Usually ships in 4-12 days

0

17

Ariens 03708200

CHUTE GEAR

$

$

Not available

18

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03706400

PAD-FOAM

$

$

Not available

20

Ariens 03706800

FRAME WELDMENT

$

$

Not available

21

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

22

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

24

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 01014200

BEARING FLANGE

$5.99

$

In Stock, Qty 20+

0

26

Ariens 05406300

BRG-BALL .750X1.750X.50

$25.99

$

In Stock, Qty 20+

0

27

Ariens 03700900

AUGER HOUSING

$

$

Not available

28

Ariens 00301700

BEARING FLANGE

$17.99

$

In Stock, Qty 17

0

29

Ariens 03707900

IMPELLER-3 BLADE
(Superseded to 03700100)

$

$

Not available

30

Ariens 05801100

PIN-ROLL .250X2.00

$

$

Not available

31

Ariens 03702700

SCRAPER SUPPORT

$

$

Not available

32

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06205400

BLT-RDHDSQNK .25-20X.88 PL
(Superseded to 06219800)

$2.49

$

In Stock, only 3 left!

0

34

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

36

Ariens 03705800

SCRAPER BLADE

$25.99

$

In Stock, only 2 left!

0

37

Ariens 03708000

END CAP - AUGER

$

$

Not available

38

Ariens 03700200

L.H. AUGER

$

$

Not available

39

Ariens 53701700

GEAR CASE ASSEMBLY
(Superseded to 53702200)

Note: (See Gear Case Section for Details)

$

$

Not available

40

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

41

Ariens 06811700

PIN-CLEV .25X4.5

$

$

Not available

42

Ariens 03700300

R.H. AUGER

$

$

Not available

43

Ariens 06527600

NUT-LK-FLG .250-20 PL BLK

$0.99

$

In Stock, Qty 20+

0

44

Ariens 03700700

BEARING SUPPORT

$

$

Not available

45

Ariens 06404600

WSHR-FL-STL 1.010X1.505X.062PL
(Superseded to 06436300)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06424300

WSHR-FL-STL .281X.625X.065 PL

$3.99

$

Usually ships in 4-12 days

0
