936319 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Hydro (SN: 000101 & Above) Clutch & Brake - Hydro Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Hydro

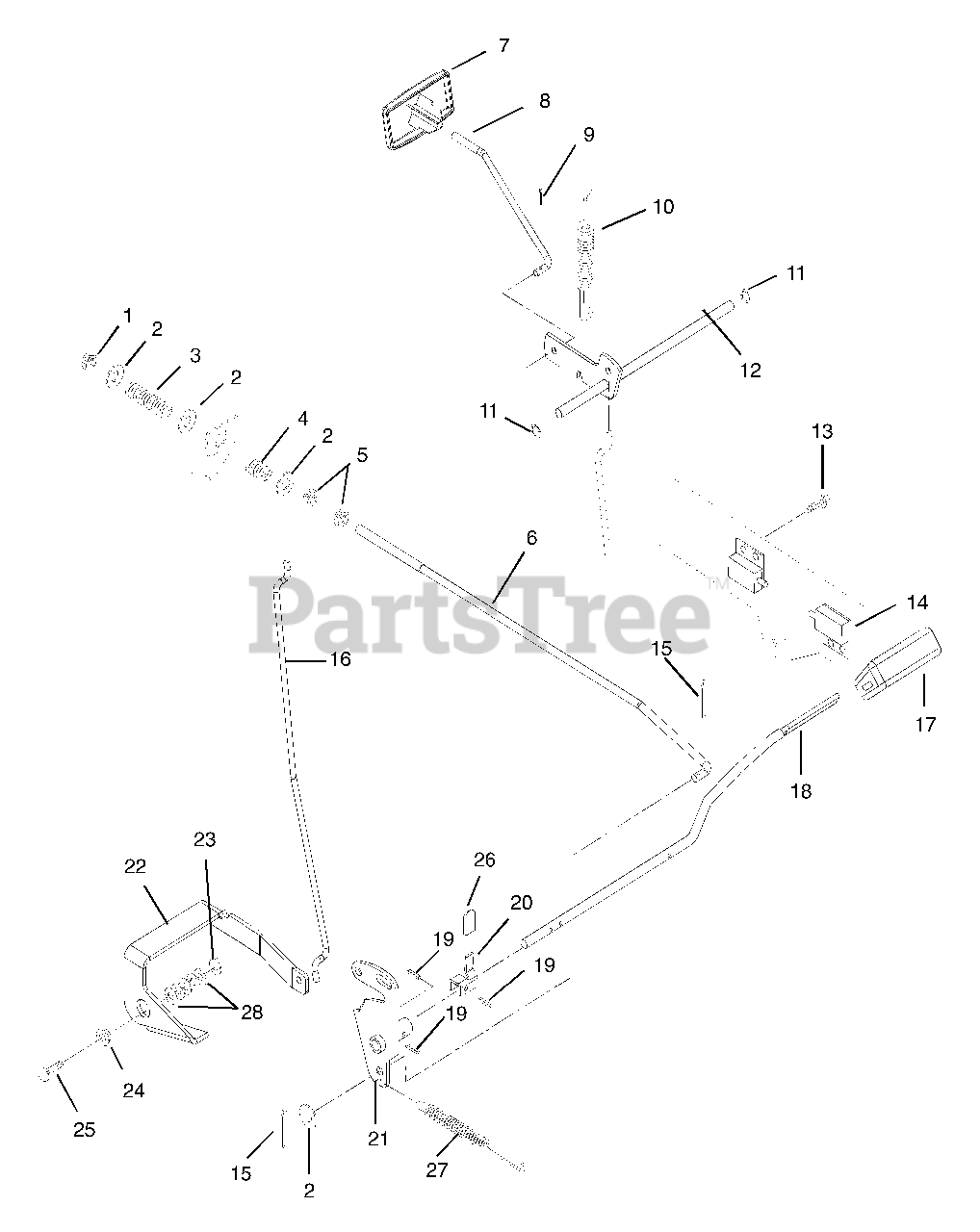

Clutch & Brake - Hydro Parts Diagram

  • Title

1

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.99

$

Usually ships in 4-12 days

0

4

Ariens 08327000

SG-COMP .125X.78X1.00 YWZ

$15.99

$

In Stock, only 2 left!

0

5

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03666700

ROD - BRAKE

$

$

Not available

7

Ariens 03652453

KNOB, PARK BRAKE

$

$

Not available

8

Ariens 03357400

ROD, PARKING BRAKE

$51.99

$

Usually ships in 4-12 days

0

9

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 08325200

SG-TENS .051X.60X2.25 WLD 7.0

$5.99

$

In Stock, only 1 left!

0

11

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

12

Ariens 03357300

BELLCRANK-PARKING BRAKE
(Superseded to 03357351)

$

$

Not available

13

Ariens 07411900

@SCR-TAP 12-24X.50 HWH TR YWZC
(Superseded to 07400136)

$2.49

$

In Stock, Qty 11

0

14

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

15

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

16

Ariens 03357200

ROD, PARKING BRAKE

$

$

Not available

17

Ariens 07523600

COVER - PEDAL - BRAKE

$

$

Not available

18

Ariens 03651000

PEDAL - BRAKE

$

$

Not available

19

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

20

Ariens 03650500

LEVER - BRAKE SWITCH

$

$

Not available

21

Ariens 03667800

ARM + HUB - BRAKE

$

$

Not available

22

Ariens 03357100

LEVER, PARKING BRAKE

$18.99

$

Usually ships in 4-12 days

0

23

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

25

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

26

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

27

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 1 left!

0

28

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0
