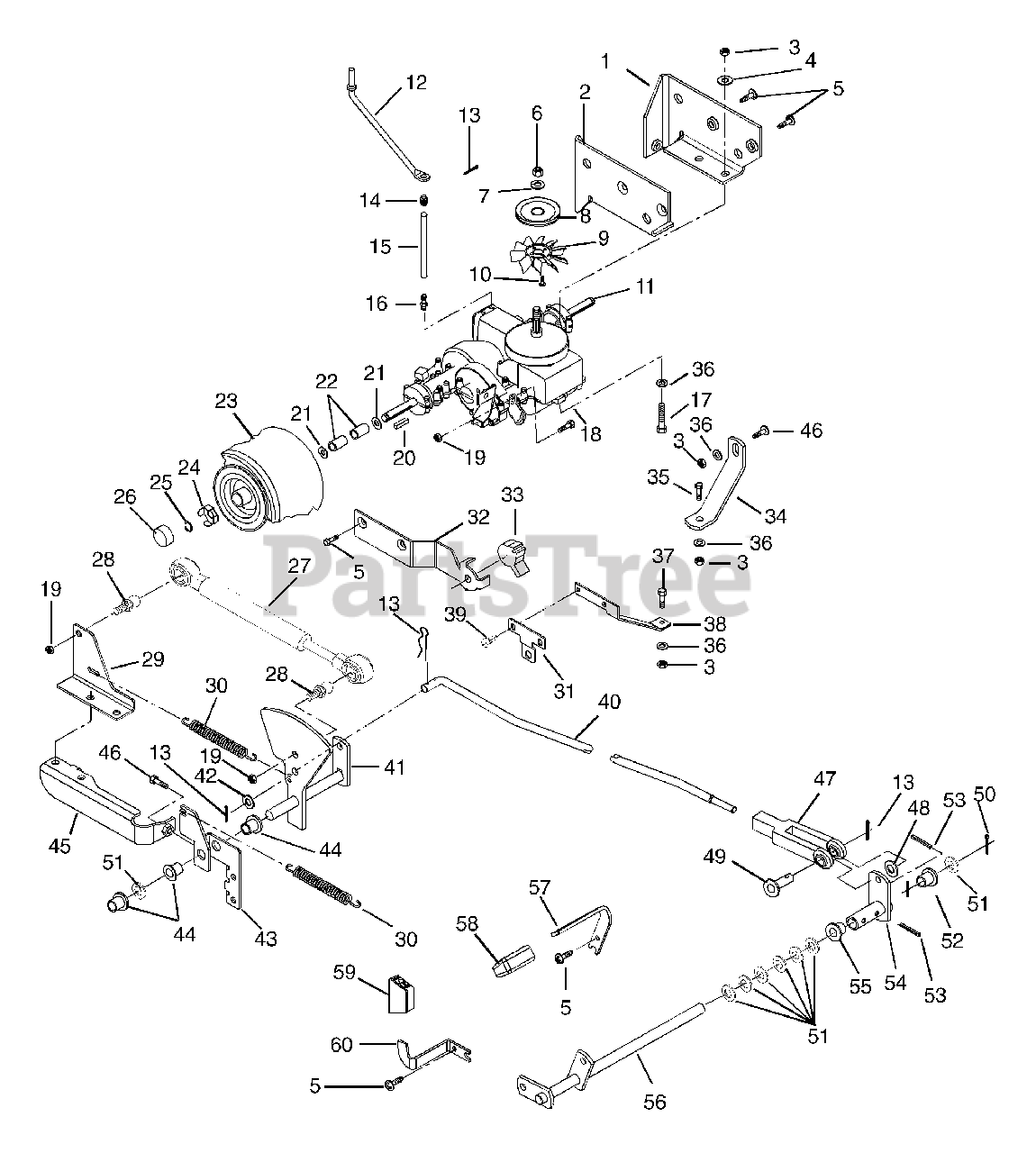

936316 (YT 2048) - Ariens 48" Yard Tractor, 20hp Briggs & Stratton, Hydro (SN: 000101 & Above) Rear Wheel & Hydro Drive Parts Diagram

48" Yard Tractor, 20hp Briggs & Stratton, Hydro

Rear Wheel & Hydro Drive Parts Diagram

  • Title

1

Ariens 03678951

TRANS MOUNT, LH

Note: (Model 315, 319)

$

$

Not available

1

Ariens 03645900

MOUNT - TRANS. LH

Note: (Model 316)

$

$

Not available

2

Ariens 03678851

TRANS MOUNT, RH

Note: (Model 315, 319)

$

$

Not available

2

Ariens 03643900

MOUNT - TRANS. RH

Note: (Model 316)

$

$

Not available

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Ariens 06539500

NUT-JAM .50-20 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Ariens 07321400

SHEAVE - TRANSAXLE
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

9

Ariens 03570000

FAN

$35.99

$

Usually ships in 4-12 days

0

10

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 03648800

TRANSAXLE- HYDRO #325-0750
(Superseded to 03668900)

$

$

Not available

12

Ariens 03677200

ROD, TRANS DISCONNECT

Note: (Model 315, 319)

$5.99

$

Usually ships in 4-12 days

0

12

Ariens 03647400

ROD - TRANS. DISCONNECT

Note: (Model 316)

$

$

Not available

13

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

14

Ariens 07026400

CAP-VENT .50

$14.99

$

In Stock, only 2 left!

0

15

Ariens 03635100

HOSE- VENT .50ID X 7.50LONG

$

$

Not available

16

Ariens 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 2 left!

0

17

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

21

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

22

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

23

Ariens 07153500

TIRE ASSEMBLY 20 X 10.00-8

$136.99

$

Usually ships in 4-12 days

0

23

Ariens 07153600

RIM-SIERRA

$

$

Not available

23

Ariens 07133200

TIRE 20X10-8 2P TS TL

$102.99

$

Usually ships in 4-12 days

0

24

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

25

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

27

Ariens 03652100

DAMPER - HYDRAULIC

$52.99

$

Usually ships in 4-12 days

0

28

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

29

Ariens 03650900

ANCHOR - SPRING - TOP

$

$

Not available

30

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$13.99

$

Usually ships in 4-12 days

0

31

Ariens 03678000

SUPPORT, SHIFT ARM

Note: (Model 315, 319)

$5.99

$

Usually ships in 4-12 days

0

31

Ariens 03664900

SUPPORT - SHIFT ARM

Note: (Model 316)

$

$

Not available

32

Ariens 03664700

MOUNT - MAGNET

$

$

Not available

33

Ariens 03359700

MAGNET

$

$

Not available

34

Ariens 03677300

STRAP, TORQUE L.H (HYDRO)

Note: (Model 315, 319)

$

$

Not available

34

Ariens 03654700

STRAP - TORQUE L.H.

Note: (Model 316)

$

$

Not available

35

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 12

0

36

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 03677400

STRAP, TORQUE R.H (HYDRO)

Note: (Model 315, 319)

$

$

Not available

38

Ariens 03664800

STRAP - TORQUE RH

Note: (Model 316)

$

$

Not available

39

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

40

Ariens 03677600

ROD, SHIFT

Note: (Model 315, 319)

$

$

Not available

40

Ariens 03666800

ROD - SHIFT

Note: (Model 316)

$

$

Not available

41

Ariens 03677900

ARM, SHIFT (WELDMENT)

Note: (Model 315, 319)

$

$

Not available

41

Ariens 03664600

ARM - SHIFT

Note: (Model 316)

$39.99

$

Usually ships in 4-12 days

0

42

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 03665100

PIVOT - REVERSE

$

$

Not available

44

Ariens 05518000

BSHG-FLG .508X.645X.459X.75 NY

$26.99

$

Usually ships in 4-12 days

0

45

Ariens 03652300

ANCHOR - SPRING - BOTTOM

$

$

Not available

46

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

Usually ships in 4-12 days

0

48

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

49

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

50

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

51

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

52

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

53

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 4 left!

0

54

Ariens 03651700

ARM & HUB

$

$

Not available

55

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 6

0

56

Ariens 03651800

SHAFT - PEDAL

$

$

Not available

57

Ariens 03650600

PEDAL - FORWARD

$

$

Not available

58

Ariens 07524000

COVER - PEDAL - FORWARD

$34.99

$

Usually ships in 4-12 days

0

59

Ariens 07524400

COVER - PEDAL - REVERSE

$

$

Not available

60

Ariens 03650700

PEDAL - REVERSE

$

$

Not available
