936316 (YT 2048) - Ariens 48" Yard Tractor, 20hp Briggs & Stratton, Hydro (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

48" Yard Tractor, 20hp Briggs & Stratton, Hydro

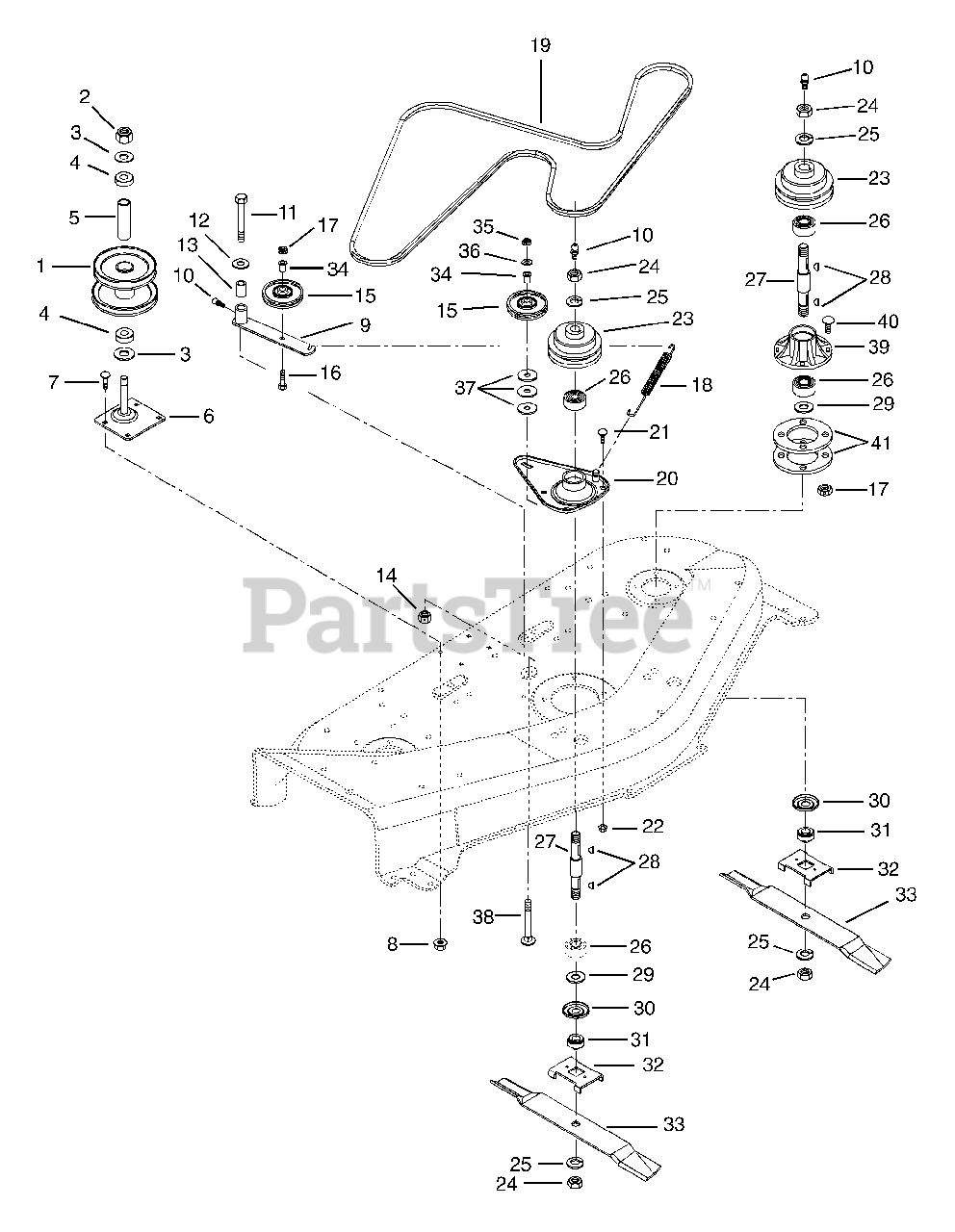

48" Mower Spindle Parts Diagram

  • Title

1

Ariens 03666900

JACKSHAFT - 48" DECK

$

$

Not available

2

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

5

Ariens 03615500

SPACER .640X.880X2.545

$27.99

$

In Stock, only 1 left!

0

6

Ariens 03666300

PLATE - MOUNT
(Superseded to 03666351)

$92.99

$

Usually ships in 4-12 days

0

7

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03666400

ARM - IDLER

$

$

Not available

10

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

11

Ariens 05965500

@BLT-HEX .50-13X2.75 GR5 YWZC
(Superseded to 05901720)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

$

$

Not available

14

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$37.99

$

In Stock, only 1 left!

0

16

Ariens 05958000

@BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 08327600

SG-TENS .075X.75X2.25 WLD20.7

$17.99

$

In Stock, only 1 left!

0

19

Ariens 07235200

V-BELT, HA-RAW EDGE

$60.99

$

Usually ships in 4-12 days

0

20

Ariens 03354600

HOUSING, SPINDLE

$64.73

$

Usually ships in 4-12 days

0

21

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

22

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03670300

SHEAVE

$187.99

$

Usually ships in 4-12 days

0

24

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

25

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

27

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

28

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

29

Ariens 06444100

WSHR-FL-STL .754X1.000X.032 YZ

$2.99

$

In Stock, Qty 17

0

30

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

31

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

32

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

33

Ariens 03123700

BLADE

$23.99

$

Usually ships in 4-12 days

0

34

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

35

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06441700

WSHR-FL-STL .390X1.5X.125 YWZC

$3.99

$

In Stock, only 1 left!

0

38

Ariens 06220500

@BLT-RDHDSQNK .38-16X2.00 G2YZ
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

39

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

40

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

41

Ariens 03433600

SPACER, SPINDLE

$

$

Not available
