936316 (YT 2048) - Ariens 48" Yard Tractor, 20hp Briggs & Stratton, Hydro (SN: 000101 & Above) 48" Mower Deck & Rollers Parts Diagram

48" Yard Tractor, 20hp Briggs & Stratton, Hydro

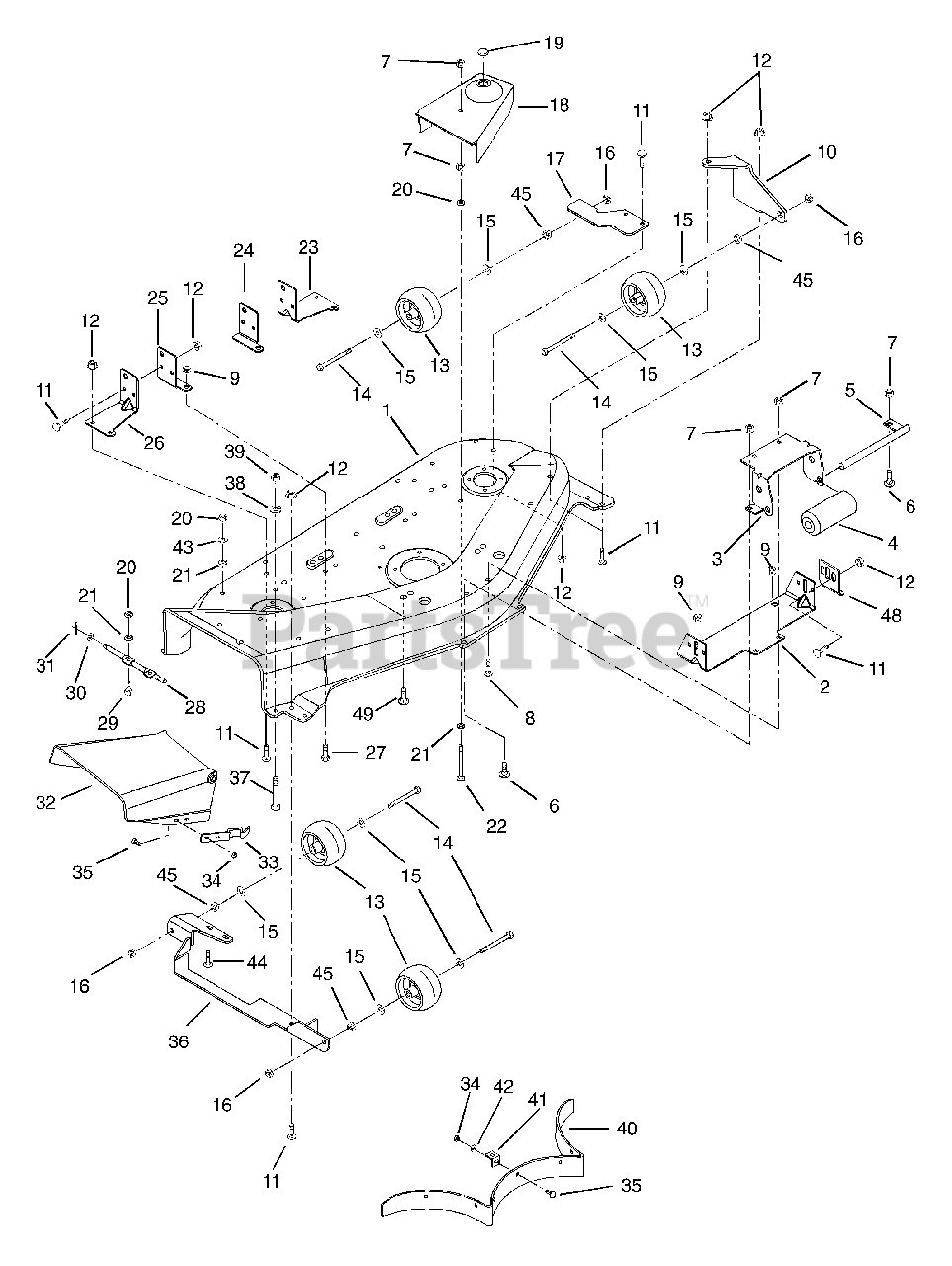

48" Mower Deck & Rollers Parts Diagram

  • Title

1

Ariens 53607300

48" DECK W/DECALS - GLT
(Superseded to 51503400)

$

$

Not available

2

Ariens 01521200

FRONT HANGER
(Superseded to 01521251)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 03435100

BRACKET, ROLLER
(Superseded to 03435151)

$81.99

$

Usually ships in 4-12 days

0

4

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

5

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

10

Ariens 01533800

BRACKET - LEFT FRONT
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

14

Ariens 05962300

@BLT-HEX .50-13X4.50 GR5 YWZC
(Superseded to 05901932)

$5.99

$

In Stock, only 2 left!

0

15

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

17

Ariens 01534153

BRACKET, LEFT REAR - RED

$

$

Not available

18

Ariens 03096253

COVER, RIGHT HAND

$14.99

$

Usually ships in 4-12 days

0

18

Ariens 03095953

COVER, LEFT HAND

$

$

Not available

19

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

20

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 01535853

LH REAR HANGER - RED
(Superseded to 01535851)

$38.99

$

Usually ships in 4-12 days

0

24

Ariens 01521600

LH REAR HANGER SUPPORT
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 01521400

RH REAR HANGER SUPPORT
(Superseded to 01521451)

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 01535753

RH REAR HANGER - RED
(Superseded to 01535700)

$56.99

$

Usually ships in 4-12 days

0

27

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

28

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

29

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

32

Ariens 03034953

CHUTE EXTENSION

$

$

Not available

33

Ariens 00318553

FLAT SPRING - RED

$

$

Not available

34

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 01533953

MOUNT - ROLLER
(Superseded to 01533900)

$

$

Not available

37

Ariens 05958400

@BLT-HEX .38-16X2.50 GR5 YWZC
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

38

Ariens 06306500

WSHR-LK .375X.115 HVY YWZC
(Superseded to 06300120)

$3.49

$

In Stock, only 1 left!

0

39

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 03434253

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

41

Ariens 03434353

BAFFLE TAB

$

$

Not available

42

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 1 left!

0

46

Ariens 03667253

GUARD - FOOT - LEFT - RED

$

$

Not available

47

Ariens 03667353

GUARD - FOOT - RIGHT - RED

$

$

Not available

48

Ariens 03581753

MOWER ADJUSTMENT TAB
(Superseded to 03581700)

$

$

Not available

49

Ariens 06215600
