936315 (YT 1842) - Ariens 42" Yard Tractor, 18hp Briggs & Stratton, Hydro (SN: 000101 & Above) 42" Mower Spindle Parts Diagram

42" Yard Tractor, 18hp Briggs & Stratton, Hydro

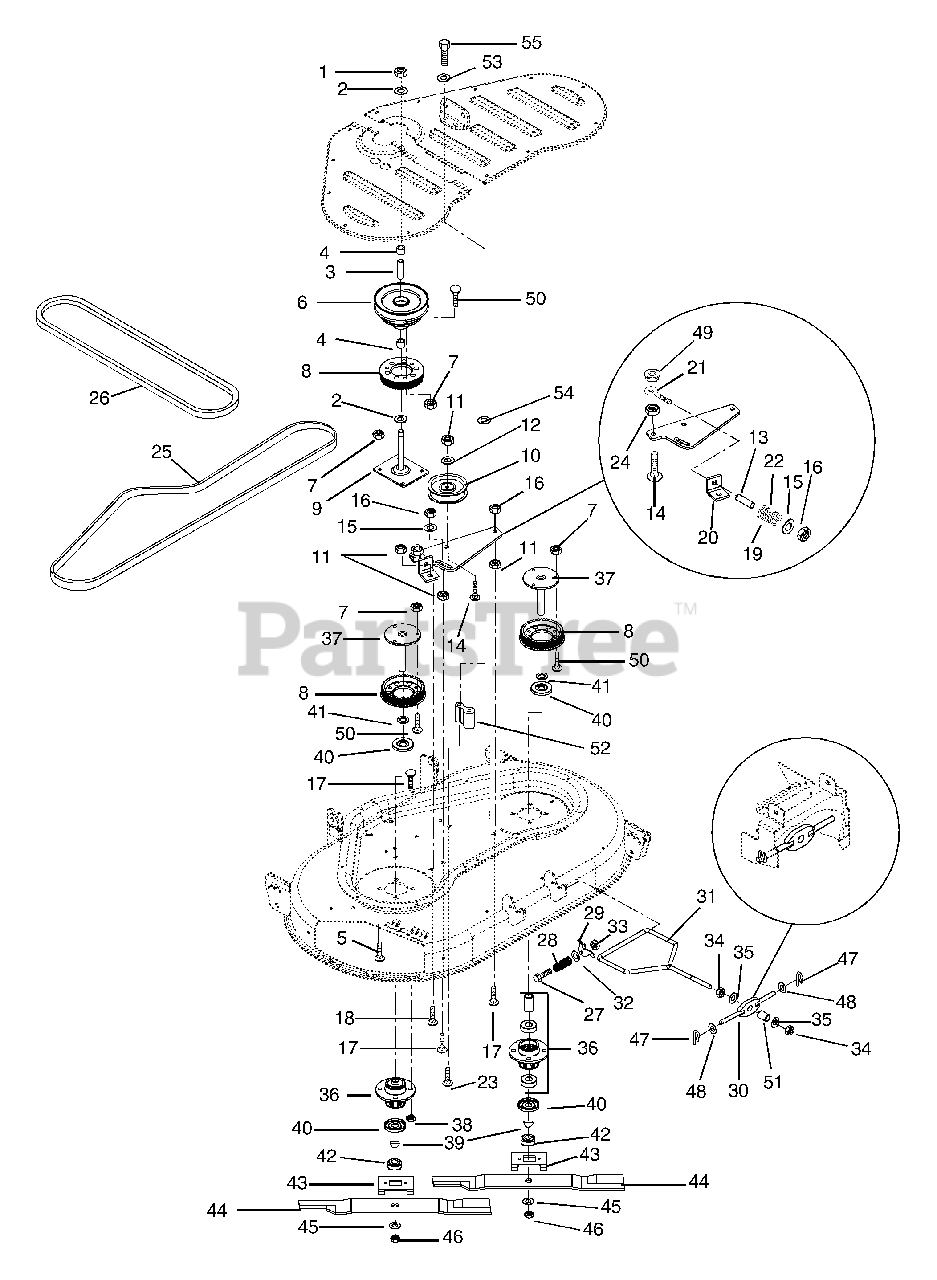

42" Mower Spindle Parts Diagram

  • Title

1

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$3.99

$

In Stock, only 3 left!

0

2

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

3

Ariens 03681400

SPACER, .640X.88X3.634

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 05435100

BRG-BALL .625X1.375X.43

$14.99

$

In Stock, Qty 20+

0

5

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 03682300

JACKSHAFT (SIERRA)

$216.99

$

Usually ships in 4-12 days

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 01583700

SPROCKET, DRIVE

$90.99

$

Usually ships in 4-12 days

0

9

Ariens 03681351

WELDMENT, PLATE MOUNT (SIERRA)
(Superseded to 03681300)

$

$

Not available

10

Ariens 07320800

IDLER, FLAT .377X4.0X.96W POLY

$34.99

$

In Stock, Qty 12

0

11

Ariens 06537200

@NUT-LK-CTR-JAM .375-16 YWZC
(Superseded to 06500914)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 01583200

ARM, BELT ADJUSTMENT

$65.99

$

Usually ships in 4-12 days

0

14

Ariens 06223800

@BLT-RDHDSQNK .38-16X1.75 G5YZ
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06224100

@BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

18

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

19

Ariens 08335700

SG-COMP .125X.781X1.250

$9.49

$

In Stock, only 1 left!

0

20

Ariens 01583300

BRACKET, BELT ADJUSTMENT

$

$

Not available

21

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

$7.99

$

Usually ships in 4-12 days

0

22

Ariens 01584800

SPACER .39X.50X.88

$

$

Not available

23

Ariens 07056600

SCR.38-16X1.25 TRH TORX DR YZC

$3.99

$

Usually ships in 4-12 days

0

24

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

25

Ariens 07237500

COG-BELT X8M

$63.99

$

In Stock, only 1 left!

0

26

Ariens 07237900

V-BELT, HA-WRAPPED

$50.99

$

In Stock, only 2 left!

0

27

Ariens 05947400

@BLT-HEX .25-20X1.25 GR5 YWZC
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

28

Ariens 08321700

SG-COMP .058X.68X.75

$9.49

$

Usually ships in 4-12 days

0

29

Ariens 01583500

RETAINER, BRACE

$

$

Not available

30

Ariens 03682100

WELDMENT, FRONT MOUNT

$

$

Not available

31

Ariens 01584600

ROD, LINK

$34.99

$

In Stock, only 2 left!

0

32

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

33

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

34

Ariens 06536300

@NUT-LK-CTR .50-13 YWZC
(Superseded to 06500827)

$3.99

$

In Stock, only 2 left!

0

35

Ariens 06442000

@WSHR-FL-STL.563X1.38X.109YWZC
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

36

Ariens 01583800

ASSEMBLY, SPINDLE HOUSING

$113.99

$

In Stock, only 3 left!

0

37

Ariens 01582400

WELDMENT, SPINDLE SHAFT

$159.99

$

In Stock, only 1 left!

0

38

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

41

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

42

Ariens 01582100

HUB, RETAINER

$43.99

$

In Stock, only 1 left!

0

43

Ariens 01582200

TRAY, BLADE

$22.99

$

In Stock, only 3 left!

0

44

Ariens 01585000

BLADE, 22" LOW LIFT - CE

$36.99

$

In Stock, only 2 left!

0

45

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

46

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

47

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

48

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

49

Ariens 06534800

NUT-LK-CTR-FLG .38-16 YWZC
(Superseded to 06500901)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 05533100

BSHG-SLV .50X.74X.53

$15.99

$

In Stock, only 1 left!

0

52

Ariens 03681600

SUPPORT, LIFT BRACKET

$

$

Not available

53

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

55

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0
