936311 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) Steering Parts Diagram

Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro

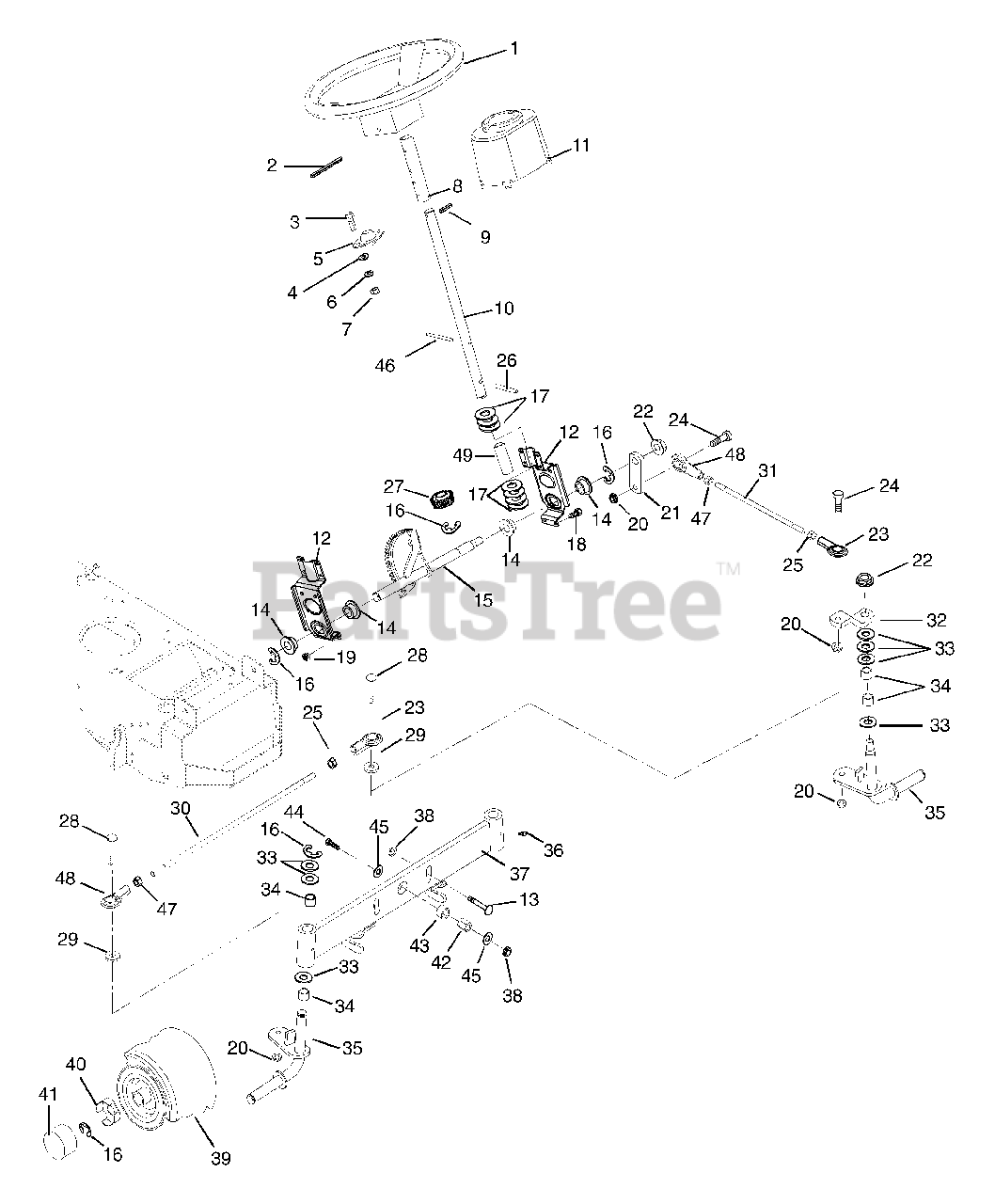

Steering Parts Diagram

  • Title

1

Ariens 03600600

STEERING WHEEL 13"
(Superseded to 03671200)

$

$

Not available

2

Ariens 05803700

PIN-ROLL .250X1.75

$0.99

$

In Stock, Qty 20+

0

3

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05402500

BRG-FLG .751X2 HOLESX.81

$23.99

$

Usually ships in 4-12 days

0

6

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

8

Ariens 03603100

TUBE .754 X .999 X 5.00

$

$

Not available

9

Ariens 05808400

PIN-ROLL .250X1.000

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 03351700

COLUMN, STEERING

$124.99

$

Usually ships in 4-12 days

0

11

Ariens 03649600

CONE- STEERING COLUMN

$

$

Not available

12

Ariens 03672951

BRACKET-STEERING GEAR

$46.99

$

Usually ships in 4-12 days

0

13

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

14

Ariens 05508000

BSHG-FLG .750X1.093X.625X1.375

$19.99

$

Usually ships in 4-12 days

0

15

Ariens 03493500

GEAR, STEERING
(Superseded to 03669600)

$155.99

$

Usually ships in 4-12 days

0

16

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

17

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

18

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 03351800

ARM, STEERING ROD

$

$

Not available

22

Ariens 06538000

NUT-LK .563-18 GR5 YWZC

$

$

Not available

23

Ariens 03563100

ROD END, .38 RH

$15.99

$

In Stock, only 2 left!

0

24

Ariens 07006300

BLT-BTHD .38-16X1.25 GR5

$2.99

$

Usually ships in 4-12 days

0

25

Ariens 06534700

NUT-JAM .375-24 YWZC
(Superseded to 06500739)

$2.49

$

In Stock, only 1 left!

0

26

Ariens 02913300

PIN .249X1.125 DRIV-LOK SP

$17.99

$

Usually ships in 4-12 days

0

27

Ariens 02902100

PINION GEAR-STEERING

$64.99

$

In Stock, only 1 left!

0

28

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 05522100

BSHG-SLV .377X.624X.370

$4.99

$

Usually ships in 4-12 days

0

30

Ariens 03647900

ROD - TIE
(Superseded to 03668500)

$77.99

$

Usually ships in 4-12 days

0

31

Ariens 03648000

LINK - DRAG
(Superseded to 03668600)

$

$

Not available

32

Ariens 03664300

ARM - STEERING SPINDLE

$

$

Not available

33

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

34

Ariens 05505700

BSHG-SLV .750X.814X .750 BRZ

$17.99

$

In Stock, only 1 left!

0

35

Ariens 03664400

SPINDLE - LH

$293.99

$

Usually ships in 4-12 days

0

35

Ariens 03664500

SPINDLE - RH

$129.99

$

Usually ships in 4-12 days

0

36

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

37

Ariens 03646600

AXLE, FRONT

$

$

Not available

38

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

39

Ariens 07149400

TIRE/WHEEL ASSY 15 X6.00-2 PLY

$148.99

$

Usually ships in 4-12 days

0

39

Ariens 07149500

WHEEL W/BEARINGS

$

$

Not available

39

Ariens 05520700

BSHG .75 BORE
(Superseded to 05434900)

$13.99

$

In Stock, Qty 20+

0

39

Ariens 07047000

FTG- LUBE .25-28X.97

$

$

Not available

39

Ariens 07109900

TIRE

$

$

Not available

39

Ariens 05434900

BRG-BALL .752X1.380X.500

$13.99

$

In Stock, Qty 20+

0

40

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

41

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

42

Ariens 05522700

BSHG-SLV .377X.623X.775 HEX

$15.99

$

Usually ships in 4-12 days

0

43

Ariens 05522000

BSHG-SLV .626X1.000X.524 HEX

$90.99

$

Usually ships in 4-12 days

0

44

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06443400

WSHR-FL-STL .380X1.50X.125YWZC
(Superseded to 06401106)

$3.49

$

In Stock, Qty 8

0

46

Ariens 05802100

PIN-ROLL .188X1.13

$1.99

$

Usually ships in 4-12 days

0

47

Ariens 06537400

NUT-JAM .375-24 LH YWZC
(Superseded to 06500924)

$3.99

$

Usually ships in 4-12 days

0

48

Ariens 03668700

END, ROD-.38 LH

$15.99

$

Usually ships in 4-12 days

0

49

Ariens 05531900

BSHG-SLV .753 X 2.00 SELF LUB.

$11.99

$

In Stock, only 1 left!

0
