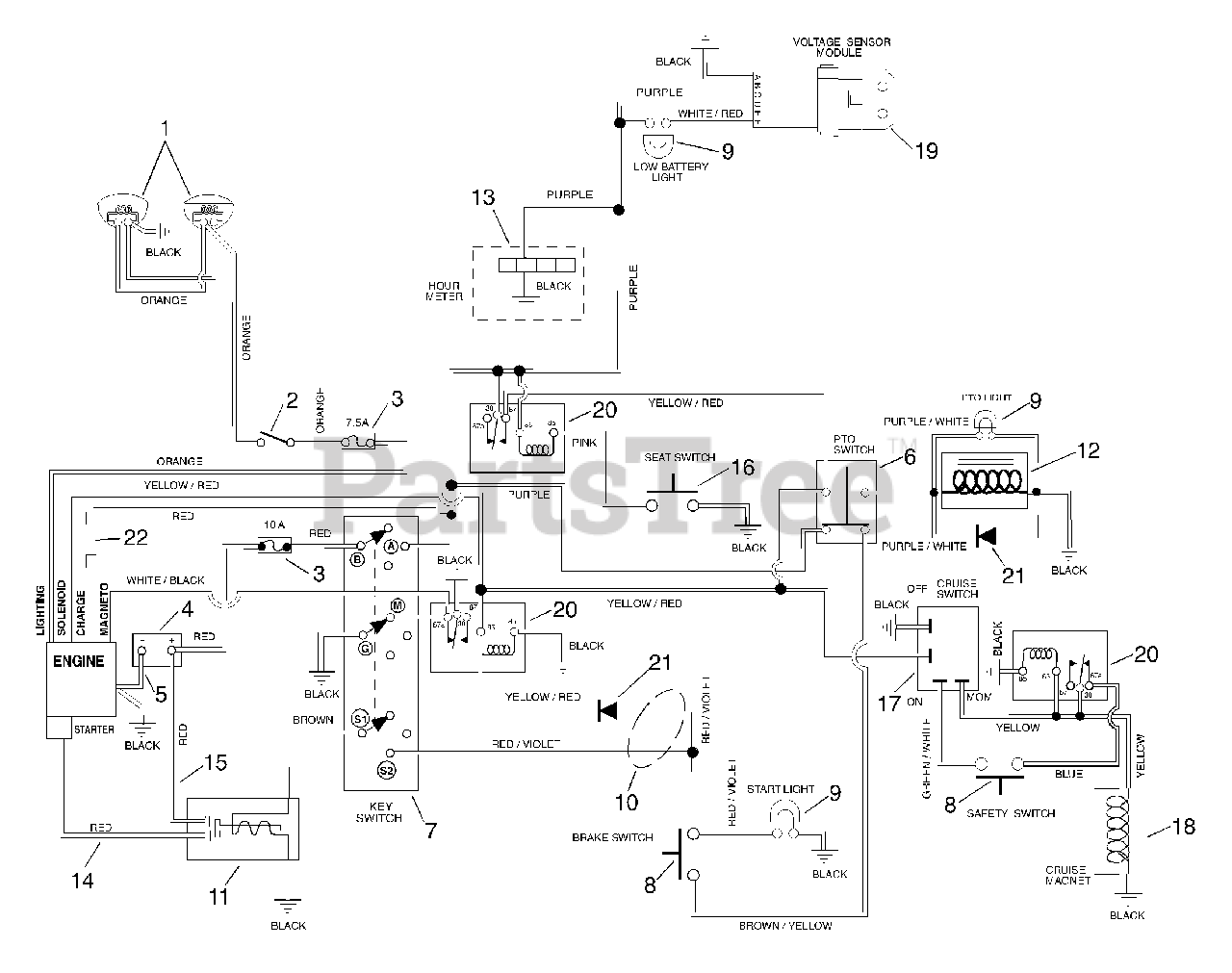

936310 (1540 H) - Ariens Sierra 40" Yard Tractor, 15hp Briggs & Stratton, Hydro (SN: 000101 & Above) Wiring Diagram Parts Diagram

Sierra 40" Yard Tractor, 15hp Briggs & Stratton, Hydro

Wiring Diagram Parts Diagram

  • Title

1

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

1

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

2

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

3

7.5 AMP Fuse

$

$

Not available

3

10 AMP Fuse

$

$

Not available

4

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

5

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

7

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 1 left!

0

8

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

9

#194 Bulb

$

$

Not available

10

Ariens 03672200

HARNESS, WIRING 1440 B&S

$

$

Not available

11

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

12

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$258.99

$

In Stock, only 1 left!

0

13

Ariens 73600800

HOURMETER KIT- SIERRA

Note: (Optional)

$

$

Not available

14

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

15

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 1 left!

0

16

Ariens 03654200

SWITCH- SEAT

$

$

Not available

17

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

18

Ariens 03359700

MAGNET

$

$

Not available

19

Ariens 03653300

MODULE - VOLTAGE SENSOR

$62.99

$

Usually ships in 4-12 days

0

20

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

21

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0

22

Ariens 01544800

WIRE HARNESS ADAPTOR (BRIGGS)

$34.99

$

Usually ships in 4-12 days

0
