936307 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 - 000300) 40" Hanger Arm Parts Diagram

Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro

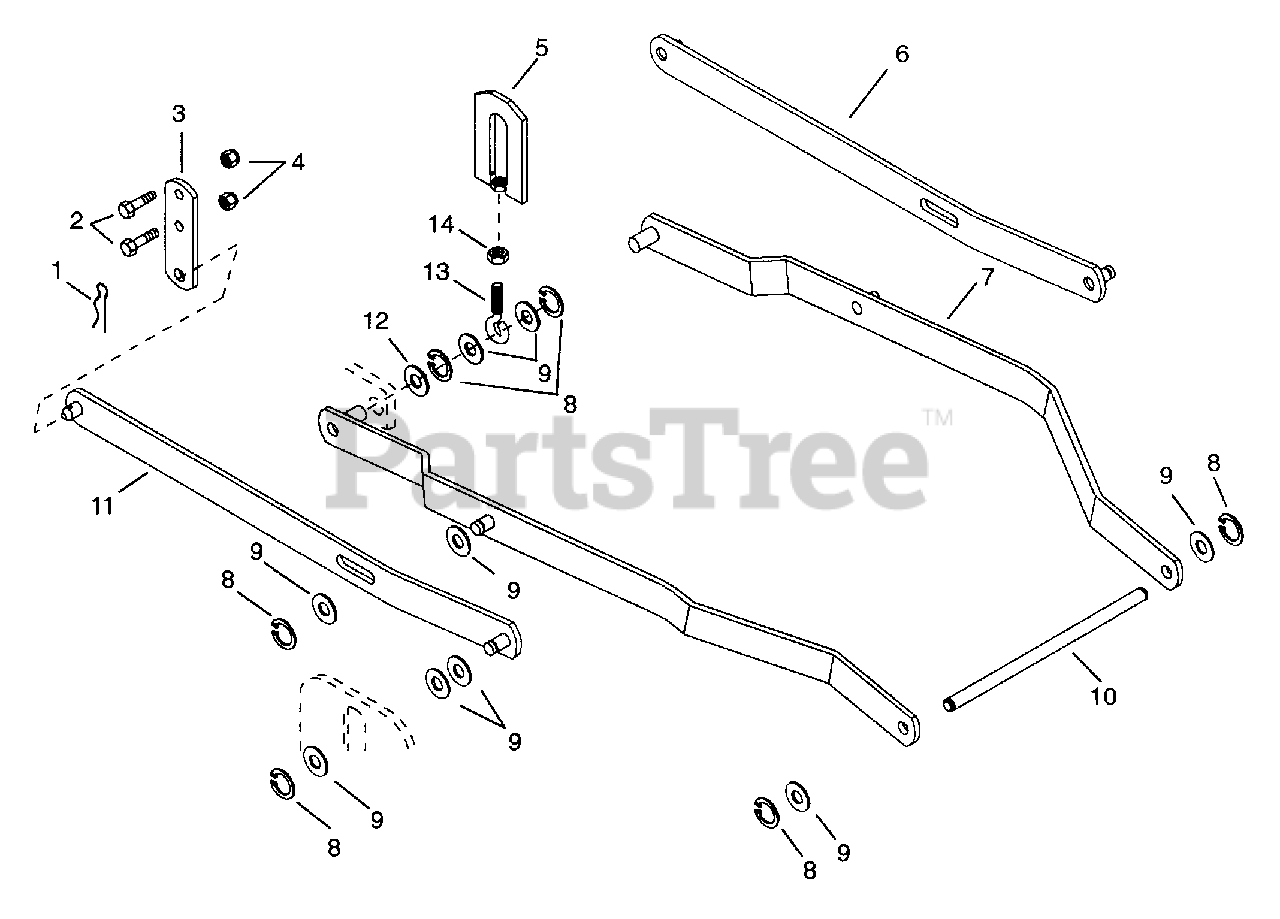

40" Hanger Arm Parts Diagram

  • Title

1

Ariens 06703700

PIN-HAIR EXT .12X.31X2.37 PL
(Superseded to 06711900)

$2.99

$

In Stock, only 2 left!

0

2

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 03588700

HANGER BRACKET
(Superseded to 03588751)

$30.99

$

Usually ships in 4-12 days

0

4

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

5

Ariens 03486400

LINK, ADJUSTMENT

$43.99

$

Usually ships in 4-12 days

0

6

Ariens 03655900

REAR HANGER LH
(Superseded to 53605300)

$

$

Not available

7

Ariens 03623400

LH LIFT ARM
(Superseded to 53605300)

$

$

Not available

8

Ariens 05717100

RG-RTNG-EXT .500X.050 (SNAP)

$2.49

$

In Stock, Qty 8

0

9

Ariens 06400300

WSHR-FL-STL .531X1.062X.095 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 03622000

PIN
(Superseded to 53602400)

$54.99

$

Usually ships in 4-12 days

0

11

Ariens 03655800

REAR HANGER RH
(Superseded to 53605400)

$

$

Not available

12

Ariens 06420100

WSHR-FL-STL .531X1.250X.100 PL
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 03624500

HANGER

$

$

Not available

14

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 03623500

RH LIFT ARM
(Superseded to 53605400)

$

$

Not available
