936306 (1440 H) - Ariens Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000300) Exhaust Parts Diagram

Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Hydro

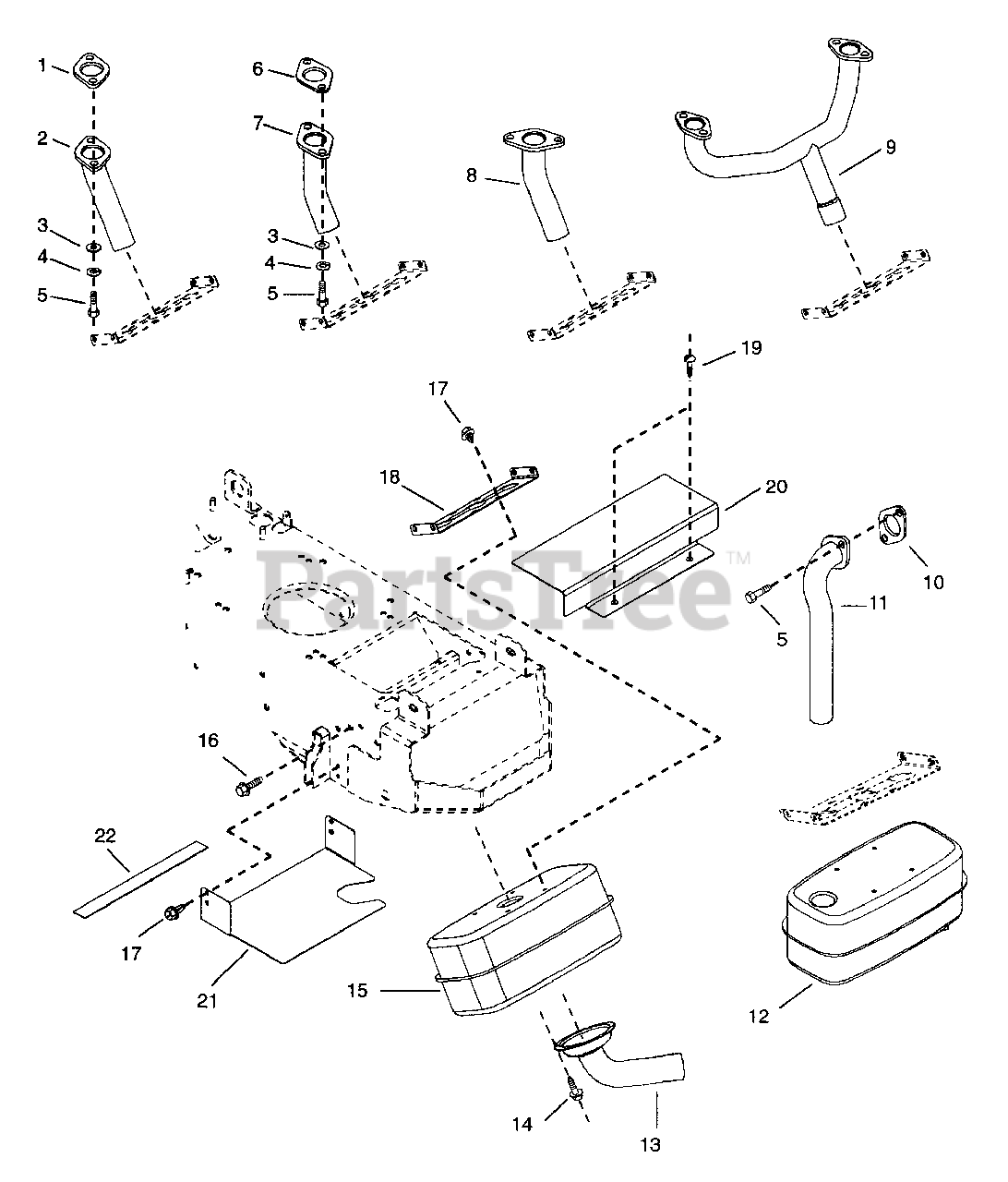

Exhaust Parts Diagram

  • Title

1

Ariens 03615000

GASKET- 12.5/13 TEC (#35-414)

Note: (Used Only On Model(s): 014,016).

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 03648400

TUBE - EXHAUST WELD. 13 HP

Note: (Used Only On Model(s): 014,016).

$

$

Not available

3

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

4

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (Used Only On Model(s): 014,016,020).

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (Used Only On Model(s): 014,016,017,019,020,305,306).

$2.49

$

In Stock, only 3 left!

0

6

Ariens 03616200

GASKET:15-16.5HP TEC (#35-438)

Note: (Used Only On Model(s): 020).

$9.99

$

Usually ships in 4-12 days

0

7

Ariens 03648500

TUBE - EXHAUST WELD 15-16.5 HP

Note: (Used Only On Model(s): 020).

$

$

Not available

8

Ariens 03656200

PIPE - EXHAUST

Note: (Used Only On Model(s): 018).

$85.99

$

Usually ships in 4-12 days

0

9

Ariens 03648700

PIPE - EXHAUST TWIN B&S

Note: (Used Only On Model(s): 307).

$

$

Not available

10

Ariens 03652700

GASKET B&S#272293

Note: (Used Only On Model(s): 015,017,019,305,306).

$8.99

$

Usually ships in 4-12 days

0

11

Ariens 03656100

PIPE - EXHAUST

Note: (Used Only On Model(s): 015,017,019,305,306).

$

$

Not available

12

Ariens 03654400

MUFFLER W/DEFLECTOR

Note: (Used Only On Model(s): 015,017,019,305,306).

$138.99

$

Usually ships in 4-12 days

0

13

Ariens 03656300

DEFLECTOR - EXHAUST

Note: (Used Only On Model(s): 014,016,018,020,307).

$57.99

$

Usually ships in 4-12 days

0

14

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

Note: (Used Only On Model(s): 014,016,018,020,307).

$2.49

$

Usually ships in 4-12 days

0

15

Ariens 03654300

MUFFLER - EXHAUST

Note: (Used Only On Model(s): 014,016,018,020,307).

$157.99

$

In Stock, only 2 left!

0

16

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

18

Ariens 03648600

BRACKET - MUFFLER

$

$

Not available

19

Ariens 07409900

SCR-TAP .312-18X.50 PL F

Note: (Used Only On Model(s): 307).

$

$

Not available

20

Ariens 03358300

SHIELD - HEAT

Note: (Used Only On Model(s): 307).

$

$

Not available

21

Ariens 03657800

SHIELD - HEAT
(Superseded to 53407200)

$

$

Not available

22

Ariens 03658900

HEAT SHIELD- FABRIC 1X10.75

$

$

Not available
