936306 (1440 H) - Ariens Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Hydro (SN: 000101 - 000300) Electrical Parts Diagram

Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Hydro

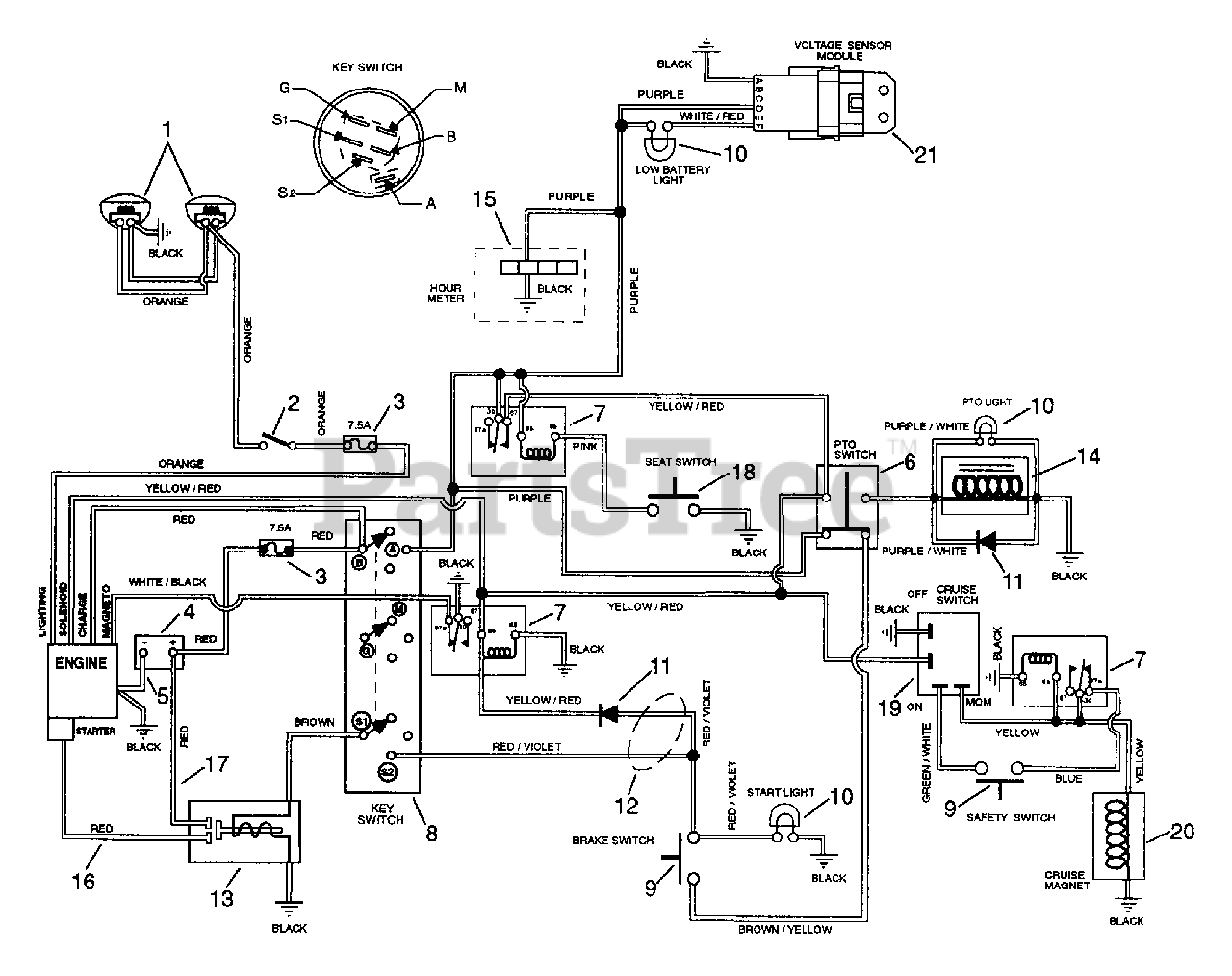

Electrical Parts Diagram

  • Title

1

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

2

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

3

7.5 AMP Fuse

$

$

Not available

4

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

5

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

7

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

8

Ariens 03602300

KEY SWITCH

$26.99

$

Usually ships in 4-12 days

0

9

Ariens 03657100

SWITCH- SINGLE POLE N.O.

$9.49

$

In Stock, only 2 left!

0

10

#194 Bulb

$

$

Not available

11

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0

12

Ariens 03658300

WIRE HARNESS - 1440H B&S
(Superseded to 03672200)

$

$

Not available

13

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

14

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$258.99

$

In Stock, only 1 left!

0

15

Ariens 73600800

HOURMETER KIT- SIERRA

Note: (Optional)

$

$

Not available

16

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

17

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 1 left!

0

18

Ariens 03654200

SWITCH- SEAT

$

$

Not available

19

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

20

Ariens 03655300

MAGNET
(Superseded to 03359700)

$

$

Not available

21

Ariens 03653300

MODULE - VOLTAGE SENSOR

$62.99

$

Usually ships in 4-12 days

0
