936301 (LT 12 G) - Ariens 32" Lawn Tractor, 12hp Briggs & Stratton, Gear (SN: 000101 & Above) Rear Wheel & Gear Drive Parts Diagram

32" Lawn Tractor, 12hp Briggs & Stratton, Gear

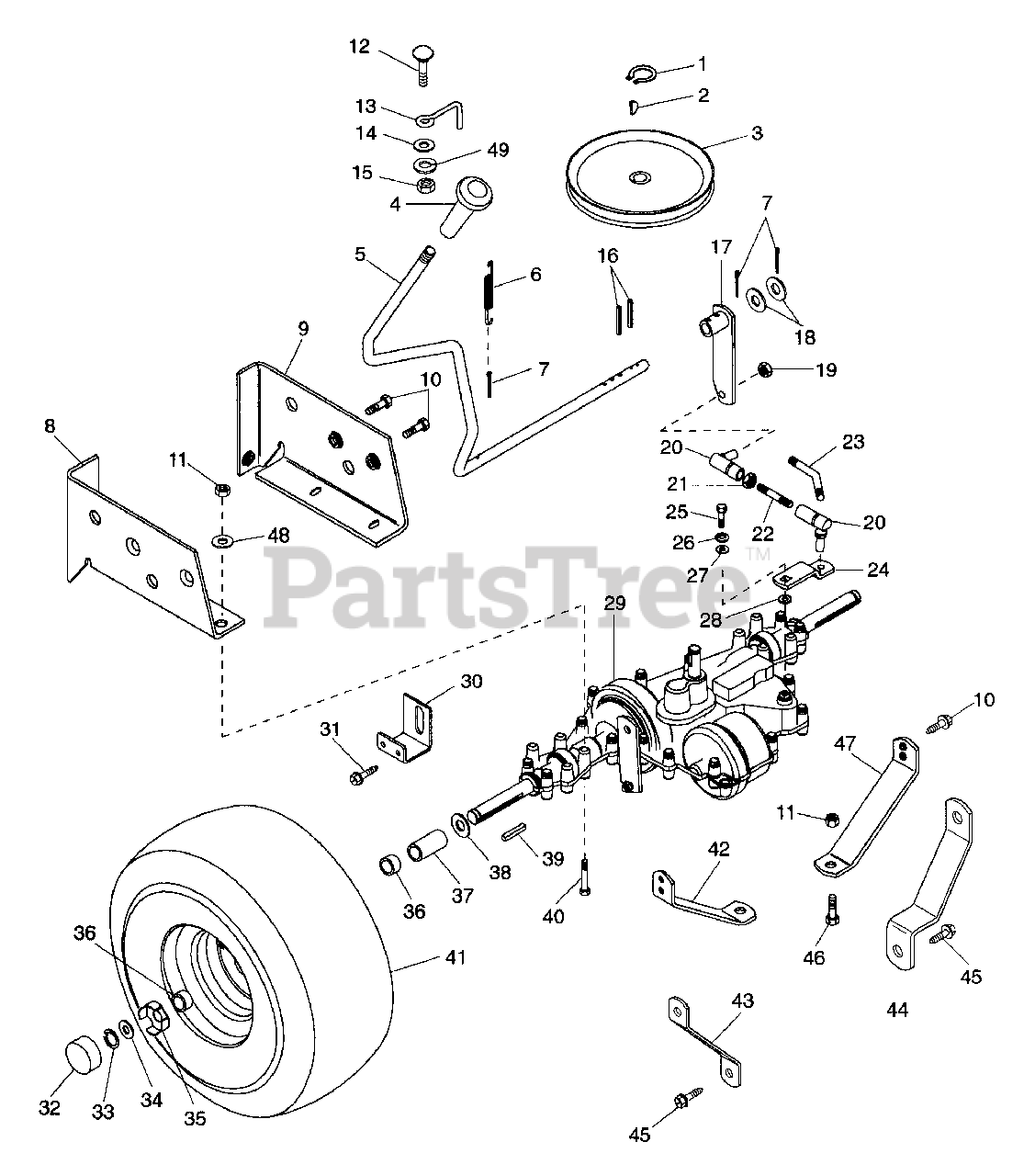

Rear Wheel & Gear Drive Parts Diagram

  • Title

1

Ariens 05701900

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

3

Ariens 07309100

PLY-TRANS 7.00X.626

$

$

Not available

4

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

5

Ariens 03637500

LEVER - SHIFT

$

$

Not available

6

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

7

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

Note: (Used Only On Model(s): 009).

$0.99

$

In Stock, Qty 10

0

7

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

Note: (Used Only On Model(s): 936006,936301,936302).

$0.99

$

In Stock, Qty 10

0

8

Ariens 03617700

MOUNT- TRANS. RH

$

$

Not available

9

Ariens 03620100

MOUNT- TRANS. LH

$

$

Not available

10

Ariens 07402200

SCR-TAP .375-16X.75 HWH PL TR
(Superseded to 07415400)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

13

Ariens 03638300

FINGER - BELT

$51.99

$

Usually ships in 4-12 days

0

14

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

16

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

17

Ariens 03638100

ARM & HUB

Note: (Used Only On Model(s): 009).

$

$

Not available

17

Ariens 03638700

ARM & HUB

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

18

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (Used Only On Model(s): 009).

$2.49

$

In Stock, only 2 left!

0

18

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

Note: (Used Only On Model(s): 936006,936301,936302).

$2.49

$

In Stock, only 2 left!

0

19

Ariens 06504300

NUT-LK-CTR .312-24 PL
(Superseded to 06537000)

$

$

Not available

20

Ariens 03645500

BALL JOINT- SNAP IN

$

$

Not available

21

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

$0.99

$

In Stock, Qty 13

0

22

Ariens 03605200

SHIFT LINK

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

23

Ariens 03638200

LINK - SHIFT

Note: (Used Only On Model(s): 009).

$

$

Not available

24

Ariens 03603500

SHIFT ARM

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

24

Ariens 03638600

ARM - SHIFT 6 SPD

Note: (Used Only On Model(s): 009).

$

$

Not available

25

Ariens 05931000

BLT-HEX .25-28X.75 PL GR8
(Superseded to 05970000)

$2.49

$

Usually ships in 4-12 days

0

26

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

27

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

28

Ariens 06405800

WSHR-FL-STL .505X1.000X.062
(Superseded to 06439200)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 03629000

TRANSAXLE-GEAR 5-SPD 940-011A

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

29

Ariens 03631300

TRANSAXLE-GEAR 6-SPD 930-051A
(Superseded to 03652600)

Note: (Used Only On Model(s): 009).

$646.99

$

Usually ships in 4-12 days

0

30

Ariens 03603400

SHIFT GUIDE BRACKET

$11.99

$

Usually ships in 4-12 days

0

31

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

33

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

34

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

35

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

36

Ariens 03604800

SPACER .760X1.000X.575

Note: (Used Only On Model(s): 006,301).

$

$

Not available

37

Ariens 05510400

BSHG-SLV .750X1.125X1.062

Note: (Used Only On Model(s): 009,302).

$

$

Not available

38

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

39

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

40

Ariens 05916300

BLT-HEX .31-18X2.50 PL GR5
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 07126900

T/WHL ASSY 20X8.00-8

Note: (Used Only On Model(s): 009,302).

$

$

Not available

41

Ariens 07133100

RIM
(Superseded to 07153600)

Note: (Used Only On Model(s): 009,302).

$

$

Not available

41

Ariens 07133200

TIRE 20X10-8 2P TS TL

Note: (Used Only On Model(s): 009,302).

$102.99

$

Usually ships in 4-12 days

0

41

Ariens 07137100

T/WHL ASSY 18X6.50-8

Note: (Used Only On Model(s): 006,301).

$

$

Not available

41

Ariens 07137500

TIRE

Note: (Used Only On Model(s): 006,301).

$

$

Not available

42

Ariens 03617600

TORQUE STRAP- R

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

43

Ariens 03645100

TORQUE STRAP

Note: (Used Only On Model(s): 009).

$

$

Not available

44

Ariens 03638500

STRAP - TORQUE,LH 6 SPD

Note: (Used Only On Model(s): 009).

$

$

Not available

45

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

Note: (Used Only On Model(s): 009).

$1.49

$

In Stock, Qty 11

0

46

Ariens 05917000

BLT-HEX .31-18X2.00 PL GR5
(Superseded to 05957200)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 03615200

TORQUE STRAP- L

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

48

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

49

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0
