936099 (960460071-00) - Ariens 46" Lawn Tractor, Automatic Engine Parts Diagram

46" Lawn Tractor, Automatic

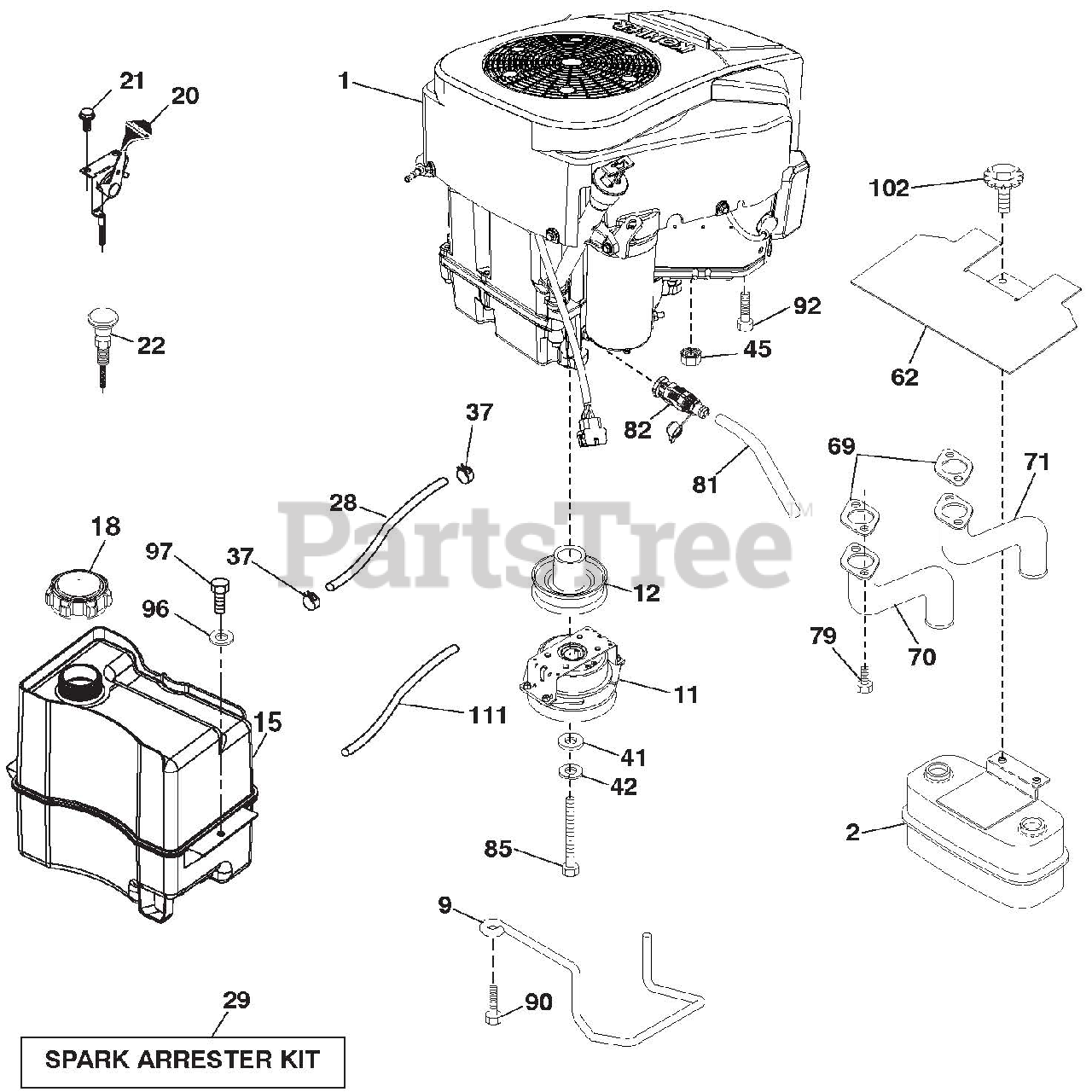

Engine Parts Diagram

  • Title
1

Ariens 21548068

KOHLER.ENGINE

Note: (585446101) (ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

2

Ariens 21548899

MUFFLER ASM.

$

$

Not available

9

Ariens 21548399

KEEPER.BELT.ENGINE

$

$

Not available

11

Ariens 21548941

ELECTRIC CLUTCH

$

$

Not available

12

Ariens 21546604

PULLEY.ENGINE.TUFFTORQE.1"CRK.

$

$

Not available

15

Ariens 21547730

TANK.FUEL.2.5.GAL.
(Superseded to 21547650)

$

$

Not available

18

Ariens 21548118

CAP.FUEL
(Superseded to 21547731)

$37.99

$

Usually ships in 4-12 days

0

20

Ariens 21548018

CONTROL.THROTTLE
(Superseded to 21546211)

$47.99

$

In Stock, only 3 left!

0

21

$

$

Not available

22

Ariens 21547761

CONTROL CHOKE
(Superseded to 21547705)

$37.99

$

Usually ships in 4-12 days

0

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

62

Ariens 21547370

SHIELD.HEAT.MUFFLER.

$

$

Not available

69

$

$

Not available

70

Ariens 21548724

EXHAUST TUBE LH

$21.99

$

In Stock, only 1 left!

0

71

Ariens 21548725

EXHAUST TUBE RH

$

$

Not available

79

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, only 4 left!

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$6.99

$

In Stock, Qty 6

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, Qty 5

0

85

Ariens 21547306

BOLT.HEX.7/16-20 X 3.75 X GR.

$6.99

$

Usually ships in 4-12 days

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

92

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

102

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

111

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0
