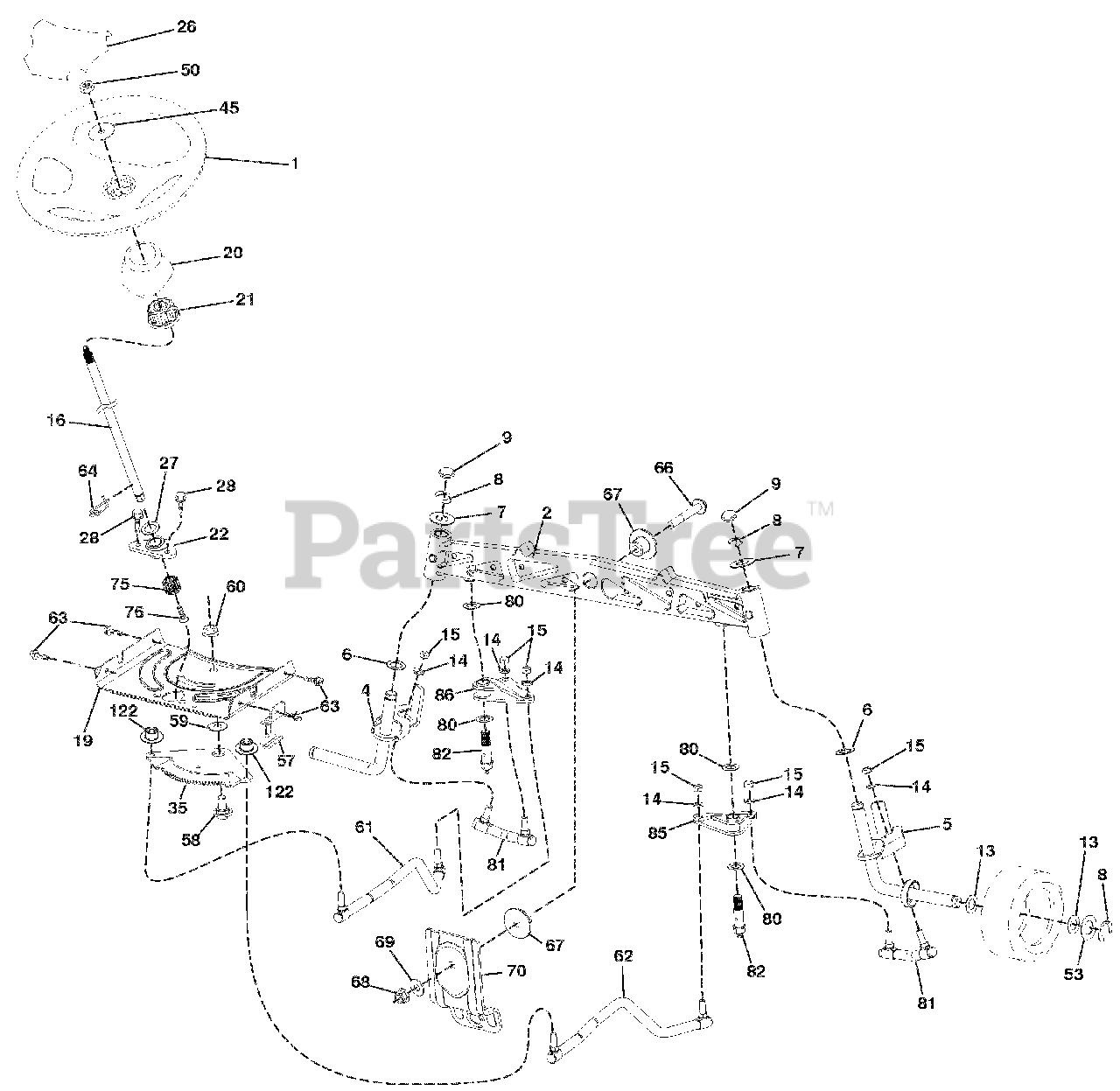

936097 (960460073-00) - Ariens 54" Lawn Tractor, Automatic Steering Parts Diagram

54" Lawn Tractor, Automatic

Steering Parts Diagram

  • Title

1

Ariens 21547582

WHEEL STEERING
(Superseded to 21547398)

$93.99

$

In Stock, only 1 left!

0

2

Ariens 21548946

AXLE

$203.99

$

Usually ships in 4-12 days

0

4

Ariens 21548947

SPINDLE LH

$56.99

$

Usually ships in 4-12 days

0

5

Ariens 21548948

SPINDLE RH

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 21547540

WAHSER THRUST .75 X 1.230
(Superseded to 21546750)

$7.49

$

In Stock, Qty 11

0

7

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

8

Ariens 21546053

RING.KLIP.#T5304-75

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 21546064

CAP.SPINDLE.FR.TOP.BLK.

$4.99

$

In Stock, Qty 9

0

13

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 21546003

Washer, Lock 3/8
(Superseded to 21546909)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 21546782

NUT.CROWNLOCK.3/8-24

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 21548916

SHAFT.STEER
(Superseded to 21548964)

$40.99

$

In Stock, Qty 14

0

19

Ariens 21546334

PLATE.STEER.DDL.NLT/NGT

$18.99

$

Usually ships in 4-12 days

0

20

Ariens 21548063

BOOT.STEERING

$11.99

$

In Stock, Qty 7

0

21

Ariens 21548917

ADAPTER.STEER

$9.49

$

In Stock, Qty 8

0

22

Ariens 21548943

BUSHING

$17.99

$

In Stock, only 4 left!

0

26

Ariens 21547568

CAP WHEEL STEERING HRS/SRS BLK

$7.99

$

In Stock, only 1 left!

0

27

Ariens 21547073

Washer 21/32 x 1 x 16 Ga.

$

$

Not available

28

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 21548949

GEAR SECTOR

$37.99

$

Usually ships in 4-12 days

0

45

Ariens 21548919

WASHER

$6.99

$

Usually ships in 4-12 days

0

50

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 21546272

WASHER.HARDEN..793 X 1.637X060

$4.99

$

In Stock, Qty 20+

0

57

Ariens 21546418

BRACKET.UPSTOP.GT/LT.TEX

$

$

Not available

58

Ariens 21546339

BOLT.SHOULDER.SECTOR.PIVOT.CFM

$9.49

$

In Stock, only 3 left!

0

59

Ariens 21546340

WASHER.THRUST.SECTOR.STEER.NLT

$7.49

$

In Stock, only 3 left!

0

60

Ariens 21546797

NUT.FLANGE LOCK.5/8-11
(Superseded to 06500509)

$3.99

$

In Stock, only 3 left!

0

61

Ariens 21548944

DRAG LINK LH

$36.99

$

Usually ships in 4-12 days

0

62

Ariens 21548945

DRAG LINK RH

$

$

Not available

63

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

64

Ariens 21546512

RETAINER.CLIP.SPRING.STEERING

$6.49

$

In Stock, Qty 9

0

66

Ariens 21546754

BOLT.HEX.FGHD.7/16-14 X 3.SERR

$6.49

$

In Stock, only 4 left!

0

67

Ariens 21546336

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Ariens 21546791

NUT.LOCK.FLANGE.7/16-14.GR5

$7.49

$

In Stock, Qty 13

0

69

Ariens 21546483

WASHER.1.5 X .505 X .118

$6.49

$

In Stock, only 1 left!

0

70

Ariens 21548851

BRACKET

$

$

Not available

75

Ariens 21549002

PINION

$11.99

$

Usually ships in 4-12 days

0

76

Ariens 21548921

SCREW

$6.99

$

Usually ships in 4-12 days

0

80

Ariens 21548950

WASHER

$6.99

$

In Stock, only 2 left!

0

81

Ariens 21548951

SUB ASM LINK

$18.99

$

Usually ships in 4-12 days

0

82

Ariens 21548952

SUB ASM PIVOT BOLT

$10.99

$

In Stock, only 2 left!

0

85

Ariens 21548953

SUB ASM PIVOT RH

$

$

Not available

86

Ariens 21548954

SUB ASM PIVOT LH

$37.99

$

Usually ships in 4-12 days

0

122

Ariens 21547948

CAP GEAR SECTOR

$6.49

$

In Stock, only 3 left!

0
