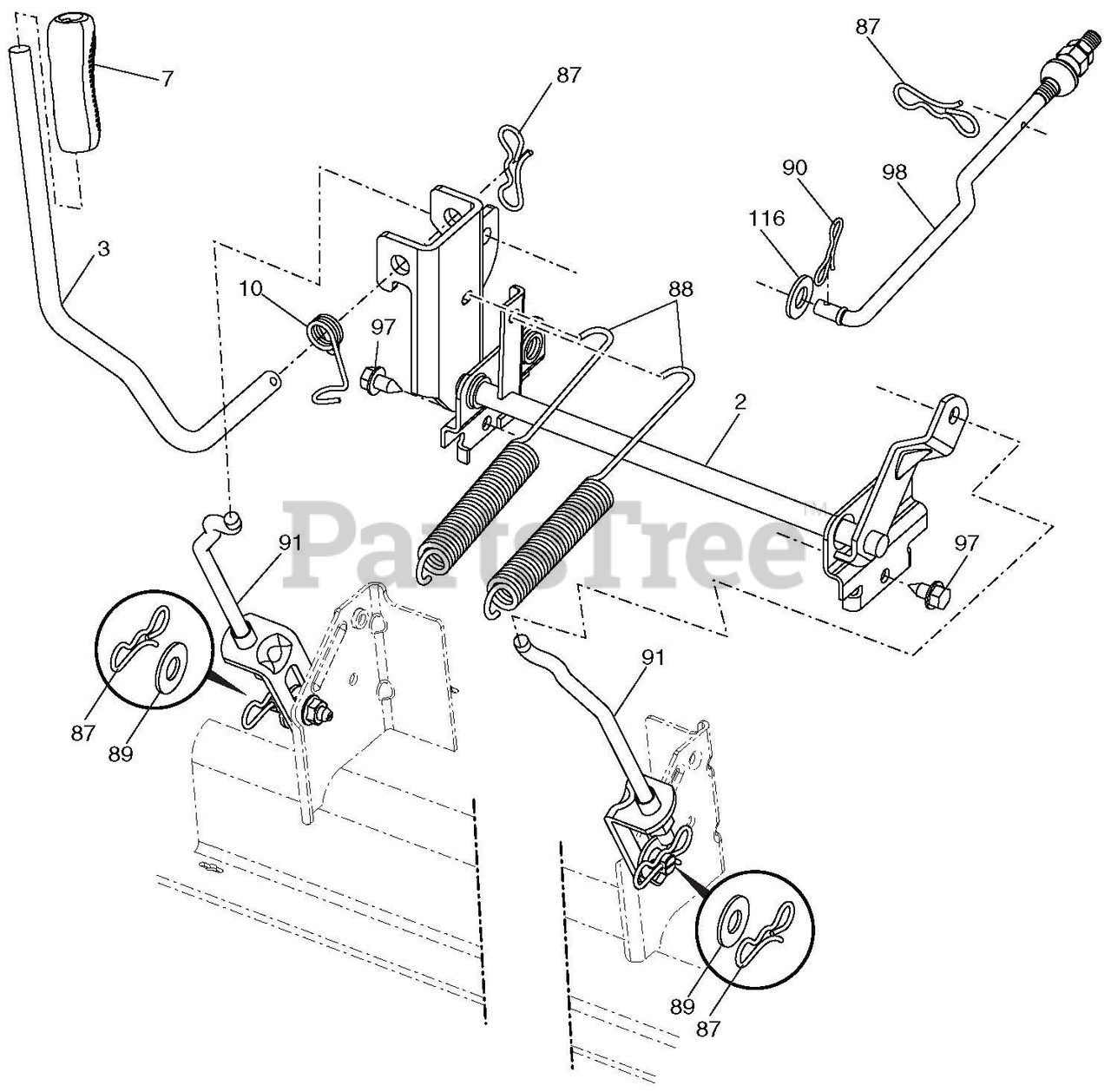

936096 (960460074-00) - Ariens 54" Lawn Tractor, Automatic Mower Lift Parts Diagram

54" Lawn Tractor, Automatic

Mower Lift Parts Diagram

  • Title
2

Ariens 21547240

SHAFT ASM.LIFT.CROSS.HD.
(Superseded to 21547008)

$109.99

$

In Stock, only 1 left!

0

3

Ariens 21547313

LEVER ASM., LIFT RH

$18.99

$

Usually ships in 4-12 days

0

7

Ariens 21548049

GRIP LEVER 5625 LD BLACK 428

$9.49

$

In Stock, only 1 left!

0

10

Ariens 21546397

SPRING.TORSION.HANDLE.LIFT

$6.49

$

In Stock, only 2 left!

0

87

Ariens 21546322

PIN.COTTER.7/16.BOW TIE LOCK

$3.99

$

In Stock, only 1 left!

0

88

Ariens 21547314

SPRING LIFT ASSIST

$

$

Not available

89

Ariens 21546292

WASHER.CLEAR ZINC

$6.49

$

In Stock, Qty 20+

0

90

Ariens 21546321

PIN.COTTER.5/16.BOW TIE LOCK

$3.99

$

Usually ships in 4-12 days

0

91

Ariens 21546592

LINK ASM.LIFT.54"TG

$

$

Not available

97

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

98

Ariens 21546359

LINK ASM.SUSP.FRONT.MWR.10.5

$

$

Not available

116

Ariens 21549004

WASHER 15/32 X 15/16 X 16 GA.

$

$

Not available
