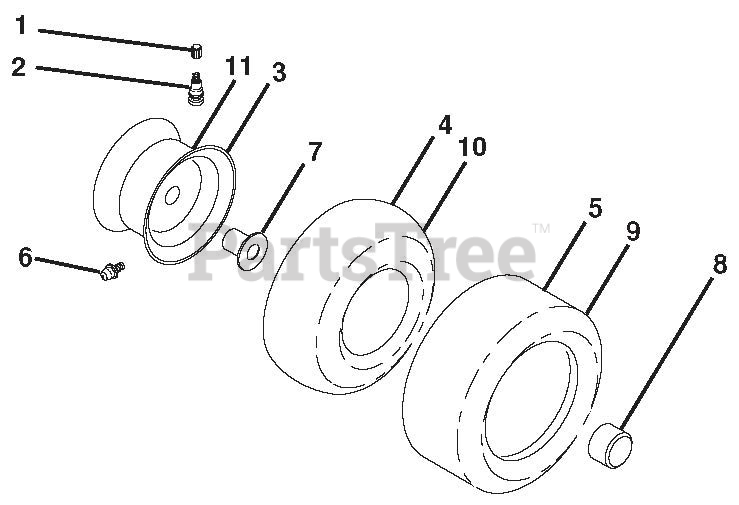

936094 (960460068-00) - Ariens 42" Lawn Tractor, Gear Wheels And Tires Parts Diagram

42" Lawn Tractor, Gear

Wheels And Tires Parts Diagram

  • Title

1

Ariens 21546747

CAP.VALVE.TIRE

$4.99

$

In Stock, Qty 20+

0

2

Ariens 21546751

STEM.VALVE

$9.99

$

In Stock, only 1 left!

0

3

Ariens 21547813

RIM ASSEMBLY 6" FRONT

$91.99

$

In Stock, only 4 left!

0

4

Ariens 21546748

TUBE.INNER.FRONT.#35060

$37.99

$

In Stock, Qty 7

0

5

Ariens 21546034

TIRE.F.TS.15 X 6.0 - 6.SERVICE

$129.99

$

Usually ships in 4-12 days

0

6

Ariens 21546037

RIM ASM.6"FRONT.BLACK.SERVICE

$193.99

$

In Stock, only 1 left!

0

7

Ariens 21547542

BEARING FLANGE
(Superseded to 21546832)

$7.99

$

In Stock, Qty 20+

0

8

Ariens 21547547

CAP AXLE (FRONT WHEEL ONLY)

Note: (FRONT WHEEL ONLY)

$4.99

$

In Stock, Qty 20+

0

9

Ariens 21546094

TIRE.R.TS.20 X 8-8.C.SERVICE

$

$

Not available

10

Ariens 21547539

TUBE, REAR

$

$

Not available

11

Ariens 21547814

RIM ASSEMBLY 8" REAR

$

$

Not available

- -

Ariens 21546845

SEALANT, TIRE (10 OZ. TUBE)
(Superseded to 21549051)

Note: (10 OZ. TUBE) NOT SHOWN

$

$

Not available
