936094 (960460068-00) - Ariens 42" Lawn Tractor, Gear Mower Lift Parts Diagram

42" Lawn Tractor, Gear

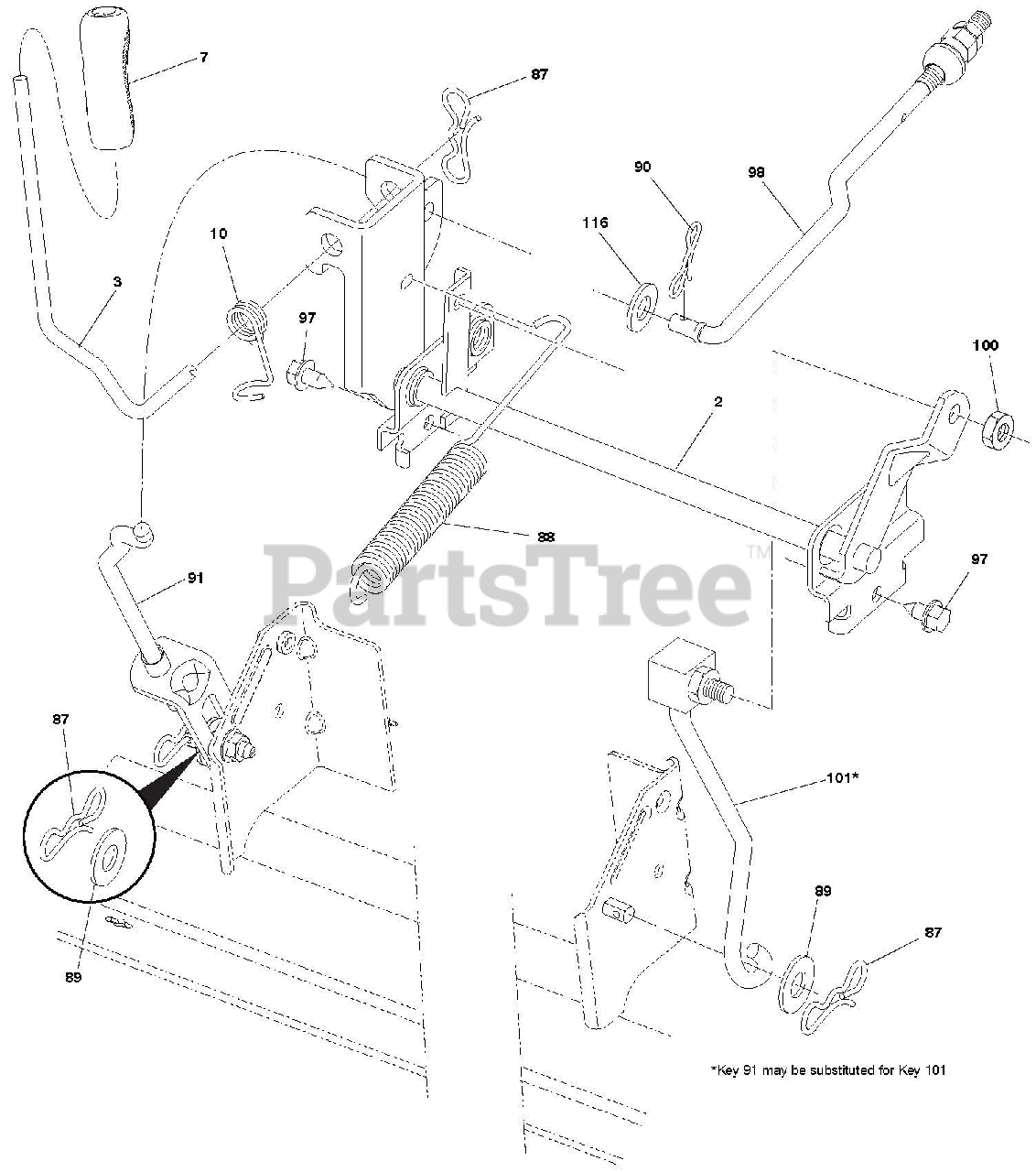

Mower Lift Parts Diagram

  • Title

2

Ariens 21547008

SHAFT ASM., LIFT

$109.99

$

In Stock, only 1 left!

0

3

Ariens 21546358

LEVER.LIFT.HANDLE.LT

$

$

Not available

7

Ariens 21548049

GRIP LEVER 5625 LD BLACK 428

$9.49

$

In Stock, only 1 left!

0

10

Ariens 21546397

SPRING.TORSION.HANDLE.LIFT

$6.49

$

In Stock, only 2 left!

0

87

Ariens 21546322

PIN.COTTER.7/16.BOW TIE LOCK

$3.99

$

In Stock, only 1 left!

0

88

Ariens 21546638

SPRING.LIFT ASSIST

$11.99

$

In Stock, Qty 6

0

89

Ariens 21546292

WASHER.CLEAR ZINC

$6.49

$

In Stock, Qty 20+

0

90

Ariens 21546321

PIN.COTTER.5/16.BOW TIE LOCK

$3.99

$

Usually ships in 4-12 days

0

91

Ariens 21546344

LINK ASM.LIFT.LH.REAR

$

$

Not available

97

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

98

Ariens 21546360

LINK ASM.SUSP.FRONT.MWR.11

$

$

Not available

100

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.49

$

In Stock, Qty 9

0

101

Ariens 21546620

LINK ASM.LIFT.FIXED.38/42/46"

$18.99

$

In Stock, only 1 left!

0

116

Ariens 21549004

WASHER 15/32 X 15/16 X 16 GA.

$

$

Not available
