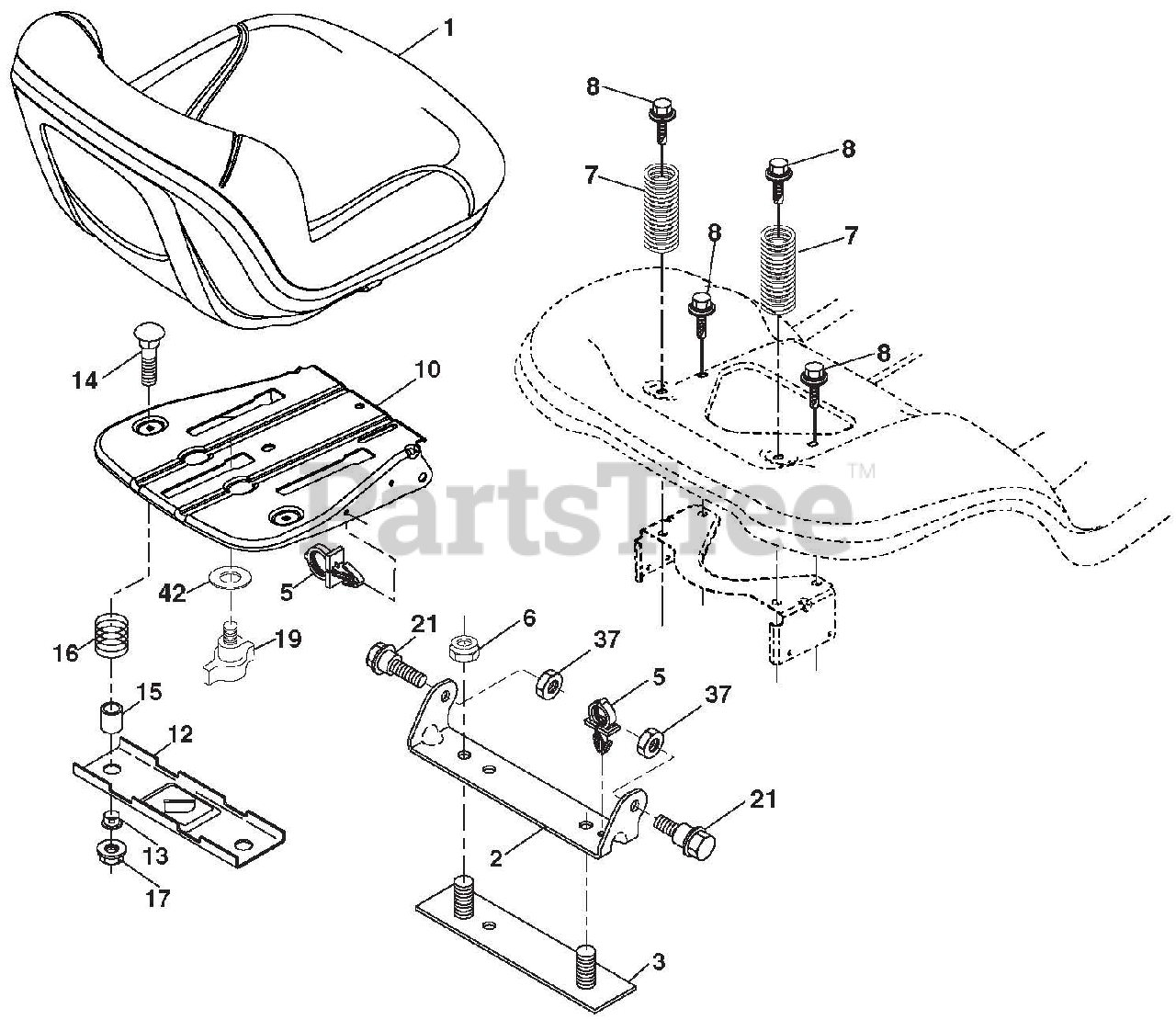

936093 (960460067-00) - Ariens 42" Lawn Tractor, Gear Seat Parts Diagram

42" Lawn Tractor, Gear

Seat Parts Diagram

  • Title
1

Ariens 21546702

SEAT.TA110.BLACK.ARIENS

$

$

Not available

2

Ariens 21546216

BRACKET.PIVOT.FENDER.2002

$

$

Not available

3

Ariens 21546101

STRAP ASM.FENDER.94

$

$

Not available

5

Ariens 21546110

CLIP.PUSH-IN.HINGED

$

$

Not available

6

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 21546074

SPRING.SEAT.CPRSN.2.250.BLK.ZI
(Superseded to 21549013)

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

10

Ariens 21547804

PAN, SEAT

$

$

Not available

12

Ariens 21546491

BRACKET.MNT.OPC.SW.SEAT.TEX LT
(Superseded to 21546492)

$

$

Not available

13

Ariens 21546065

BUSHING.SNAP.BLK.NYL..50 ID.

$6.49

$

Usually ships in 4-12 days

0

14

Ariens 21546759

BOLT.RDHD.SHT.NK.1/4-20X1-1/2

$

$

Not available

15

Ariens 21546086

SPACER.SPLIT..28X.96.YEL.ZINC

$13.99

$

In Stock, only 2 left!

0

16

Ariens 21546072

SPRING.CPRSN.PLATE.SW.1.310.GA

$

$

Not available

17

Ariens 21546073

NUT.LOCK.1/4 LGE.FLG.GR.5.ZINC

$

$

Not available

19

Ariens 21546495

KNOB.SEAT ADJ.3/8-16"TEX

$

$

Not available

21

Ariens 21546189

BOLT.SHLD.5/16-18 UNC-2A.BLK D

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

42

Ariens 21546493

WASHER.CUP.SEAT.TEX LT
(Superseded to 21546494)

$

$

Not available
