936085 (960460063-01) - Ariens 46" Lawn Tractor, Automatic Electrical Parts Diagram

46" Lawn Tractor, Automatic

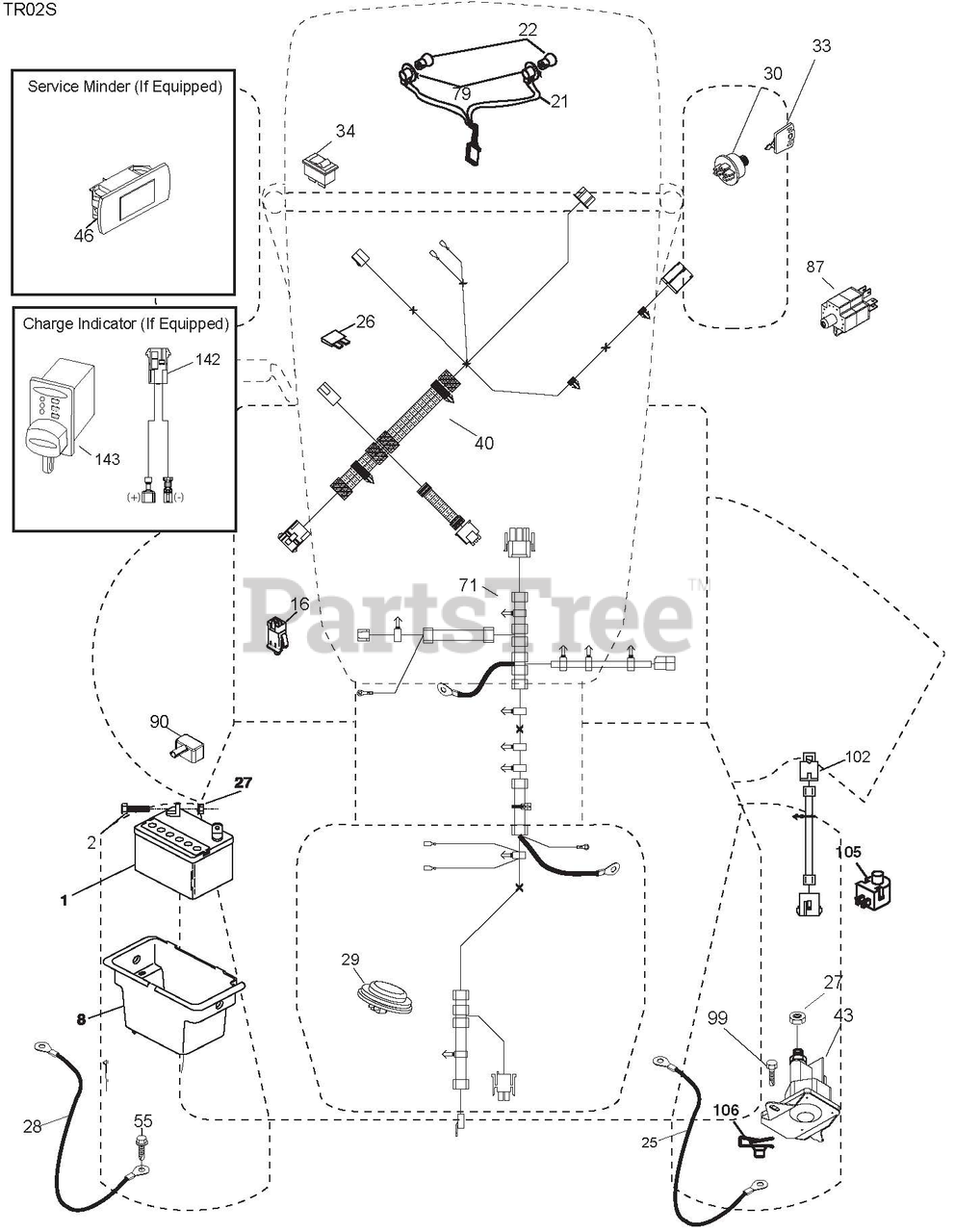

Electrical Parts Diagram

  • Title

1

Ariens 21546162

BATTERY.12.VOLT.28.AMP.WET

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$7.49

$

In Stock, Qty 10

0

8

Ariens 21546315

BOX.BATTERY.MNT.REAR.LT.TEX.BL

$28.99

$

In Stock, only 4 left!

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$22.99

$

In Stock, Qty 20+

0

21

Ariens 21547584

HARNESS ASM.LIGHT.22"(4152J)
(Superseded to 21546226)

$

$

Not available

22

Ariens 21546673

BULB.LIGHT.#1156

$7.99

$

In Stock, only 1 left!

0

25

Ariens 21548381

CABLE STARTER 6 G4. BL/RED14.5

$11.99

$

In Stock, only 1 left!

0

26

Ariens 21546200

FUSE.20 AMP.

$7.49

$

In Stock, Qty 20+

0

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 21548382

CABLE.BLACK.22"REAR BATT.TEX

$25.99

$

In Stock, only 2 left!

0

29

Ariens 21546574

SWITCH.SEAT.DELTA.OPC.9LB.

$39.99

$

In Stock, Qty 20+

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$22.99

$

In Stock, Qty 20+

0

33

Ariens 21547339

KEY/CHAIN.BLISTER PACK.GEN.USA

$9.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$9.49

$

In Stock, Qty 11

0

40

Ariens 21548573

HARNESS.TEX.DASH (ELECTRICAL)

$

$

Not available

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$26.99

$

Usually ships in 4-12 days

0

55

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

In Stock, only 2 left!

0

71

Ariens 21548384

HARNESS.IGN.CHASSIS.TEX

$66.99

$

In Stock, Qty 7

0

79

Ariens 21546201

SOCKET ASM.BULB.TWISTLOCK

$22.99

$

Usually ships in 4-12 days

0

87

Ariens 21546457

SWITCH.INTRLCK.CLUTCH.CABLE.TX

$18.99

$

In Stock, Qty 20+

0

90

Ariens 21547570

COVER TERMINAL BATTERY FR. TEX

$4.99

$

Usually ships in 4-12 days

0

99

Ariens 21548385

SCREW

$4.99

$

In Stock, only 1 left!

0

102

Ariens 21548309

HARNESS.PIGTAIL

$45.99

$

Usually ships in 4-12 days

0

105

Ariens 21546625

SWITCH.REVERSE.TT.PEDAL CONTRO

$18.99

$

In Stock, Qty 8

0

106

Ariens 21548386

PALNUT

$

$

Not available
