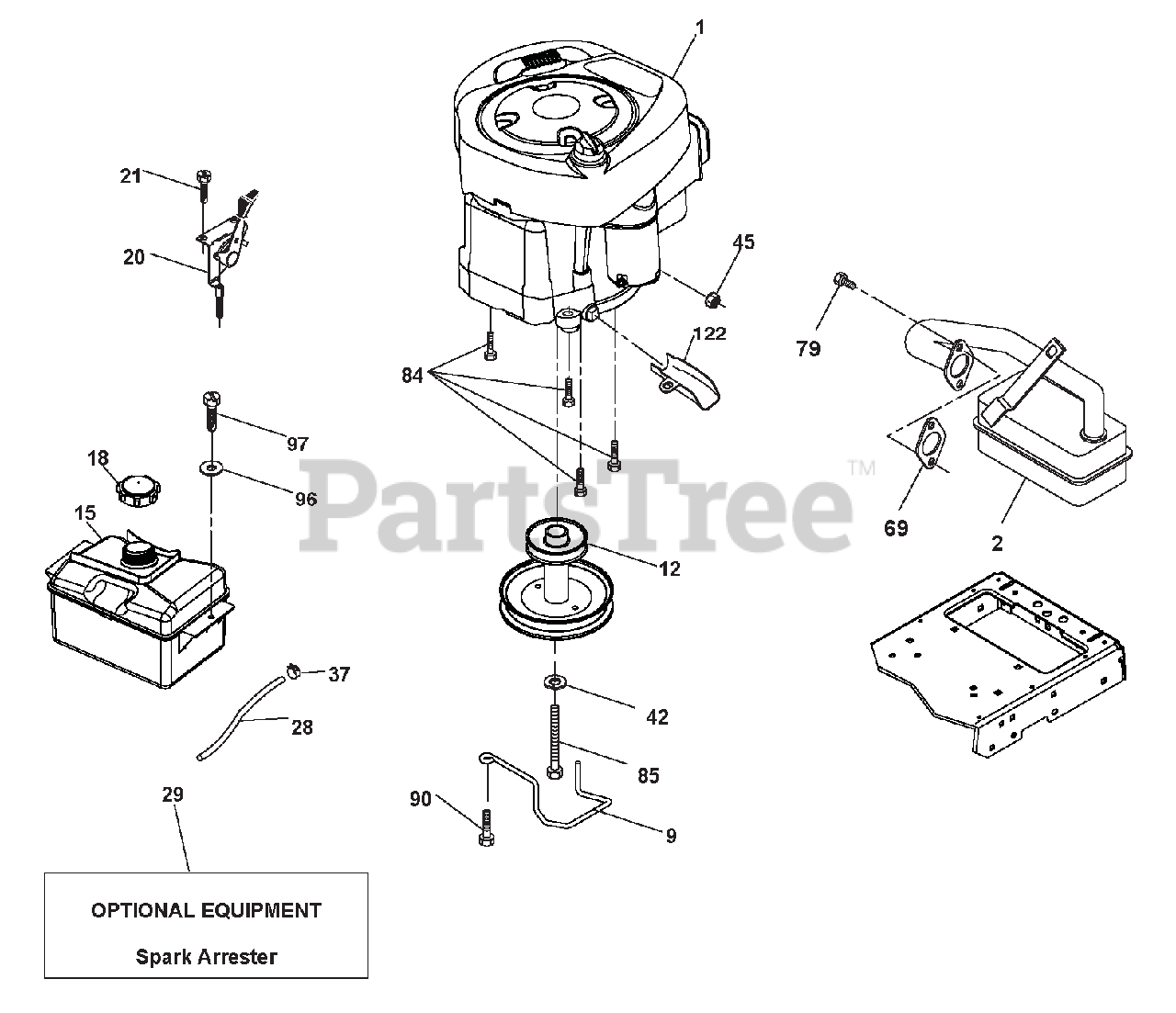

936080 (960480046-00) - Ariens 42" Lawn Tractor, Gear Engine Parts Diagram

42" Lawn Tractor, Gear

Engine Parts Diagram

  • Title

1

ENGINE BRIGGS MODEL NO. 31P677-1577-G5 (442254)(ORDER PARTS FROM ENGINE MANUFACTURER.)

Note: (442254)(ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

2

Ariens 21547110

Muffler Exhaust B&S

$45.99

$

In Stock, only 3 left!

0

9

Ariens 21548864

KEEPER BELT ENGINE

$

$

Not available

12

Ariens 21546580

PULLEY.ENGINE
(Superseded to 21548992)

$

$

Not available

15

Ariens 21548283

TANK FUEL

$129.99

$

Usually ships in 4-12 days

0

18

Ariens 21547418

CAP FUEL

$26.99

$

Usually ships in 4-12 days

0

20

Ariens 21548164

CONTROL.THROTTLE

$

$

Not available

21

Ariens 21546675

Screw

$

$

Not available

28

Ariens 21548052

LINE.FUEL.20"

$

$

Not available

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

69

Ariens 21547111

Gasket Eng 1 313 Id Tin Plated
(Superseded to 21547224)

$5.49

$

In Stock, Qty 20+

0

79

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, only 4 left!

0

84

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

122

Ariens 21547116

Extension Drain Oil

$40.99

$

In Stock, Qty 8

0
