936080 (960480046-00) - Ariens 42" Lawn Tractor, Gear Decals Parts Diagram

42" Lawn Tractor, Gear

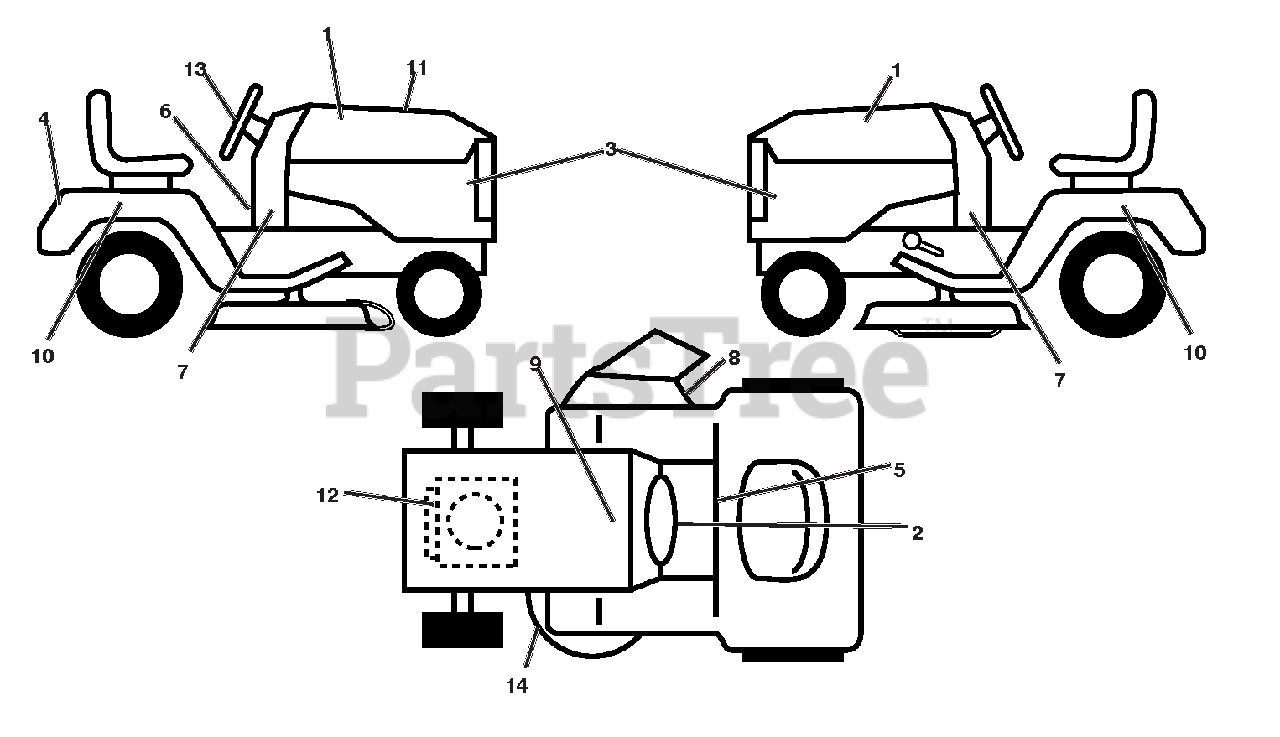

Decals Parts Diagram

  • Title

1

Ariens 21547752

DECAL.HOOD.LH/RH.

$

$

Not available

2

Ariens 21548131

DECAL.WARNING.START
(Superseded to 21547338)

$4.99

$

In Stock, only 2 left!

0

3

Ariens 21547732

DECAL.SDPNL.PWRDBY B&S.ARIENS

$

$

Not available

4

Ariens 21547668

DECAL.FENDER.REAR.ARIENS

$

$

Not available

5

Ariens 21547918

DECAL.FENDER

$

$

Not available

6

Ariens 21548284

DECAL.WARNING SPARK

$

$

Not available

7

Ariens 21548298

DECAL.DASH TOWER

$

$

Not available

8

Ariens 21546186

DECAL.MOWER.WARN.KEEP HAND AWY
(Superseded to 21548132)

$

$

Not available

9

Ariens 21546109

DECAL.BAT.DAN/POI P/L SYM.WPN

$

$

Not available

10

Ariens 21547782

DECAL, FENDER

$

$

Not available

11

Ariens 21548299

DECAL.REPLACEMENT

$

$

Not available

12

Ariens 21547350

DECAL ENGINE H.P.

$

$

Not available

13

Ariens 21547667

DECAL.WHEEL.STEER.ARIENS

$5.99

$

In Stock, only 1 left!

0

14

Ariens 21548133

DECAL.V-BELT.SCH.

$14.99

$

Usually ships in 4-12 days

0

- -

Ariens 21547561

PAD FOOTREST
(Superseded to 21546314)

$

$

Not available

- -

Ariens 21547559

PAD FOOTREST LH TLT BLACK .428
(Superseded to 21546313)

$

$

Not available

- -

Ariens 21548296

MANUAL OPERATOR'S (ENG/FRE)

Note: (ENGLISH/FRENCH)

$

$

Not available

- -

Ariens 21548365

MANUAL, PARTS (ENGLISH/FRENCH)

Note: (ENGLISH/FRENCH)

$

$

Not available
