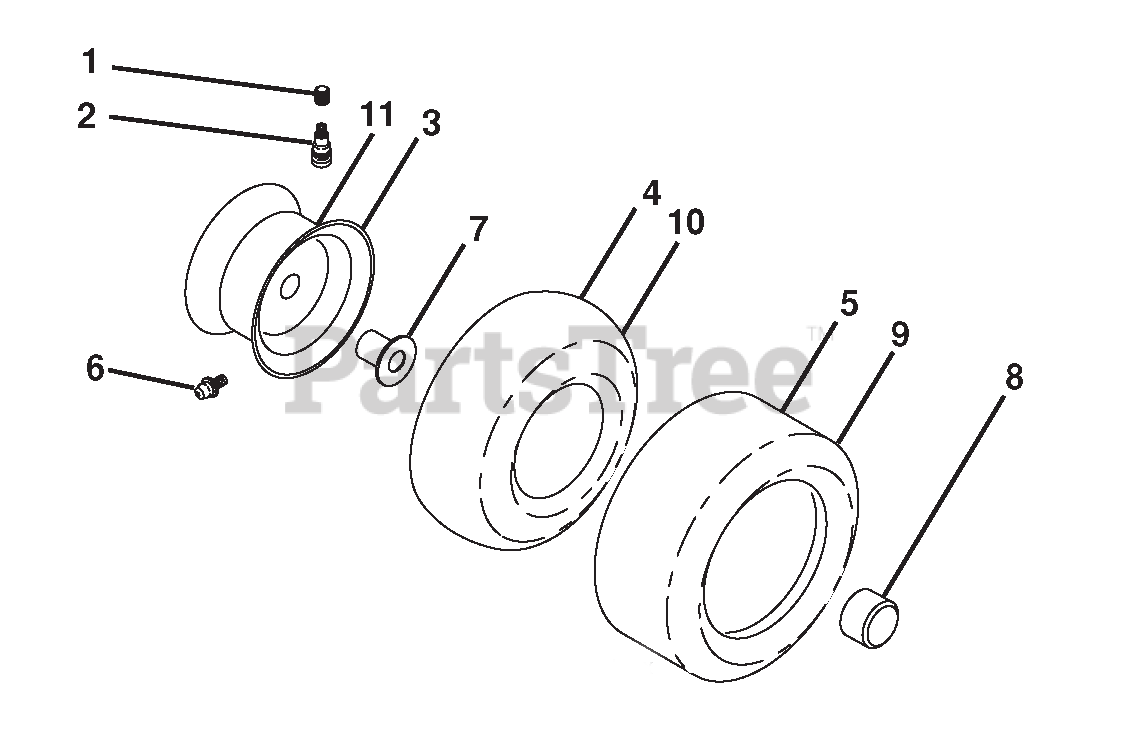

936072 (960460053-00) - Ariens 30" Lawn Tractor, Gear Wheels and Tires Parts Diagram

30" Lawn Tractor, Gear

Wheels and Tires Parts Diagram

  • Title
1

Ariens 21546747

CAP.VALVE.TIRE

$4.99

$

In Stock, Qty 20+

0

2

Ariens 21546751

STEM.VALVE

$9.99

$

In Stock, only 2 left!

0

3

Ariens 21548221

FRONT.RIM

$64.99

$

Usually ships in 4-12 days

0

4

Ariens 21548192

TUBE.FRONT

Note: (SERVICE ITEM ONLY)

$

$

Not available

5

Ariens 21548158

TIRE.FRONT

$71.99

$

Usually ships in 4-12 days

0

6

Ariens 21547725

FITTING, GREASE
(Superseded to 21546547)

Note: (FRONT WHEEL ONLY)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 21547542

BEARING FLANGE
(Superseded to 21546832)

Note: (FRONT WHEEL ONLY)

$7.99

$

In Stock, Qty 20+

0

8

Ariens 21547547

CAP AXLE (FRONT WHEEL ONLY)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

10

Ariens 21547689

TUBE, REAR

Note: (SERVICE ITEM ONLY)

$71.99

$

Usually ships in 4-12 days

0

11

Ariens 21548222

REAR.RIM

$

$

Not available

- -

Ariens 21546845

SEALANT, TIRE (10 OZ. TUBE)
(Superseded to 21549051)

Note: (10 OZ. TUBE)

$

$

Not available
