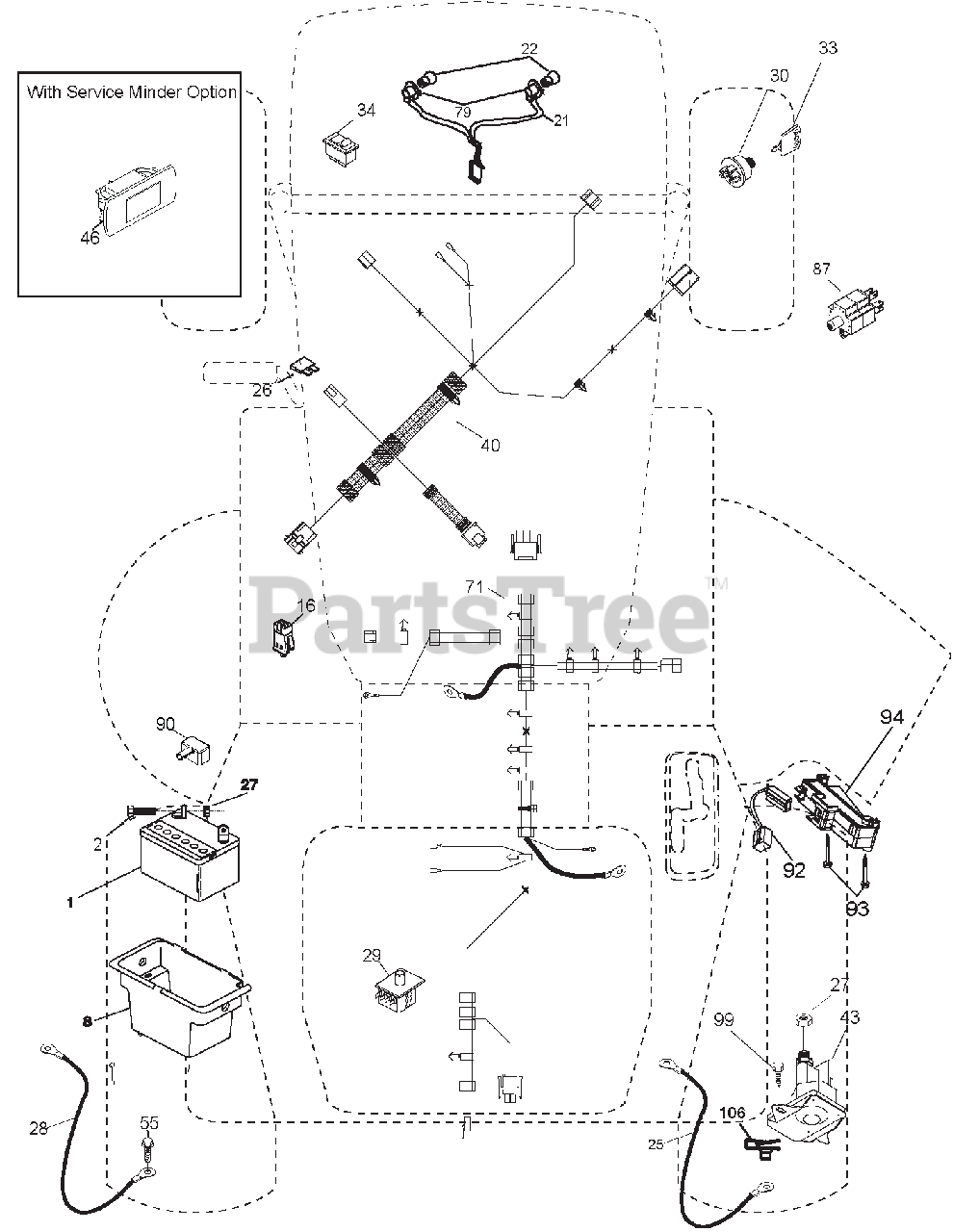

936072 (960460053-00) - Ariens 30" Lawn Tractor, Gear Electrical Parts Diagram

30" Lawn Tractor, Gear

Electrical Parts Diagram

  • Title

1

Ariens 21548160

BATTERY

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$7.49

$

In Stock, only 1 left!

0

8

Ariens 21546315

BOX.BATTERY.MNT.REAR.LT.TEX.BL

$28.99

$

In Stock, only 1 left!

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$22.99

$

In Stock, Qty 8

0

25

Ariens 21548381

CABLE STARTER 6 G4. BL/RED14.5

$7.49

$

In Stock, only 1 left!

0

26

Ariens 21546200

FUSE.20 AMP.

$7.49

$

In Stock, only 2 left!

0

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 21548382

CABLE.BLACK.22"REAR BATT.TEX

$25.99

$

In Stock, only 2 left!

0

29

Ariens 21546298

SWITCH.SEAT.DP.W/ROS

$21.99

$

Usually ships in 4-12 days

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$22.99

$

In Stock, only 2 left!

0

33

Ariens 21547339

KEY/CHAIN.BLISTER PACK.GEN.USA

$9.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$9.49

$

In Stock, only 4 left!

0

40

Ariens 21548383

HARNESS IGN ELEC RELAY

$40.99

$

In Stock, only 1 left!

0

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$

$

Not available

55

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

71

Ariens 21548384

HARNESS.IGN.CHASSIS.TEX

$66.99

$

In Stock, only 2 left!

0

87

Ariens 21546457

SWITCH.INTRLCK.CLUTCH.CABLE.TX

$18.99

$

In Stock, Qty 7

0

90

Ariens 21547570

COVER TERMINAL BATTERY FR. TEX

$4.99

$

Usually ships in 4-12 days

0

92

Ariens 21546412

HARNESS.PIGTAIL.CONSLE.ROS.MLK

$25.99

$

Usually ships in 4-12 days

0

93

Ariens 21546295

SCREW.PLASTITE.10-14 X 2.0

$

$

Not available

94

Ariens 21546849

MODUAL REVERSE ROS

$

$

Not available

99

Ariens 21548385

SCREW

$4.99

$

In Stock, only 1 left!

0

106

Ariens 21548386

PALNUT

$

$

Not available
