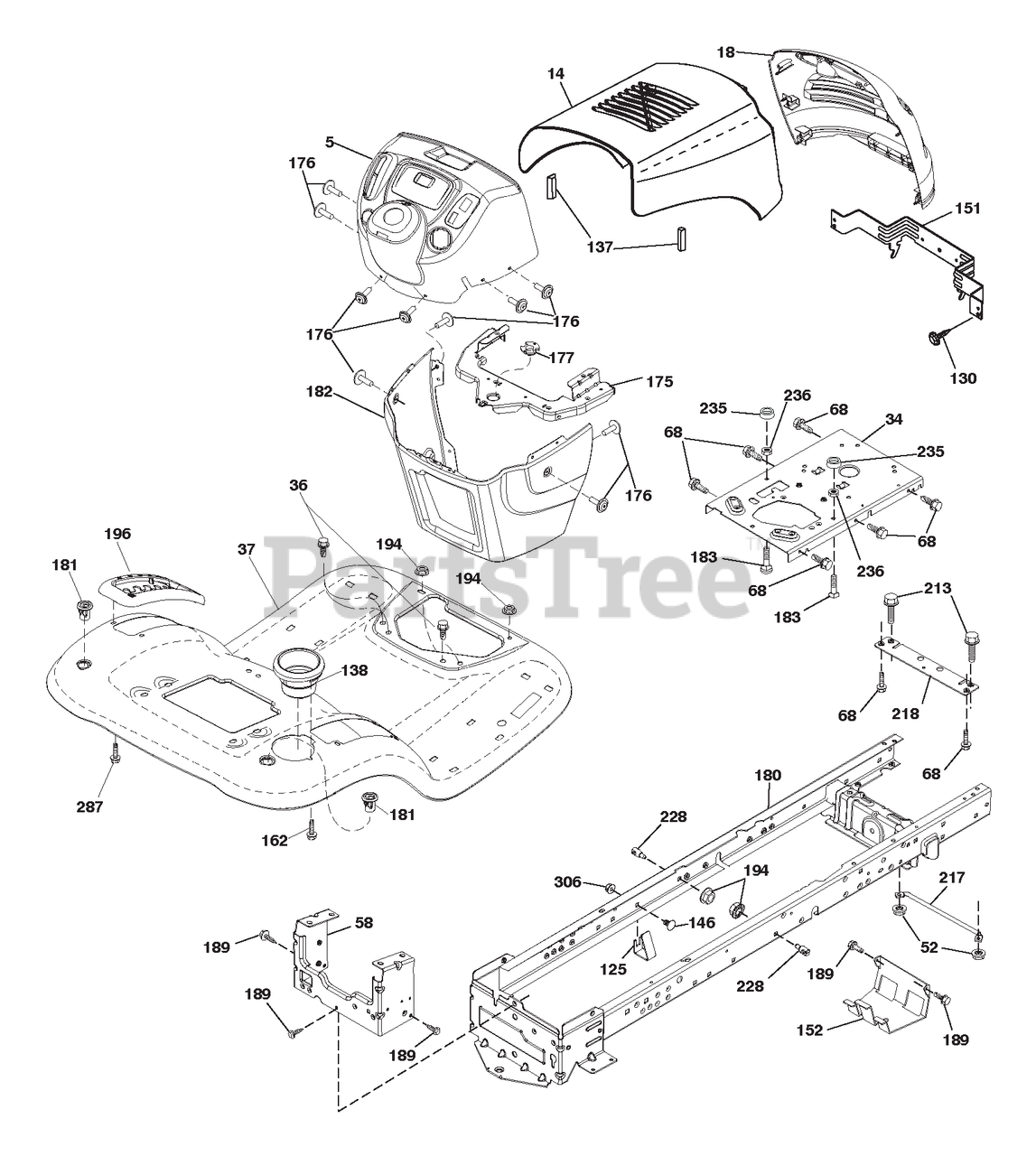

936072 (960460053-00) - Ariens 30" Lawn Tractor, Gear Chassis Parts Diagram

30" Lawn Tractor, Gear

Chassis Parts Diagram

  • Title

$83.99

$

Usually ships in 4-12 days

0

14

$

$

Not available

18

$

$

Not available

34

Ariens 21548072

PLATE.ENGINE.WELDED.CHASSIS

$71.99

$

Usually ships in 4-12 days

0

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21547643

FENDER TLT W/CPH W/FW 422

$232.99

$

Usually ships in 4-12 days

0

52

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

58

Ariens 21546643

DRAWBAR.UPPER.2PC.SML.FENDER

$

$

Not available

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

125

Ariens 21548397

CLIP.FUEL.LINE

$

$

Not available

130

$

$

Not available

137

Ariens 21546230

BUMPER.HOOD.LARGE. 1.75"

$7.49

$

In Stock, only 2 left!

0

138

Ariens 21547560

CUPHOLDER TL TEX 428

$7.99

$

Usually ships in 4-12 days

0

146

$

$

Not available

151

Ariens 21547052

Bracket Pivot

$28.99

$

Usually ships in 4-12 days

0

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

175

Ariens 21546317

CROSSMEMBER.LT

$

$

Not available

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$10.99

$

Usually ships in 4-12 days

0

177

Ariens 21546357

BUSHING.STEERING.LT

$5.99

$

Usually ships in 4-12 days

0

180

Ariens 21548175

CHASSIS

$

$

Not available

181

Ariens 21547557

BUSHING MNT FEND CRGO BLK TEX

$6.49

$

Usually ships in 4-12 days

0

182

Ariens 21546302

DASH LOWER.LT.CCS

$

$

Not available

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

196

Ariens 21546663

CONSOLE ASM.DECKLFT.BL/RBT.TLT

$37.99

$

In Stock, only 1 left!

0

213

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$7.49

$

In Stock, only 1 left!

0

217

Ariens 21546636

ROD.PIVOT.HOOD

$

$

Not available

218

Ariens 21546400

X-PIECE.HOOD.STOP.NON/STEALTH

$6.49

$

In Stock, only 1 left!

0

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.49

$

Usually ships in 4-12 days

0

287

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, only 2 left!

0

306

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

- - -

Ariens 21548167

PLUG.SWITCH.LIGHT

$

$

Not available
