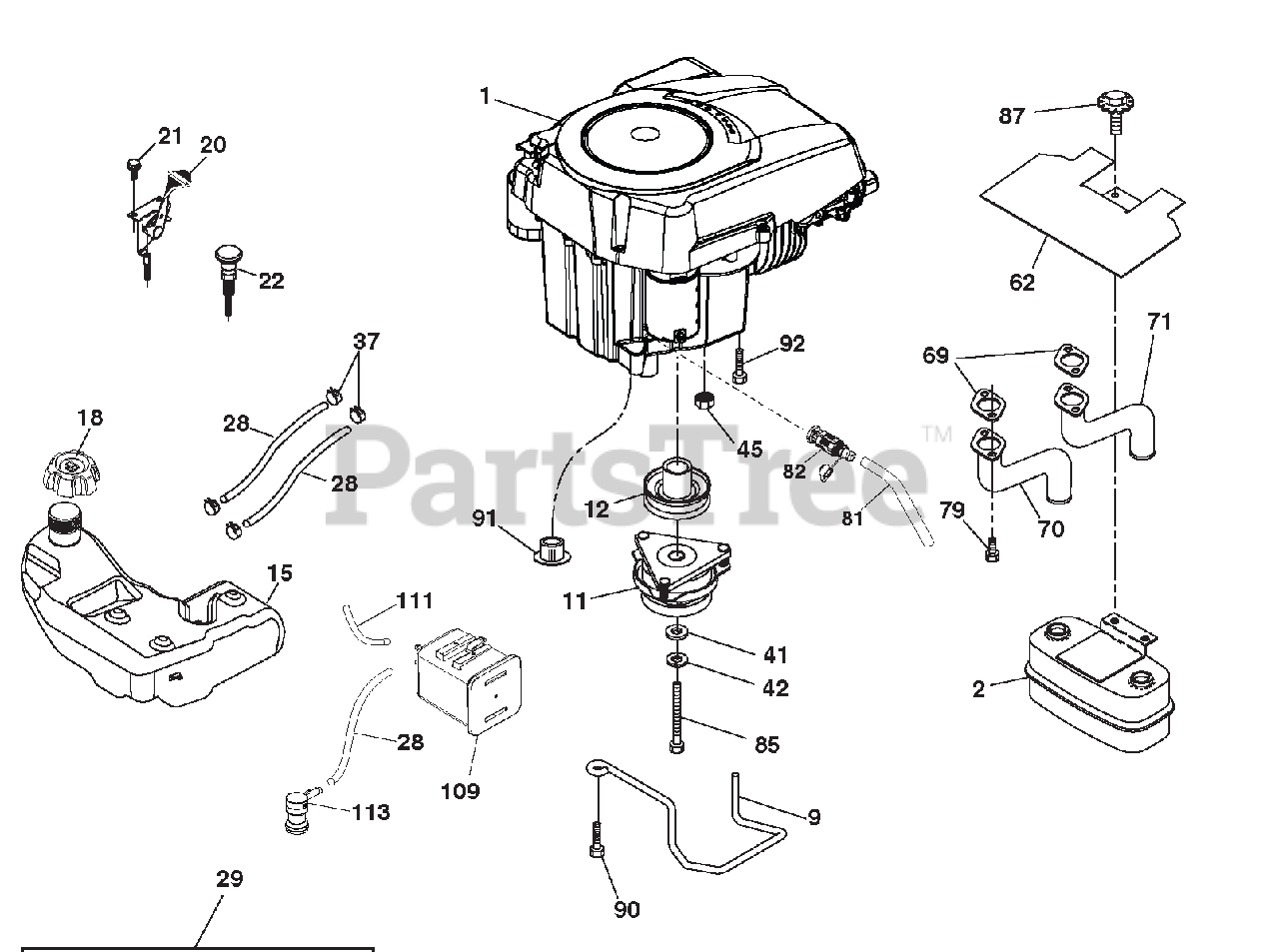

936071 (960460049-00) - Ariens 46" Lawn Tractor, Hydro Engine Parts Diagram

46" Lawn Tractor, Hydro

Engine Parts Diagram

  • Title
1

ENGINE KOHL MODEL NO. SV715-3035

$

$

Not available

1

(581497501) (ORDER PARTS FROM ENGINE

Note: (581497501) (ORDER PARTS FROM ENGINE

$

$

Not available

1

MANUFACTURER.)

Note: MANUFACTURER.)

$

$

Not available

2

Ariens 21546118

MUFFLER ASM.TWIN.LO-TONE

$74.99

$

Usually ships in 4-12 days

0

9

Ariens 21546327

KEEPER.BELT.ENGINE.4.25"NSTG
(Superseded to 21548399)

$

$

Not available

11

Ariens 21548941

ELECTRIC CLUTCH

$

$

Not available

12

Ariens 21546604

PULLEY.ENGINE.TUFFTORQE.1"CRK.

$

$

Not available

15

Ariens 21547344

TANK.FUEL.ASM.3.00 GA.

$

$

Not available

18

Ariens 21547353

CAP FUEL

$

$

Not available

20

Ariens 21548018

CONTROL.THROTTLE
(Superseded to 21546211)

$47.99

$

In Stock, only 3 left!

0

21

$

$

Not available

22

Ariens 21547761

CONTROL CHOKE
(Superseded to 21547705)

$37.99

$

Usually ships in 4-12 days

0

28

Ariens 21546570

LINE.FUEL.64"REAR.EMIS.CA.LP

$22.99

$

In Stock, only 1 left!

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

62

Ariens 21547370

SHIELD.HEAT.MUFFLER.

$

$

Not available

69

$

$

Not available

70

Ariens 21546115

PIPE.EXHAUST.LH.CV18/20
(Superseded to 21548724)

$21.99

$

In Stock, only 1 left!

0

71

Ariens 21546116

PIPE.EXHAUST.RH.CV18/20

$

$

Not available

79

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, only 2 left!

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$6.99

$

In Stock, only 4 left!

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, only 4 left!

0

85

Ariens 21547306

BOLT.HEX.7/16-20 X 3.75 X GR.

$6.99

$

Usually ships in 4-12 days

0

87

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

91

Ariens 21546246

BUSHING.1.375OD.HEYCO 2210

$7.99

$

In Stock, only 1 left!

0

92

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

109

Ariens 21546657

CANISTER.CARBON.FILTER ASM.TEX

$

$

Not available

111

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0

113

Ariens 21547343

VALVE.SLANT.CARTIDGE

$

$

Not available
