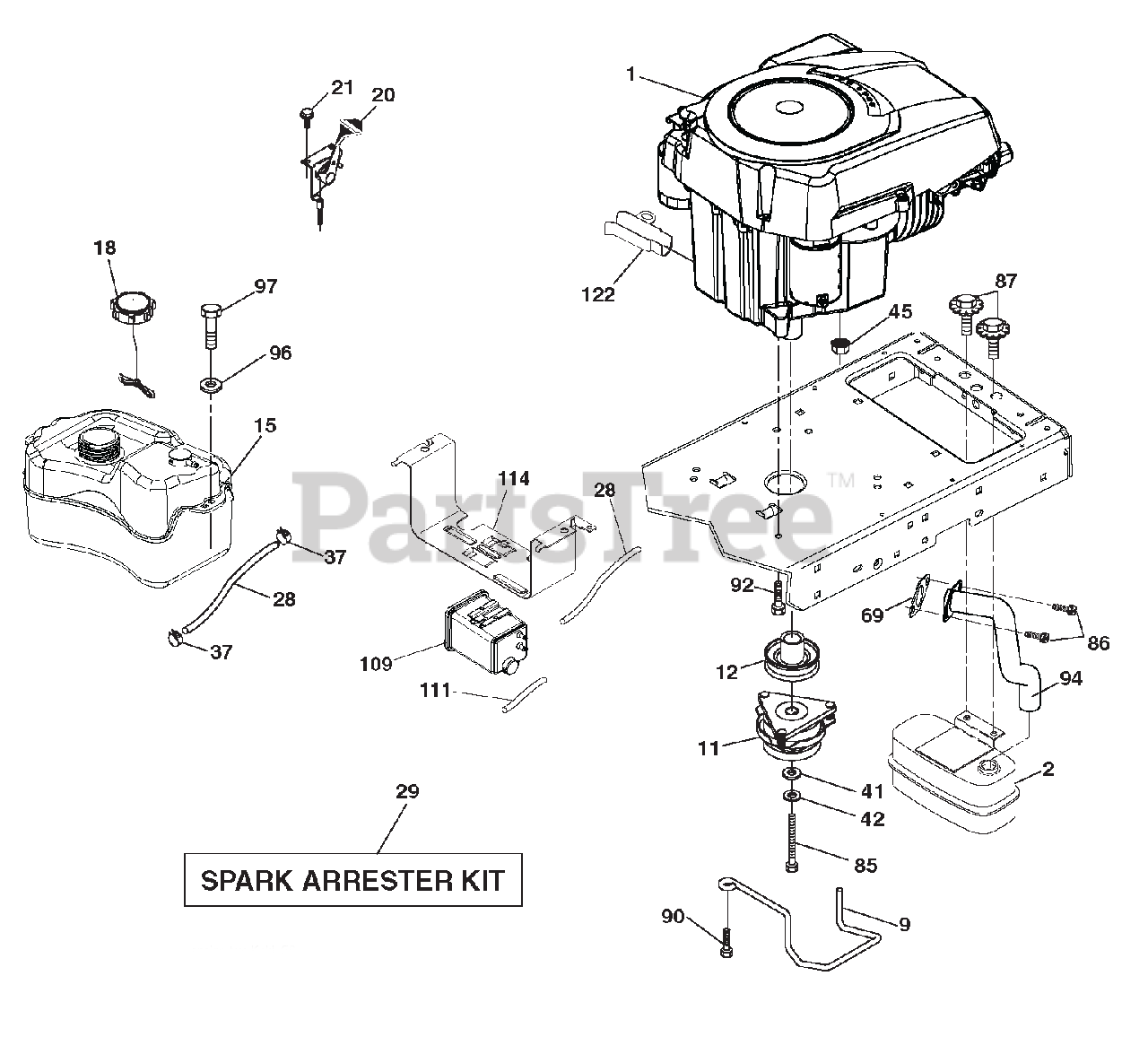

936070 (960460046-00) - Ariens 42" Lawn Tractor, Gear Engine Parts Diagram

42" Lawn Tractor, Gear

Engine Parts Diagram

  • Title
1

ENGINE KOHL MODEL NO. SV530-3225 (581497301) (ORDER PARTS FROM ENGINE MANUFACTURER.)

Note: (581497301) (ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

2

Ariens 21548330

MUFFLER
(Superseded to 21546269)

$45.99

$

In Stock, only 1 left!

0

9

Ariens 21546326

KEEPER.BELT.ENGINE.3.25"NSTL

$13.99

$

Usually ships in 4-12 days

0

11

Ariens 21547726

CLUTCH OGURA

$399.99

$

Usually ships in 4-12 days

0

12

Ariens 21548091

PULLEY. ENGINE. 1" CRK.

$

$

Not available

15

Ariens 21548092

TANK FUEL
(Superseded to 21547954)

$

$

Not available

18

Ariens 21547355

CAP FUEL

$62.99

$

Usually ships in 4-12 days

0

20

Ariens 21548093

CONTROL THROTTLE/CHOKE

$26.99

$

Usually ships in 4-12 days

0

21

$

$

Not available

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

69

Ariens 21546232

GASKET.KOHLER.SV.I.

$4.99

$

Usually ships in 4-12 days

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

86

Ariens 21547307

SCREW SOCKET HEAD 5/16-18 X 1

$6.99

$

In Stock, only 2 left!

0

87

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

92

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

94

Ariens 21546268

TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 21548567)

$51.99

$

Usually ships in 4-12 days

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

109

Ariens 21546657

CANISTER.CARBON.FILTER ASM.TEX

$

$

Not available

111

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0

114

Ariens 21546659

CRADLE.CANISTER.CARBON

$

$

Not available

122

Ariens 21547116

Extension Drain Oil

$40.99

$

In Stock, Qty 8
