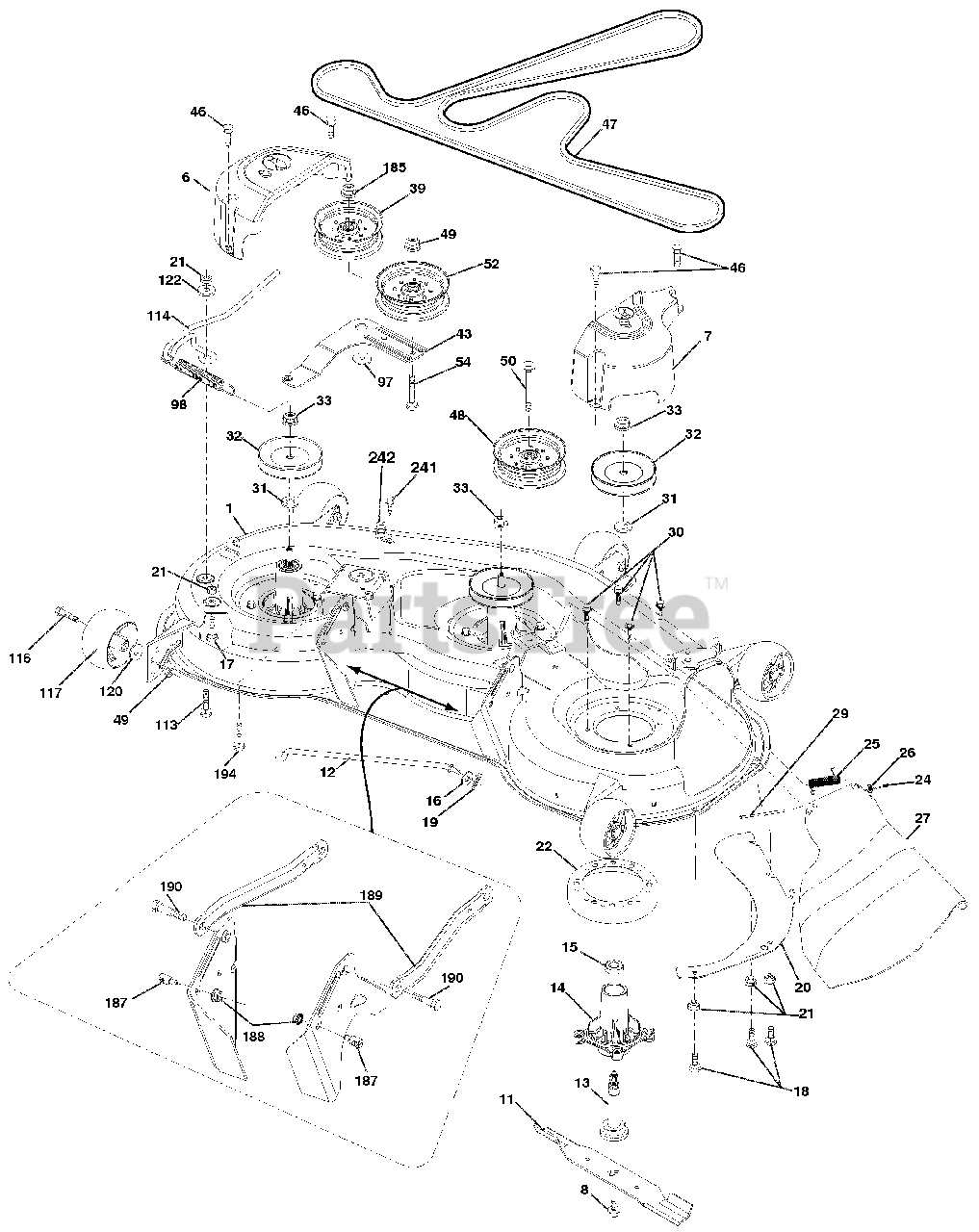

936067 (960460050-01) - Ariens 48" Lawn Tractor, Hydro Mower Deck Parts Diagram

48" Lawn Tractor, Hydro

Mower Deck Parts Diagram

  • Title

1

Ariens 21548742

DECK

$

$

Not available

6

Ariens 21548002

COVER MANDREL LH

$

$

Not available

7

Ariens 21548865

COVER MANDREL RH

$

$

Not available

8

Ariens 21546301

BOLT/WASHER ASM.7/16-20.UNF

$8.99

$

Usually ships in 4-12 days

0

11

Ariens 21547939

48" BAGGER BLADE

$22.99

$

In Stock, Qty 20+

0

11

Ariens 21547257

BLADE, MULCH 42" 16.75"

$22.99

$

In Stock, only 4 left!

0

12

Ariens 21546595

ROD.ANTI SWAY.48/54"K46.TEX

$26.99

$

In Stock, only 4 left!

0

13

Ariens 21546239

SHAFT ASM.MANDREL.48/54"SVC

$

$

Not available

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$56.99

$

In Stock, Qty 17

0

15

Ariens 21546046

BEARING.BALL.MANDREL
(Superseded to 05418800)

$9.49

$

In Stock, Qty 20+

0

16

Ariens 21546283

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 21546761

BOLT.CARR.5/16-18 X 5/8 SHORT
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 21546321

PIN.COTTER.5/16.BOW TIE LOCK

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 21548004

BAFFEL VORTEX

$

$

Not available

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

22

Ariens 21546195

STRIPPER.MANDREL.DECK

$7.49

$

Usually ships in 4-12 days

0

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$4.99

$

In Stock, Qty 20+

0

25

Ariens 21546212

SPRING.TORSION.48"

$6.99

$

Usually ships in 4-12 days

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 21548005

DEFLECTOR SHIELD

$

$

Not available

29

Ariens 21546081

ROD.HINGE.42/46"

$

$

Not available

30

Ariens 21546192

SCREW.THD ROLL.DOD PT.HEX
(Superseded to 21548816)

$4.99

$

In Stock, Qty 16

0

31

Ariens 21546253

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 20+

0

32

Ariens 21548006

PULLY, MANDREL

$45.99

$

Usually ships in 4-12 days

0

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$

$

Not available

39

Ariens 21546442

PULLEY.IDLER.4.50.HUB.SPECIAL
(Superseded to 21546443)

$96.99

$

In Stock, only 1 left!

0

43

Ariens 21546378

ARM.ILDER
(Superseded to 21546379)

$19.99

$

In Stock, only 1 left!

0

46

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

47

Ariens 21547940

PRIMARY MOWER BELT 48"

$71.99

$

In Stock, only 2 left!

0

48

Ariens 21546440

PULLEY.IDLER.4.50.RAW

$39.99

$

In Stock, Qty 14

0

49

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

50

Ariens 21548007

BOLT RDHD SQNK 3/8-16 UNC X 2

$

$

Not available

52

Ariens 21546308

PULLEY.IDLER 48"PRIMARY

$31.99

$

In Stock, Qty 11

0

54

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

97

Ariens 21546214

WASHER.FLAT.HARDENED

$6.99

$

Usually ships in 4-12 days

0

98

Ariens 21546383

SPRING.DRIVE.DECK.2006

$7.99

$

In Stock, Qty 7

0

113

Ariens 21546762

BOLT.CARR.5/16-18UNC X 1

$

$

Not available

114

Ariens 21548008

ROD TENSION RELIEF

$32.99

$

Usually ships in 4-12 days

0

116

Ariens 21546320

BOLT.SHOULDER.3/8-16X3-5/8.GR5

$5.99

$

In Stock, Qty 20+

0

117

Ariens 21546197

WHEEL.GAUGE.RALLY.

$10.99

$

Usually ships in 4-12 days

0

120

Ariens 21546286

WASHER.13/32 X 1-1/4 X 12 GA.

$1.99

$

Usually ships in 4-12 days

0

122

Ariens 21546250

BUSHING.RELIEF.TENSION

$

$

Not available

185

Ariens 21546791

NUT.LOCK.FLANGE.7/16-14.GR5

$7.49

$

In Stock, Qty 13

0

187

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

188

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

189

Ariens 21546345

ARM.SUSPENSION.MOWER.REAR
(Superseded to 21546346)

$18.99

$

Usually ships in 4-12 days

0

190

Ariens 21546411

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

194

Ariens 21547675

BOLT CARR SQNK 3/8-16 X 2-1/4

$13.99

$

In Stock, only 4 left!

0

241

Ariens 21547128

Screw

$7.49

$

In Stock, only 2 left!

0

242

Ariens 21547345

PORT WASHOUT

$8.99

$

In Stock, Qty 17

0

32

Ariens 21546240

MANDREL ASM.48/54"
(Superseded to 21549017)

Note: (INCLUDES HOUSING (KEY #14), SHAFT ASSEMBLY (KEY #13) AND BEARING ONLY

$79.99

$

In Stock, only 2 left!

0

32

(KEY #15)-PULLEY/NUT/WASHER AND BLADE BOLT/WASHER NOT INCLUDED.)

Note: (KEY #15)-PULLEY/NUT/WASHER AND BLADE BOLT/WASHER NOT INCLUDED.)

$

$

Not available

- -

Ariens 21548009

REPLACE MOWER, COMPLETE

$

$

Not available

- -

Ariens 21547347

COUPLING QUICK CONNECT

$10.99

$

In Stock, Qty 6

0
