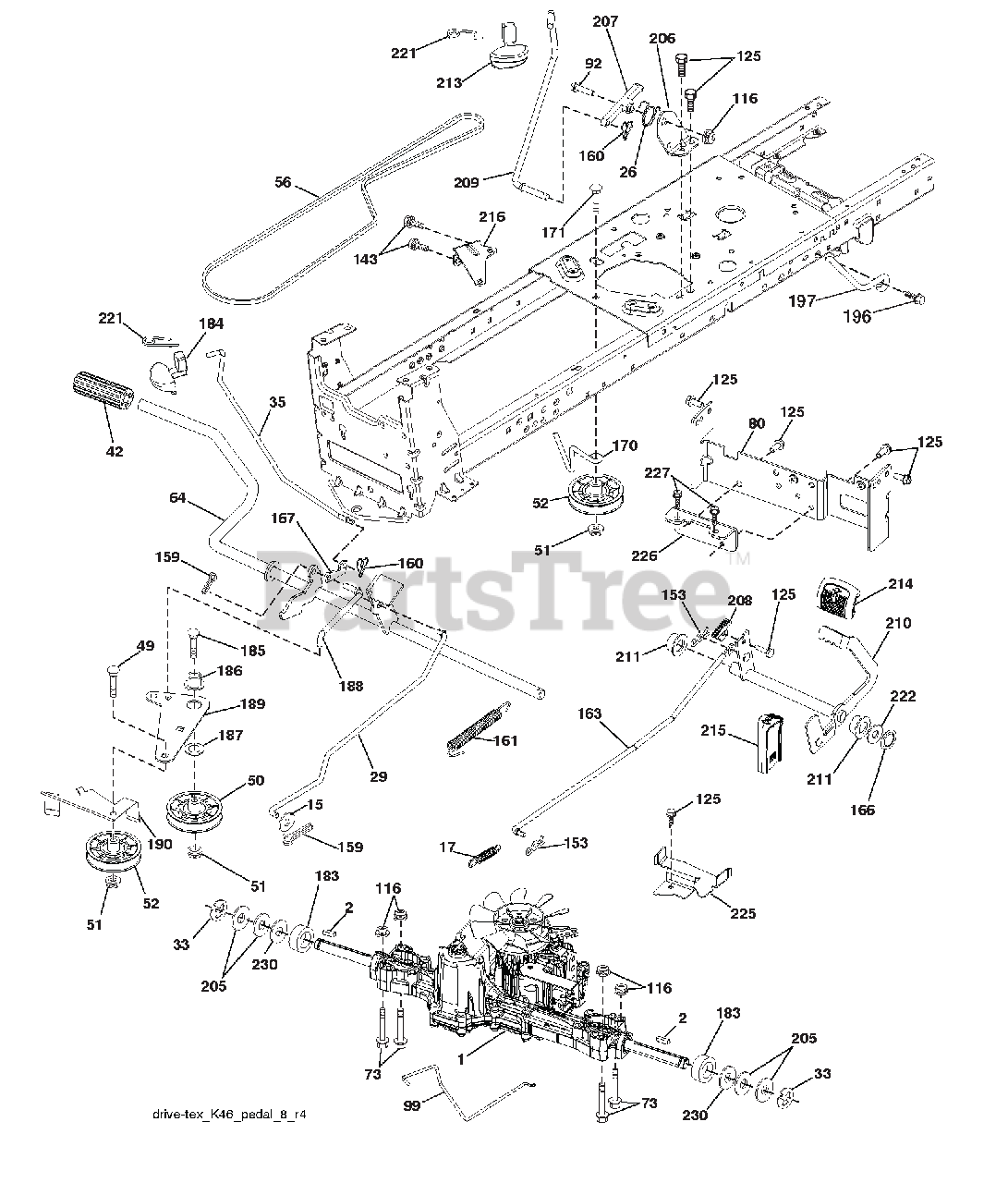

936067 (960460050-00) - Ariens 48" Lawn Tractor, Hydro Drive Parts Diagram

48" Lawn Tractor, Hydro

Drive Parts Diagram

  • Title
1

TRANSAXLE, TUFFTORQ K46BT

Note: (426120)(ORDER PARTS FROM TRANSAXLE MANUFACTURER)

$

$

Not available

2

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

In Stock, only 4 left!

0

15

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 5

0

17

Ariens 21546654

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

26

Ariens 21546508

SPRING.RETURN.CRUISE

$7.49

$

In Stock, only 4 left!

0

29

Ariens 21546593

ROD.BRAKE.K46

$34.99

$

Usually ships in 4-12 days

0

33

Ariens 21546051

E-RING.#5133-75
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 21548066

ROD.BRAKE.PARKING.LT.TEX

$

$

Not available

42

Ariens 21547538

COVER PEDAL BLK ROUND

$6.49

$

Usually ships in 4-12 days

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$20.99

$

In Stock, Qty 16

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$22.99

$

Usually ships in 4-12 days

0

56

Ariens 21546080

V-BELT.MOWER.92.40.42/K46

$30.99

$

Usually ships in 4-12 days

0

64

Ariens 21546465

SHAFT ASM.PEDAL.BRK.CNTRL.PCH

$

$

Not available

73

Ariens 21546798

BOLT.HEX.FLGHD.5/16-18.GR.5

$4.99

$

Usually ships in 4-12 days

0

80

Ariens 21547733

STRAP.TORQUE.K46/18"TEX

$

$

Not available

92

Ariens 21546806

Bolt, Hex Head 5/16-18 x 1-1/4
(Superseded to 05947500)

$2.49

$

In Stock, Qty 11

0

99

Ariens 21547346

ROD BYPASS

$9.99

$

Usually ships in 4-12 days

0

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

143

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

153

Ariens 21547536

RETAINER SPRING
(Superseded to 21546739)

$

$

Not available

159

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$11.99

$

Usually ships in 4-12 days

0

163

Ariens 21548050

ROD CONTROL

$

$

Not available

166

Ariens 21547349

NUT PUSH .625

$6.49

$

In Stock, only 2 left!

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.99

$

Usually ships in 4-12 days

0

170

Ariens 21547311

KEEPER BELT CENTERSPAN

$7.49

$

In Stock, only 1 left!

0

171

Ariens 21546767

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2
(Superseded to 06203200)

$2.99

$

In Stock, Qty 20+

0

183

Ariens 21546087

SPACER.AXLE.HYDRO/PEERLES

$7.49

$

In Stock, only 2 left!

0

184

Ariens 21548069

HANDLE.PARKNG.BRAKE.LT.TEX.667
(Superseded to 21548914)

$16.99

$

Usually ships in 4-12 days

0

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$4.99

$

In Stock, Qty 10

0

186

Ariens 21546328

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$24.99

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$

$

Not available

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.99

$

In Stock, only 2 left!

0

196

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

197

Ariens 21548897

LINK CLUTCH ANTI-ROTATION

$

$

Not available

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

206

Ariens 21546467

BRACKET.MOUNT.LATCH.CRUISE

$

$

Not available

207

Ariens 21546469

LATCH.CONTROL.CRUISE

$

$

Not available

208

Ariens 21546470

GEAR SECTOR.CONTROL.CRUISE

$

$

Not available

209

Ariens 21547662

ROD CONTROL CRUISE

$

$

Not available

210

Ariens 21546565

ROCKER ASM.PEDAL CONTROL.TEXLT

$29.99

$

Usually ships in 4-12 days

0

211

Ariens 21546061

BEARING.NYLON.BLK..629 ID.

$

$

Not available

213

Ariens 21548124

KNOB.CONTROL.CRUISE

$11.99

$

Usually ships in 4-12 days

0

214

Ariens 21547005

PAD PEDAL FORWARD

$

$

Not available

215

Ariens 21547707

PEDAL REVERSE

$

$

Not available

216

Ariens 21546385

BRACKET.PULLEY.IDLER.WTEX

$7.49

$

Usually ships in 4-12 days

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.49

$

In Stock, only 2 left!

0

222

Ariens 21546821

WASHER.21/32X1-1/4.10GA.N/PLTD

$

$

Not available

225

Ariens 21546589

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

226

Ariens 21546575

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 4-12 days

0

227

Ariens 21547613

SCREW 5/16-18 X 3/4

$

$

Not available

230

Ariens 21546272

WASHER.HARDEN..793 X 1.637X060

$4.99

$

In Stock, Qty 20+

0
