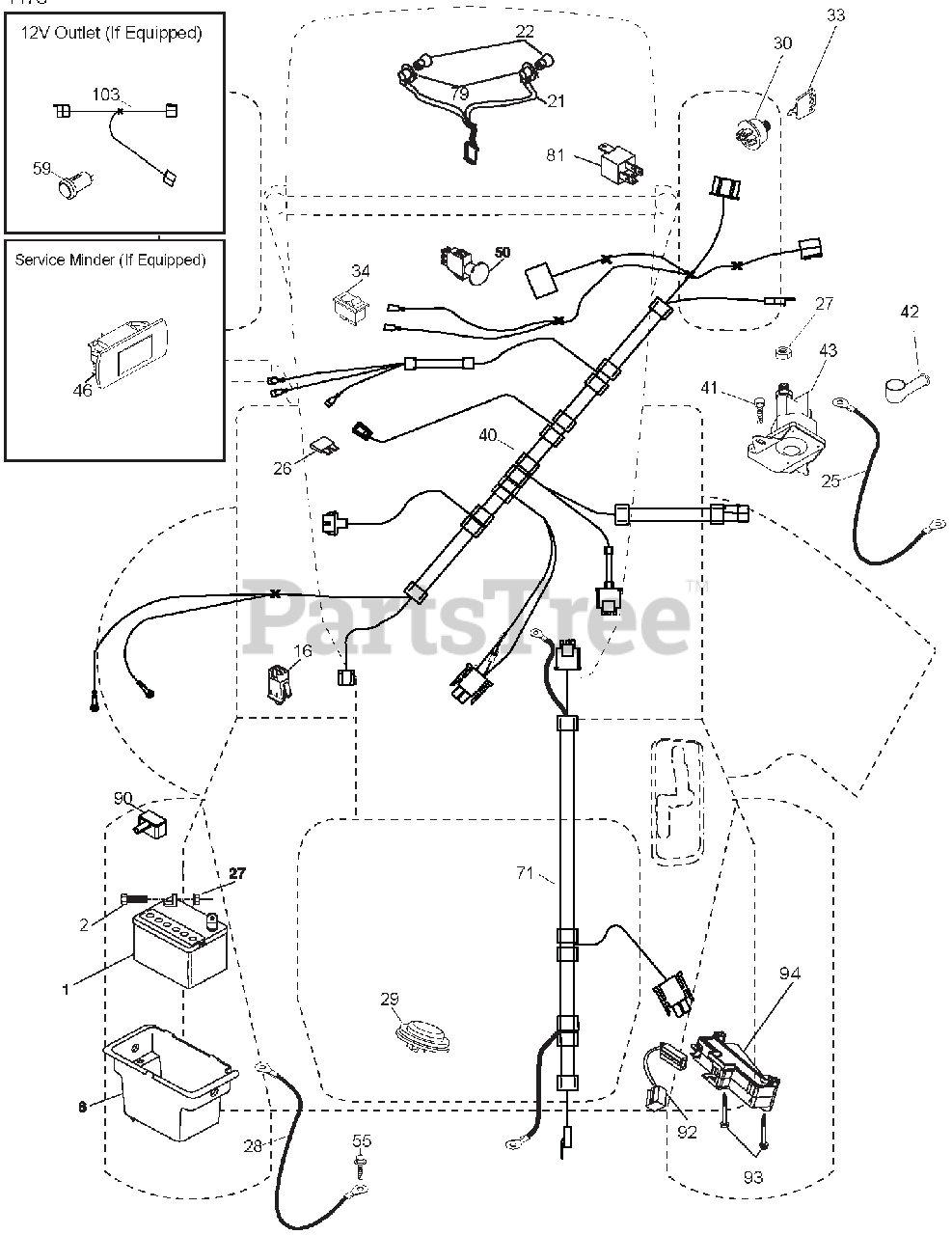

936066 (960460048-02) - Ariens 46" Lawn Tractor, Hydro Electrical Parts Diagram

46" Lawn Tractor, Hydro

Electrical Parts Diagram

  • Title

1

Ariens 21546162

BATTERY.12.VOLT.28.AMP.WET

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$7.49

$

In Stock, only 1 left!

0

8

Ariens 21546315

BOX.BATTERY.MNT.REAR.LT.TEX.BL

$28.99

$

In Stock, only 1 left!

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$22.99

$

In Stock, Qty 7

0

21

Ariens 21547584

HARNESS ASM.LIGHT.22"(4152J)
(Superseded to 21546226)

Note: (4152J)

$

$

Not available

22

Ariens 21546673

BULB.LIGHT.#1156

$7.99

$

In Stock, only 1 left!

0

25

Ariens 21548544

CABLE.STARTER

$22.99

$

Usually ships in 4-12 days

0

26

Ariens 21546200

FUSE.20 AMP.

$7.49

$

In Stock, only 2 left!

0

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 21546481

CABLE.BLACK.22"REAR BATT.TEX

$

$

Not available

29

Ariens 21546574

SWITCH.SEAT.DELTA.OPC.9LB.

$39.99

$

In Stock, Qty 6

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$22.99

$

In Stock, only 1 left!

0

33

Ariens 21547339

KEY/CHAIN.BLISTER PACK.GEN.USA

$9.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$9.49

$

In Stock, only 4 left!

0

40

Ariens 21548723

HARNESS IGN. ELECTRIC RELAY

$

$

Not available

41

Ariens 21546210

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546082

COVER.TERMINAL.RED

$

$

Not available

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$

$

Not available

46

Ariens 21547327

HOUR METER
(Superseded to 21548893)

$30.99

$

Usually ships in 4-12 days

0

50

Ariens 21546196

SWITCH.PTO.8 TERMINAL.BLACK

$28.99

$

In Stock, only 4 left!

0

55

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

71

Ariens 21546558

HARNESS.IGN.CHASS.TEX.REAR.BAT

$

$

Not available

79

Ariens 21546201

SOCKET ASM.BULB.TWISTLOCK

$22.99

$

In Stock, only 1 left!

0

81

Ariens 21547337

RELAY HARNESS SEALED

$

$

Not available

90

Ariens 21547570

COVER TERMINAL BATTERY FR. TEX

$4.99

$

Usually ships in 4-12 days

0

92

Ariens 21546412

HARNESS.PIGTAIL.CONSLE.ROS.MLK

$25.99

$

Usually ships in 4-12 days

0

93

Ariens 21546295

SCREW.PLASTITE.10-14 X 2.0

$

$

Not available

94

Ariens 21546849

MODUAL REVERSE ROS

$

$

Not available
