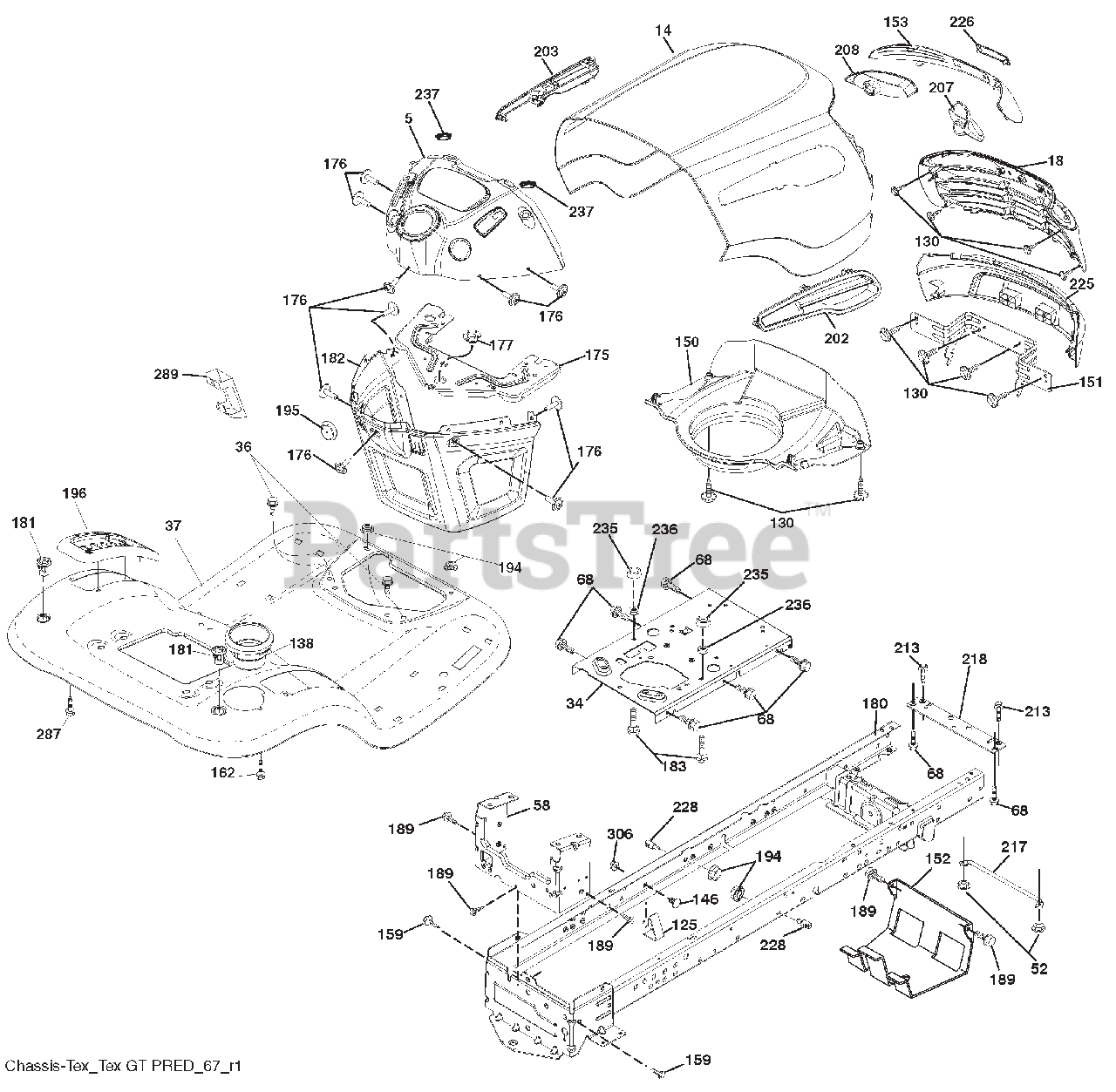

936066 (960460048-01) - Ariens 46" Lawn Tractor, Hydro Chassis Parts Diagram

46" Lawn Tractor, Hydro

Chassis Parts Diagram

  • Title

5

Ariens 21548062

DASH P/L TEX CABLE

$69.99

$

Usually ships in 4-12 days

0

14

Ariens 21548085

HOOD

$

$

Not available

18

Ariens 21548064

GRILLE.ELITE.ARIENS.BLACK

$56.99

$

Usually ships in 4-12 days

0

34

Ariens 21548072

PLATE.ENGINE.WELDED.CHASSIS

$71.99

$

Usually ships in 4-12 days

0

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21547643

FENDER TLT W/CPH W/FW 422

$232.99

$

Usually ships in 4-12 days

0

52

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

58

Ariens 21546643

DRAWBAR.UPPER.2PC.SML.FENDER

$

$

Not available

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

125

Ariens 21548397

CLIP.FUEL.LINE

$

$

Not available

130

Ariens 21546675

Screw

$

$

Not available

138

Ariens 21547560

CUPHOLDER TL TEX 428

$7.99

$

Usually ships in 4-12 days

0

146

Ariens 21548398

BOLT

$

$

Not available

150

Ariens 21548405

AIR DUCT

$21.99

$

Usually ships in 4-12 days

0

151

Ariens 21548070

BRACKET.PIVOT

$

$

Not available

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

153

Ariens 21548061

LENS.BAR

$

$

Not available

159

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

175

Ariens 21548053

CROSSMEMBER.LT

$

$

Not available

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$10.99

$

Usually ships in 4-12 days

0

177

Ariens 21546356

BUSHING.STEERING.YT/GT

$6.99

$

In Stock, Qty 15

0

180

Ariens 21546670

CHASS.WLDMT.TL.12GA/2PC.18/22"

$258.99

$

Usually ships in 4-12 days

0

181

Ariens 21547557

BUSHING MNT FEND CRGO BLK TEX

$6.49

$

Usually ships in 4-12 days

0

182

Ariens 21548059

DASH.LOWER.LT.CCS

$116.99

$

Usually ships in 4-12 days

0

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

195

Ariens 21547532

PLUG HOLE DASH TOWER

$

$

Not available

196

Ariens 21548087

CONSLE.ASM.DECK.LFT.BL/RBT.TLT

$14.99

$

In Stock, only 2 left!

0

202

Ariens 21548169

VENT RH

$7.49

$

Usually ships in 4-12 days

0

203

Ariens 21548123

VENT.SIDE.LH

$

$

Not available

207

Ariens 21548054

BEZEL.RH

$26.99

$

In Stock, only 1 left!

0

208

Ariens 21548055

BEZEL.LH

$38.99

$

Usually ships in 4-12 days

0

213

Ariens 21546804

Bolt, Hex Head 5/16-18 x 3/4

$5.99

$

In Stock, only 4 left!

0

217

Ariens 21546636

ROD.PIVOT.HOOD

$

$

Not available

218

Ariens 21546400

X-PIECE.HOOD.STOP.NON/STEALTH

$6.49

$

In Stock, only 1 left!

0

225

Ariens 21548086

BUMPER

$355.99

$

Usually ships in 4-12 days

0

226

Ariens 21548084

ARIENS.LOGO.PLATE

$

$

Not available

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.49

$

Usually ships in 4-12 days

0

237

Ariens 21547588

PLUG.MOUNT.CARGO

$

$

Not available

287

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, only 2 left!

0

289

Ariens 21548058

PLUG.CRUISE.CONTROL

$

$

Not available

306

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0
