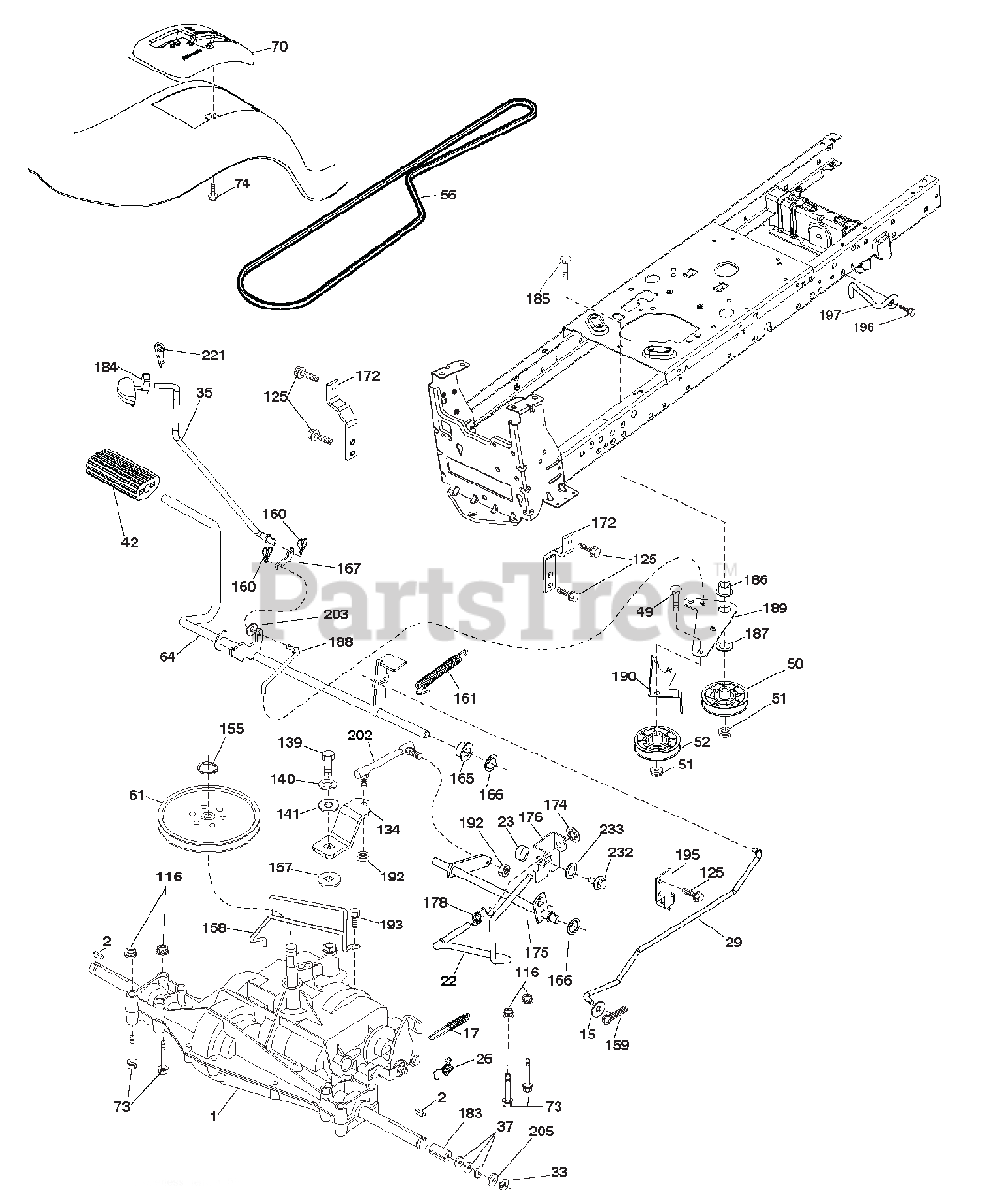

936064 (960460045-00) - Ariens 42" Lawn Tractor, 17hp Kohler, Gear Drive Parts Diagram

42" Lawn Tractor, 17hp Kohler, Gear

Drive Parts Diagram

  • Title

1

TRANSAXLE, PEERLESS 206-565

Note: (197941)(ORDER PARTS FROM TRANSAXLE MANUFACTURER)

$

$

Not available

2

Ariens 21547756

KEY 1/4 X 2.5

$6.49

$

Usually ships in 4-12 days

0

15

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 5

0

17

Ariens 21546434

SPRING.BRAKE.PEERLESS/D6800.TX

$9.49

$

Usually ships in 4-12 days

0

22

Ariens 21546450

ROD.SHIFT.FENDER.TLT.2006

$234.99

$

Usually ships in 4-12 days

0

23

Ariens 21547222

Knob

$

$

Not available

26

Ariens 21546444

SPRING.BRAKE.RTN.GR DR.TEX.006

$

$

Not available

29

Ariens 21546430

ROD.BRAKE.PEERLESS/D6800

$

$

Not available

33

Ariens 21546051

E-RING.#5133-75
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 21547585

ROD, BRAKE, PARK

$

$

Not available

37

Ariens 21547538

COVER PEDAL BLK ROUND

$6.49

$

Usually ships in 4-12 days

0

42

Ariens 21547538

COVER PEDAL BLK ROUND

$6.49

$

Usually ships in 4-12 days

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$20.99

$

In Stock, Qty 12

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$22.99

$

Usually ships in 4-12 days

0

56

Ariens 21546332

V-BELT.DRV.97.40"PMST/DANA

$43.99

$

In Stock, Qty 5

0

61

Ariens 21546071

PULLEY.TRANSAXLE.18/20"TIRES

$45.99

$

In Stock, only 1 left!

0

64

Ariens 21546387

SHAFT ASM.PEDAL.BRAKE CONTROL

$

$

Not available

70

Ariens 21548089

CONSOLE SHIFT

$

$

Not available

73

Ariens 21547614

BOLT 5/16-18 X 2 1/2 G.5

$

$

Not available

74

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

134

Ariens 21548090

ASM SHIFT

$

$

Not available

139

Ariens 21546800

BOLT.1/4-28 UNF.GR8.W/PATCH

$5.99

$

In Stock, only 2 left!

0

140

Ariens 21546001

Washer, Lock 1/4

$11.99

$

In Stock, only 1 left!

0

141

Ariens 21546275

WASHER.9/32 X 3/4 X 10 GA.

$8.99

$

In Stock, only 1 left!

0

155

Ariens 21546052

Ring, Retainer

$

$

Not available

157

Ariens 21546027

WASHER.PLATE.SHF..388 SQ.HOLE

$6.49

$

In Stock, only 2 left!

0

158

Ariens 21546333

KEEPER.T/A.PMS/D4360/D680.1820

$22.99

$

Usually ships in 4-12 days

0

159

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

Note: (M).DIA.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$11.99

$

In Stock, only 3 left!

0

165

Ariens 21546393

BUSHING.SHAFT.BRAKE.HAND CONTR

$6.49

$

In Stock, only 1 left!

0

166

Ariens 21547349

NUT PUSH .625

$6.49

$

In Stock, only 2 left!

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.99

$

Usually ships in 4-12 days

0

172

Ariens 21546449

STRAP.TRQ.LH.GEAR DRIVE.LT.TEX

$6.49

$

Usually ships in 4-12 days

0

174

Ariens 21546431

NUT.PUSH..500

$6.49

$

In Stock, only 2 left!

0

175

Ariens 21547766

SHAFT ASM. SHIFT GEAR DRIVE

$21.99

$

Usually ships in 4-12 days

0

176

Ariens 21546394

ARM.CLEVIS.ROD.SHIFT

$

$

Not available

178

Ariens 21546445

SPRING.SHIFT.GT.2006

$

$

Not available

183

Ariens 21546087

SPACER.AXLE.HYDRO/PEERLES

$7.49

$

In Stock, only 2 left!

0

184

Ariens 21547749

HANDLE PARKING BRAKE
(Superseded to 21548870)

$

$

Not available

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$4.99

$

In Stock, Qty 10

0

186

Ariens 21546328

SPACER.RETAINER

$9.49

$

In Stock, Qty 11

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$24.99

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$

$

Not available

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.99

$

In Stock, only 1 left!

0

192

Ariens 21546119

NUT.LOCK.CENTER.1/4-28 FNTHD.
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

193

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

195

Ariens 21546438

BRACKET.ROD.BRK.PEERLESS/D6800
(Superseded to 21546439)

$

$

Not available

196

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

197

Ariens 21546374

LINK.CLUTCH.ANTI-ROTATIN.1"CRK

$8.99

$

In Stock, Qty 6

0

202

Ariens 21547902

LINK

$

$

Not available

203

Ariens 21546279

Washer 11/32 x 11/16 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.49

$

In Stock, only 3 left!

0

232

Ariens 21546818

BOLT.FIN HEX.7/16-14X1 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

233

Ariens 21546609

WASHER.SERRATED

$

$

Not available
