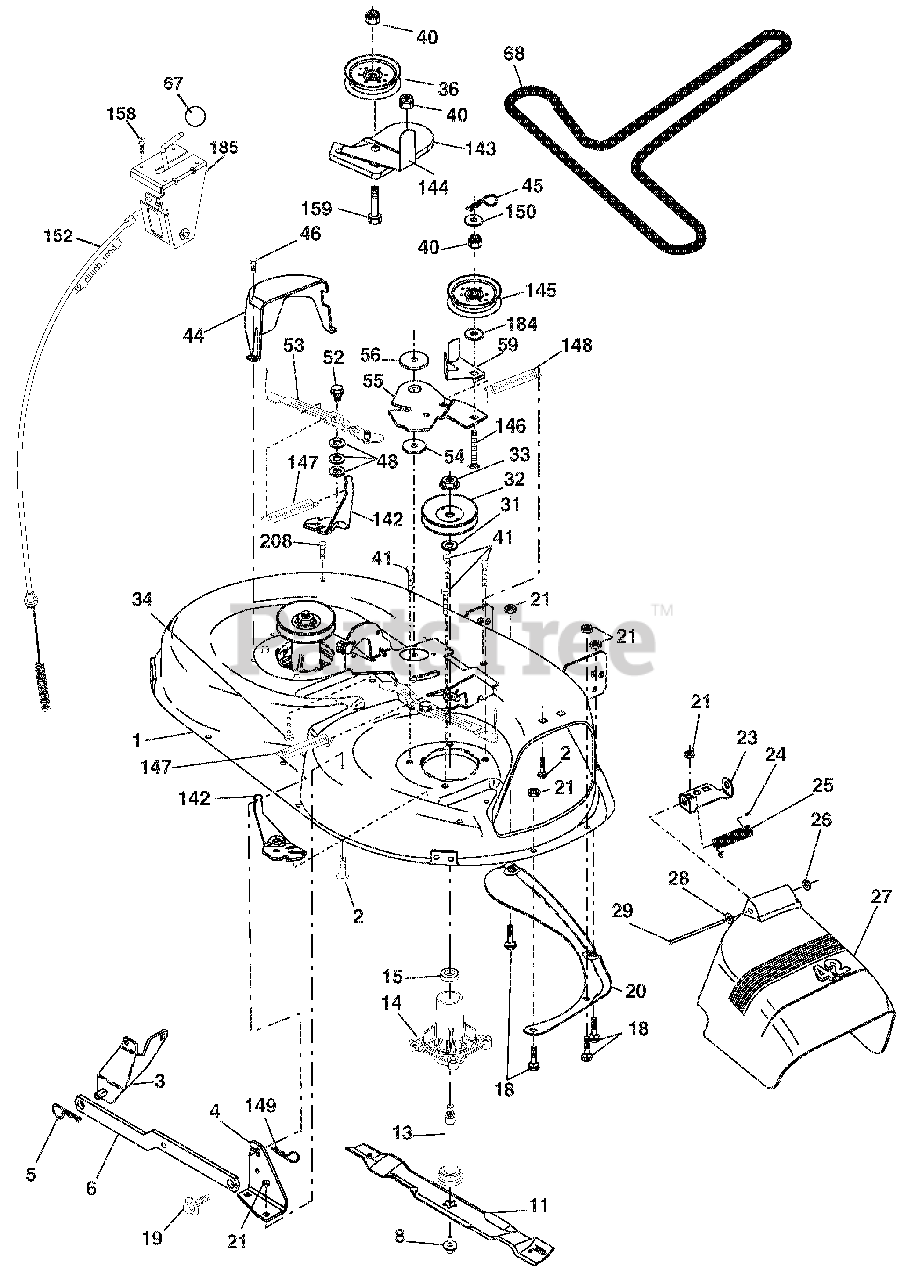

936061 (960160028-00) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Mower Deck Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

Mower Deck Parts Diagram

  • Title

1

Ariens 21547429

MOWER DECK ASSEMBLY, 42"
(Superseded to 21547166)

$646.99

$

Usually ships in 4-12 days

0

2

Ariens 21547167

Bolt

$

$

Not available

3

Ariens 21547168

Bracket Asm Fr. Sway Bar 3/42

$12.99

$

Usually ships in 4-12 days

0

4

Ariens 21547169

Bracket Asm Deck 42" Sway Bar

$13.99

$

In Stock, only 1 left!

0

5

Ariens 21547907

RETAINER.SPRING

$

$

Not available

6

Ariens 21547171

Bar Sway Deck

$

$

Not available

8

Ariens 21546301

BOLT/WASHER ASM.7/16-20.UNF

$8.99

$

Usually ships in 4-12 days

0

11

Ariens 21546095

BLADE.MOWER.42"HI LIFT PREMIUM

$20.99

$

In Stock, Qty 20+

0

13

Ariens 21546300

SHAFT ASM.MNDRL.N/GREASEABLE38
(Superseded to 21549012)

$56.99

$

In Stock, Qty 20+

0

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$56.99

$

In Stock, Qty 20+

0

15

Ariens 21546046

BEARING.BALL.MANDREL
(Superseded to 05418800)

$9.49

$

In Stock, Qty 20+

0

18

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

19

Ariens 21547176

Bolt, Shoulder

$6.49

$

Usually ships in 4-12 days

0

20

Ariens 21546144

BAFFLE.VORTEX.42.STD/HEAVY DTY

$

$

Not available

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 21547177

Bracket, Deflector Mower 42"

$

$

Not available

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$4.99

$

In Stock, Qty 20+

0

25

Ariens 21547908

SPRING.TORSION

$7.99

$

In Stock, only 2 left!

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 21547909

SHIELD
(Superseded to 21547178)

$39.99

$

In Stock, Qty 10

0

28

Ariens 21547179

Washer 11/32 x 5/8 x 16 Ga.
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 21546081

ROD.HINGE.42/46"

$

$

Not available

31

Ariens 21546253

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Ariens 21546127

MANDREL.PULLEYS.42,44,50

$17.99

$

In Stock, Qty 20+

0

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$

$

Not available

34

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

36

Ariens 21547281

PULLEY, IDLER, FLAT

$

$

Not available

40

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 21548816

HEX HEAD BOLT

$4.99

$

In Stock, Qty 20+

0

44

Ariens 21547181

Guard, Mandrel, LH

$34.99

$

In Stock, Qty 10

0

45

Ariens 21547536

RETAINER SPRING
(Superseded to 21546739)

$

$

Not available

46

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

48

Ariens 21547182

Washer, Hardened

$6.49

$

Usually ships in 4-12 days

0

52

Ariens 21547183

Bolt, Shoulder 5/16-18 unc

$6.49

$

In Stock, only 1 left!

0

53

Ariens 21547184

Arm Assembly, Pad, Brake

$14.99

$

Usually ships in 4-12 days

0

54

Ariens 21546214

WASHER.FLAT.HARDENED

$6.99

$

Usually ships in 4-12 days

0

55

Ariens 21547185

Arm, Idler

$17.99

$

Usually ships in 3-10 days

0

56

Ariens 21547910

SPACER

$6.99

$

In Stock, only 2 left!

0

59

Ariens 21546103

GUARD.TUV.IDLER

$

$

Not available

67

Ariens 21547187

Knob Round

$7.99

$

In Stock, Qty 5

0

68

Ariens 21547188

V-Belt, 42" Mower

$43.99

$

In Stock, Qty 20+

0

142

Ariens 21547189

Anchor Spring Brake Mower

$7.49

$

Usually ships in 4-12 days

0

143

Ariens 21547190

Bracket Arm Idler 42"

$6.49

$

Usually ships in 4-12 days

0

144

Ariens 21547911

KEEPER.BELT
(Superseded to 21547303)

$9.99

$

In Stock, only 1 left!

0

145

Ariens 21547298

PULLEY IDLER FLAT

$28.99

$

In Stock, only 3 left!

0

146

Ariens 21547193

Bolt Carriage Idler

$

$

Not available

147

Ariens 21547194

Spring Extension

$5.99

$

In Stock, Qty 9

0

148

Ariens 21547195

Spring Return Idler

$5.99

$

In Stock, Qty 8

0

149

Ariens 21547196

Retainer Spring Yellow

$

$

Not available

150

Ariens 21546275

WASHER.9/32 X 3/4 X 10 GA.

$8.99

$

In Stock, only 1 left!

0

152

Ariens 21547197

Clutch Cable 42"

$45.99

$

In Stock, Qty 6

0

158

Ariens 21546210

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 4-12 days

0

159

Ariens 21547198

Bolt Rdhd Sqn 3/8-16 unc x 1-3
(Superseded to 06223800)

$3.99

$

In Stock, only 2 left!

0

184

Ariens 21547199

Washer 13/32 x 7/8 x 10 Ga.
(Superseded to 596134901)

$3.49

$

Usually ships in 3-10 days

0

185

Ariens 21547201

Head Asm Cable Clutch\

$53.99

$

In Stock, only 1 left!

0

208

Ariens 21546208

SCREW.THDROL.3/8-16X1/2.TYT.BL

$6.49

$

Usually ships in 4-12 days

0

- -

Ariens 21546299

MANDREL ASM.SUB.N-GRS.4 BOLT
(Superseded to 21549012)

$56.99

$

In Stock, Qty 20+

0

PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

Note: PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

$

$

Not available

- -

Ariens 21547912

REPLACEMENT MOWER

$787.99

$

Usually ships in 4-12 days

0
